A Lambretta that starts badly, misfires under load or gives you weak lighting often points to trouble on the stator side, not just a tired plug or poor carburation. If you are working out how to replace Lambretta stator components properly, the job is straightforward enough in a home workshop, but only if you pay attention to timing position, wire routing and flywheel clearance.
The stator sits behind the flywheel and handles ignition and, depending on setup, parts of the lighting and charging system. On a classic Lambretta, a failing stator can show up as intermittent spark, complete ignition loss, erratic running when hot, or lights that behave differently at different revs. Replacing it is not difficult, but getting it slightly wrong can leave you with a non-starting scooter or timing that is miles out.
Before you replace a Lambretta stator
It is worth checking that the stator is actually the fault. A sheared flywheel key, damaged LT coil, failed CDI on electronic systems, poor earth, brittle loom connections or a bad regulator can produce similar symptoms. If the engine ran acceptably and then died after heat soak, inspect the obvious ignition components first. If the wiring under the flywheel is oil-soaked, cracked or rubbing, or if the pickup and coils are visibly tired, replacement becomes the sensible route rather than trying to rescue worn parts.
You also need to know what ignition setup is fitted. Original points systems, Indian electronic ignitions and modern aftermarket kits do not all use the same stator plate, wiring colours or timing marks. Order by model and ignition type, not by guesswork. This matters because Lambretta parts are specific, and close enough is usually not good enough on electrical components.
Tools and parts you will need
For most stator replacements, you will need a flywheel puller that matches your flywheel, the correct holding tool or safe method of locking the engine, a socket set, screwdrivers, feeler gauges if you are working on points, and ideally a timing disc or strobe for final checking. A marker pen or scriber helps as well.
On the parts side, the job may call for more than the stator itself. If the old grommet is hard, replace it. If the wiring connectors are poor, renew them. If the flywheel key shows damage, fit a fresh one. This is the sort of work where reusing suspect small parts often creates the next fault.
How to replace Lambretta stator step by step
Start by isolating the scooter and making the work area clean. Remove the cowlings as needed for access and take off the flywheel cover. Before loosening anything behind the flywheel, inspect the existing wire route and take a few reference photos. It saves time later, especially if a previous owner has altered the loom.
Next, remove the flywheel nut. Hold the flywheel correctly rather than jamming fins or using crude methods that risk damage. Once the nut and washer are off, fit the proper puller and remove the flywheel. If it resists, do not lever behind it. The puller is there for a reason.

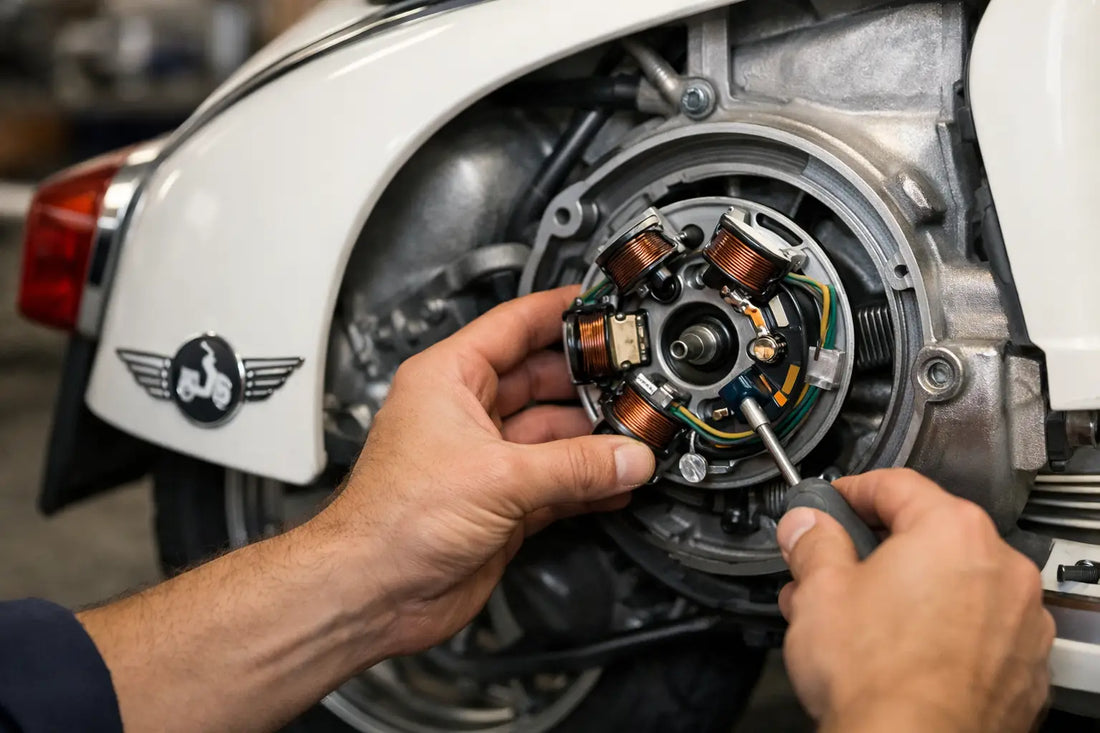

With the flywheel removed, you can see the stator plate. Before undoing it, mark its current position relative to the casing. A simple scribed line or paint mark gives you a baseline. It is not a substitute for proper timing, but it helps you fit the new plate close to where the old one sat.
Now disconnect the stator wiring from the junction box or loom side, depending on the setup. Feed the wires free carefully. Then remove the stator retaining screws and lift the old stator plate away. Check the casing face for dirt, damaged threads or signs the old plate has been moving.
Offer the new stator into place and compare it with the old one before tightening anything. Check pickup position, coil layout, wire colours and grommet arrangement. If anything looks different, stop there and verify application. Plenty of ignition headaches start with a part that almost fits.
Feed the new wires through the casing neatly, making sure the grommet seats properly. This point matters more than many expect. If the wires are pinched, stretched or left loose where the flywheel can catch them, the stator may fail almost immediately. Fit the plate onto its mounting holes, line it roughly to your original marks, and tighten the screws evenly so the plate sits flat.
Reconnect the stator wiring in the correct order. Keep connections clean and secure. On older scooters, junction box terminals and bullet connectors are common weak points, so there is no sense fitting a fresh stator and leaving corroded joins in place.
Timing is the part that makes or breaks the job
If you want to know how to replace Lambretta stator assemblies properly, timing is the real answer. Mechanical fitting is only half the work. The ignition timing must be checked and adjusted for your engine specification.
If you are refitting the same type of stator to an otherwise unchanged engine, your original marks may put you close enough for first start. That does not mean close enough to leave alone. Different stator plates, pickups and flywheels can vary slightly. Even a small change can affect starting, heat and performance.
Set the piston position and timing marks according to your engine setup. Standard engines, tuned top ends and different electronic kits can all require different advance figures. That is why copying another scooter's setting is a poor shortcut. Use a degree disc if you are building from scratch, then confirm with a strobe once the engine runs.
To advance or retard timing, loosen the stator screws and rotate the plate slightly. Small movements make a difference. Tighten it again, recheck, and repeat until it is where it should be. On a points system, you also need to set the points gap correctly, because points gap and timing affect one another.
Common mistakes when replacing a Lambretta stator
The biggest mistake is assuming all ignition faults are stator faults. The second is fitting a new stator and skipping the timing check. After that, most problems come from poor installation habits rather than the part itself.
One common issue is trapped wiring under the flywheel or poorly seated grommets that let oil and dirt into the stator area. Another is overtightening small screws into older casings. Stripped threads create a different repair altogether. There is also the habit of reusing a damaged woodruff key, which can throw timing out even if the stator has been fitted perfectly.
Compatibility catches people out too. A stator for one electronic kit may not play nicely with a different flywheel, CDI or regulator. If the scooter has had years of mixed upgrades and repairs, identify the whole ignition system before ordering parts. Specialist suppliers such as Scooter Vista stock model-specific Lambretta electrical components for exactly this reason.
First start and final checks
Before putting the flywheel cover back on, turn the engine over by hand and listen for any contact. The flywheel should rotate freely without touching wiring or stator components. If there is interference, stop and fix it before starting the engine.
Once it starts, listen for clean pickup and steady idle. Check spark quality if needed and test the lights if the stator also supports the lighting circuit on your setup. Then use a strobe to confirm timing at running speed. Do not rely on ear, guesswork or the fact that it starts first kick.
After a short ride, recheck fasteners and inspect for any sign that the wires have moved or the grommet has not sealed properly. Heat and vibration often show up installation faults quite quickly.
When replacement is not enough
Sometimes a new stator improves nothing because the real fault sits elsewhere. A weak CDI, poor earth path, damaged loom, failing regulator or tired flywheel magnets can mimic stator problems. On tuned engines, poor timing settings can also be mistaken for electrical component failure. If the symptoms remain after replacing the stator and confirming timing, work through the rest of the ignition system logically.
That is the sensible way to approach classic Lambretta electrics. Fit the correct part, route it cleanly, set the timing accurately, and resist the urge to rush the last ten per cent of the job. That final check is usually the difference between a scooter that runs properly and one that comes back onto the stand next weekend.
