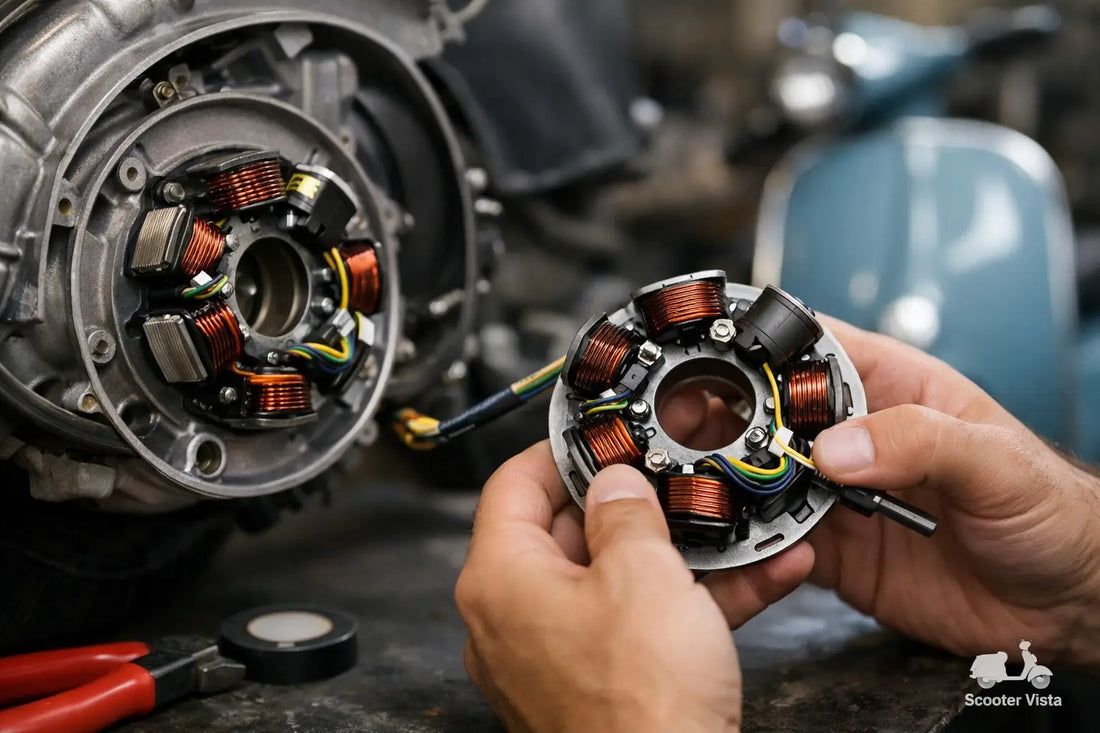

If a Vespa has spark one minute and nothing the next, or the lights behave as though they have a mind of their own, the stator wiring is one of the first places worth checking. Knowing how to wire Vespa stator assemblies properly is not just about getting the engine started - it is about making sure ignition, charging and lighting all work together as they should.
On classic Vespas, stator wiring is rarely difficult in principle, but it is easy to get wrong in practice. Age, faded insulation, mixed looms, pattern replacement parts and previous owner repairs can all turn a simple job into a fault-finding session. The safest approach is to identify exactly which stator, flywheel and ignition system you are working with before a single wire is connected.
Before you wire a Vespa stator
The first job is to establish whether you are dealing with points ignition or electronic ignition. That sounds obvious, but many scooters have been converted over the years, and what the frame number suggests is not always what is fitted on the engine. A points stator and an electronic stator do different jobs, use different components and route wires differently.
A points stator will usually include contact breaker points and a condenser. An electronic stator will instead use a pickup and CDI-compatible source coils. If you wire an electronic stator as though it were a points setup, or the other way round, you will chase faults that are not faults at all.
It also matters whether the scooter is 6V or 12V, whether it runs batteryless AC lighting or has a battery circuit, and whether the loom still follows the original factory colour coding. On an untouched scooter, colour codes can be a useful guide. On a rebuilt scooter with replacement wiring from different sources, colours should only be treated as a clue.
How to wire Vespa stator systems by type
There is no single answer to how to wire Vespa stator units because Vespa used several electrical layouts across smallframe and largeframe models. The method stays broadly similar, though. You identify each output from the stator, route it to the correct downstream component, then test continuity and earth before the flywheel goes back on for good.
Points ignition stator wiring
On a traditional points stator, one wire typically feeds the ignition circuit and another or several others feed the lighting circuit. The ignition-side wire runs from the stator to the low tension side of the external ignition coil, with the circuit then relying on the points and condenser to trigger spark.
The lighting wires run to the loom and then to the switchgear, regulator if fitted, and bulbs. Some systems earth directly through the stator plate and engine cases, so a clean mounting face matters just as much as the wire itself. Paint, corrosion or loose screws can create intermittent faults that look like bad coils.
The kill circuit on many points models works by grounding the ignition feed. If that wire is trapped, rubbed through or connected incorrectly, the scooter may have no spark at all. That is why it helps to leave the kill wire isolated during initial testing, then connect it once spark has been confirmed.
Electronic ignition stator wiring
An electronic Vespa stator usually sends one wire to the CDI for the ignition source, one from the pickup, one earth, and one or more additional wires for lighting and charging output. On many systems, the CDI connections must be exact. Swap the pickup and source wires, or lose the earth, and the engine will not start.
The lighting output then runs separately to the regulator and loom. On some setups this is straightforward, while on others there are extra feeds for battery charging or split AC and DC circuits. That is where model-specific diagrams matter. A PX electronic setup is not the same as every PK or conversion stator, even if the backplate looks broadly similar.
Identify the wires before connecting anything
The quickest way to make a mess of a stator job is to trust wire colour alone. Heat, oil and age can darken insulation, while replacement stators may use colours that differ from original Piaggio wiring. A multimeter is the better tool here.
Start by identifying earth. On many stators, one wire or the stator plate itself will be common to ground. Then identify the ignition source coil and pickup leads if electronic, or the ignition feed from the points circuit if contact breaker. Lighting outputs can then be separated by continuity checks and by comparing where they terminate on the stator.
If the old stator was still working, take clear photographs before removal and label each wire as it comes off. If you are dealing with a scooter that arrived in boxes or with a loom of uncertain origin, work from the stator outwards rather than from the handlebar switch back.
Common mistakes when wiring a Vespa stator
Most stator wiring faults come down to a handful of problems. Wires are pinched where they pass through the rubber grommet. Bullet connectors are loose inside the junction box. Insulation has gone brittle and cracks once bent. Or the stator has been fitted correctly, but the loom, regulator or CDI does not match the system.
Another common issue is poor earthing. A clean engine casing, secure stator screws and sound terminals matter more than many owners expect. You can have a perfectly good stator and still get weak spark or unstable lighting if the earth path is poor.
There is also the question of aftermarket versus original-spec parts. Some replacement stators work well, others need minor alterations to connector type, wire length or routing. That does not make them wrong, but it does mean you should compare the part physically with the old unit before fitting. If the loom connector arrangement differs, deal with that properly rather than forcing a temporary join.
Fitting and routing the wires properly
Once the wires are identified, route them neatly through the stator exit and grommet with enough slack to avoid tension, but not so much that they can chafe against the flywheel. This matters. One trapped wire can short to ground as the engine vibrates and leave you with an intermittent fault that only appears once the side cowl is on and the scooter is hot.
Inside the junction box, keep connections clean and tight. If terminals are oxidised, replace them. If the rubber grommet is hard or split, replace that as well. It is a cheap part, but it protects the wiring from one of the most common failure points on a Vespa engine.
When fitting the stator plate itself, align it to the original timing marks if you have them, but do not assume those marks are accurate after decades of engine work. Stator wiring and ignition timing are separate issues, but they meet at the same component. If the wiring is right and the timing is out, the scooter can still run badly or not at all.
Testing after wiring
Before the flywheel goes back on permanently, check continuity, check for shorts to earth where there should be none, and inspect every wire run once more. After assembly, test for spark first. Once spark is confirmed, test lighting and charging circuits separately.
If the engine starts but the lights fail, the ignition side of the stator may be fine while the lighting coil output, regulator connection or loom feed is not. If the lights work but there is no spark, focus on the CDI or coil feed, pickup, kill wire and earth path. Splitting the system into ignition and lighting makes diagnosis much quicker.
It is also worth remembering that not every no-spark fault is a stator fault. A failed CDI, bad external coil, faulty condenser on points models, sheared flywheel key or damaged loom can produce similar symptoms. Good testing avoids unnecessary parts swapping.
When a wiring diagram is essential
If the scooter is standard and complete, an experienced owner can often wire a stator by inspection and testing. If the scooter has had an engine swap, 12V conversion, electronic conversion or mixed switchgear, a proper diagram stops guesswork. That is especially true where imported scooters or non-original looms are involved.
For restorers and workshop users, the sensible route is to match every component by system: stator, flywheel, CDI or coil, regulator, loom and switchgear. Mixing parts can work, but only if the outputs and wiring paths are understood. Buying model-specific electrical parts from a specialist supplier saves time because compatibility is half the battle on classic scooter electrics.
A well-wired Vespa stator should disappear into the background once the job is done. The engine starts cleanly, the lights behave properly, and you can get on with riding or finishing the rebuild instead of chasing another electrical gremlin in the garage.
