A Lambretta that starts reluctantly, blows bulbs, loses its horn or gives you intermittent lights usually has a wiring problem somewhere deeper than the switches or regulator. In many cases, the fix is not another quick repair at the headset or a fresh connector at the rear light. It is a proper lambretta electrical wiring loom, matched to the model, voltage and ignition set-up, then fitted cleanly from front to back.
On a classic Lambretta, the loom is not just a bundle of wires hidden inside or around the frame. It is the core route for ignition feed, lighting circuits, horn, brake light and charging functions, and if it has been cut, patched, trapped or modified too many times, reliability drops quickly. That matters whether you are restoring a scooter to standard specification or simply trying to make a regular rider dependable again.
Why a lambretta electrical wiring loom matters
A tired loom causes faults that are easy to misread. Dim lights can look like a stator issue. A dead horn can point you towards the switch. Intermittent running may send you to the carburettor, Spark Plug or CDI before you ever look at the wiring. The trouble is that old insulation hardens, connectors corrode and previous owners often add their own fixes with whatever wire happened to be on hand.
A correct loom brings the electrical system back to a known standard. That gives you a clean baseline for fault finding and removes the guesswork created by decades of repairs. On a restoration, that is the difference between a neat build and a scooter that needs the legshields off again two weeks later.
There is also a practical point around safety. Poor earths (especially with SIP VAPE ignitions), exposed wire and incorrect routing can lead to short circuits, damaged bulbs and heat build-up in the harness. Classic scooters are simple compared with modern machines, but that does not mean the wiring can be treated casually.
Choosing the right Lambretta electrical wiring loom
Fitment is where many buyers go wrong. A loom needs to suit the exact scooter model and the electrical specification you are running now, not necessarily the one the scooter left the factory with. A machine that began life on points ignition may now be running an electronic stator and regulator. A 6V set-up may have been converted to 12V. Some scooters have battery systems, some do not. Those differences matter.
The first check is model compatibility. Lambretta Series 1, 2 and 3 scooters can differ in wire length, junction points and terminal layout. SX, TV, LI and GP models may also have detail differences depending on market, year and whether the scooter is standard or modified. Even where a loom will physically fit around the frame, the connection points may not match your bulb holder junction box, lighting units, brake light switch or regulator.
The second check is ignition and charging type. If your scooter has been upgraded to electronic ignition, the loom may need to work with a regulator and a different stator output. If you are staying original, the loom should reflect that. There is no value in buying a high-quality harness if it still leaves you adapting half the terminals to suit the rest of the system.
Then there is quality. On a classic scooter, poor wire gauge, weak insulation and cheap connectors create faults before the scooter has even had a proper season on the road, the same goes for light switches, don't let them send you down a rabbit hole! A loom should have sensible wire thickness, clean and correct colour coding and terminals that are properly crimped or prepared for secure fitting. For anyone building a scooter to last, the cheapest option is rarely the best option.
Original specification or modified set-up
This depends on what sort of Lambretta you own and what you expect from it. If you are restoring a scooter to factory-style trim, the loom should follow original circuit layout and connector style as closely as possible. That keeps the electrical system true to the period and makes the rest of the build more straightforward. We even have the options today to hide certain modern electrical items in empty original looking batteries and rectifiers.
If the scooter is a rider with upgrades (most of us), the loom needs to suit the actual build. Many owners now run electronic ignition, improved lighting or different switch gear for things like pathfinders. In that case, originality matters less than compatibility. It is better to fit a loom built for the components you are using than to force an original-type loom into a modified system and spend hours adapting it. The Scootopia simple wiring Looms are great so are the MB Scooters simple looms with the added front brake light switch and fuel tap gauge .
This is one of those jobs where honesty about the build saves time and money. A scooter with a modern ignition set up and LED or H4 lighting set up should be treated as a modified electrical system, even if the rest of the machine still looks standard.
Signs your loom needs replacing
Some looms clearly need changing because the insulation is split, connectors are green with corrosion or sections have been twisted together and taped. Others are less obvious. The common signs are repeated blown bulbs, weak or wandering lights, horn problems, poor charging, intermittent cut-outs and faults that move around when the bars are turned.
Another giveaway is evidence of multiple old repairs. If the harness has mixed wire colours, non-standard joins or random connectors, fault tracing becomes harder every time someone works on the scooter. At that point replacement is usually more sensible than trying to rescue a loom that has already had several lives.
A loom can also be wrong rather than worn out (indian looms). It is not unusual to find a scooter fitted with a harness from a different model or an improvised set-up built around whatever parts were available in the 1980s. It may function after a fashion, but it often leaves you chasing unexplained issues.

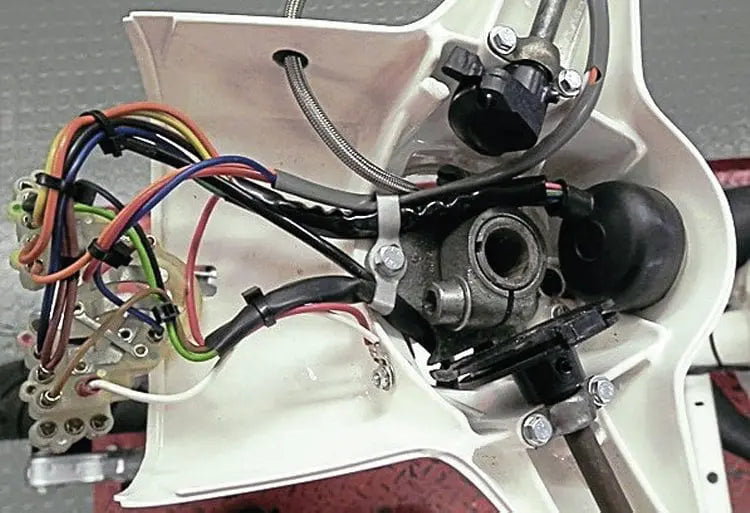

Fitting a lambretta electrical wiring loom properly
Installing a loom is not technically complex, but it does need patience. Pulling it around the frame without planning the route is how wires get chafed or trapped. The better approach is to check every connection point first, compare the loom to the scooter layout and make sure grommets and clips are to hand before the final fitment.
Start by confirming the scooter specification. Check the stator 4 or 6 pole, 12v, A.C. or D.C.), regulator, switches, horn, brake light switch and lamp holders. If one part is non-standard, account for it before fitting the loom. It is far easier to change course on the bench than once the harness is around the frame.
When routing the loom, keep it clear of sharp edges and avoid any tight bends around the headset and how tight you strap it to the frame (avoid stainless steel cable ties as they can cut into the loom over time). This is where damage commonly starts. Rushing this stage often causes the faults the new loom was meant to cure.
Once installed, test each circuit methodically. Do not assume the system is correct because the wires are new. Check headlamp functions, pilot, rear light, brake light, horn, ignition cut-out and charging performance (if converting from 6v to 12v you may end up with no side lights. Brown and purple wires will need to be put together) If your scooter uses a battery, test that side of the system separately. Good installation is as much about verification as it is about fitment.
Common mistakes to avoid
The biggest mistake is buying on appearance or cost rather than specification. Two looms may look broadly similar but be wired differently for voltage, switch arrangement or ignition type. The next most common mistake is reusing poor old connectors and earth points with a new harness. A fresh loom cannot compensate for dirty terminals, corroded bulb holders or bad grounding.
It is also worth resisting the temptation to alter wire colours or improvise routes. Standard colour coding makes future fault finding much easier, whether you are doing the work yourself or handing the scooter to a mechanic later.
What to check before buying
Before ordering, identify the exact model, current ignition type, voltage set-up and whether the scooter uses a battery etc. Check the switch gear and lighting arrangement as well, especially if the scooter has had upgrades over the years. If you are restoring from boxes, this matters even more because mixed parts can easily lead to the wrong loom choice.
For many owners, buying from a specialist parts supplier is the safest route because the product listing will usually be arranged by scooter type and subsystem, rather than lost among generic motorcycle electrics. That makes it easier to match the harness to a real Lambretta application and avoid expensive trial and error.
If your scooter is meant to be used, not just displayed, the loom is not the place to cut corners. A well-matched harness gives you reliable lights, predictable ignition behaviour and a much better base for every other electrical component on the machine.
Get the loom right and the rest of the electrical system starts making sense again, which is exactly what you want when the scooter is built to be ridden rather than endlessly chased around the garage.
