A leaking exhaust on a Lambretta rarely stays a small problem for long. What starts as a ticking noise at the stub or a smear of oil around the joint can turn into poor sealing, extra vibration and the sort of running issues that send you chasing faults elsewhere. In many cases, the fix is straightforward - fit a decent  Lambretta exhaust gasket and make sure every part of the joint is clean, flat and properly tightened.

Why the exhaust gasket matters on a Lambretta

 Lambretta exhausts rely on a sound seal at the cylinder outlet. If that seal fails, hot gases escape before they should, which affects more than noise alone. You can end up with carbon staining around the port, a sharper exhaust note, and on some engines a noticeable drop in clean low-down running with extra air getting into the engine.

That matters even more on tuned or freshly rebuilt motors. A standard touring setup may tolerate a slightly tired joint for a while, but a performance engine with higher exhaust temperatures tends to expose weak gaskets quickly. A small leak that seems harmless on the stand can become obvious once the scooter is under load.

A proper gasket also saves time. Reusing old gaskets, mixing random washers, or fitting whatever is in the toolbox often means doing the same job twice. For owners and rebuilders who want a reliable result, model-correct exhaust sealing parts are simply part of doing the job properly.

 Series 1, 2 and 3 machines, later Indian-built variants, and tuned engine combinations do not always share the same arrangement. Some aftermarket exhausts also use slightly different flange or stub designs. The result is simple enough - one gasket is not automatically right for every Lambretta engine.

If you are working on a scooter that has changed hands a few times, never assume the exhaust is original to the motor. Plenty of Lambrettas are running with upgraded cylinders, non-standard manifolds or expansion systems fitted years ago. In those cases, checking what is physically on the scooter before ordering is more useful than relying on registration details alone.

Choosing the right Lambretta exhaust gasket

The first job is to match the gasket to the engine and exhaust type, not just the scooter badge. A Li, SX, TV or GP may now be running a different top end, and that is what determines the sealing face you are dealing with (standard, 42mm, RT, TS1 etc)

Start with the cylinder outlet and exhaust stub. Look at the diameter, the style of fastening and whether the current setup uses a crush-type gasket, flat gasket, ring or packing. Then check the clamp and retaining parts. If the joint has been leaking for some time, there is a fair chance the hardware has also suffered from heat cycles and corrosion.

Material quality is worth paying attention to. Cheap, soft gaskets can compress unevenly or break down faster when used with hotter-running engines. Better quality parts from established UK, Italian or German supply chains generally hold up better, especially on scooters that see regular road use rather than occasional shows.

There is always a trade-off between keeping costs down and avoiding repeat labour. For a simple refresh on a standard scooter, a basic but correct set may be all you need. For a rebuild, a tuned motor or an exhaust that is awkward to access once fitted, it usually makes sense to fit the best quality sealing parts you can get.

Signs your exhaust gasket needs replacing

Exhaust leaks on a Lambretta are usually fairly easy to spot once you know where to look. The most obvious sign is noise - a chuffing or ticking sound from the cylinder area, especially on startup or when blipping the throttle.

You may also see black carbon deposits around the exhaust port, clamp or stub. Fresh oily residue in that area is another clue, particularly on two-stroke engines where any escaping gas carries contamination with it. If the leak has been present for a while, the joint can become heavily sooted and difficult to clean.

Running symptoms vary. Some scooters will simply sound rougher, while others develop flat response at lower revs or become fussier to tune. It depends on how severe the leak is, what exhaust is fitted and whether the rest of the engine setup is already close to the edge.

It is also common to find gasket failure during strip-down rather than because of a major symptom. If the exhaust is coming off for other work, replacing tired sealing parts is sensible maintenance. Compared with the time involved in removing body panels, undoing seized fixings and lining everything back up, the gasket cost is minor.

Fitting tips for a better seal

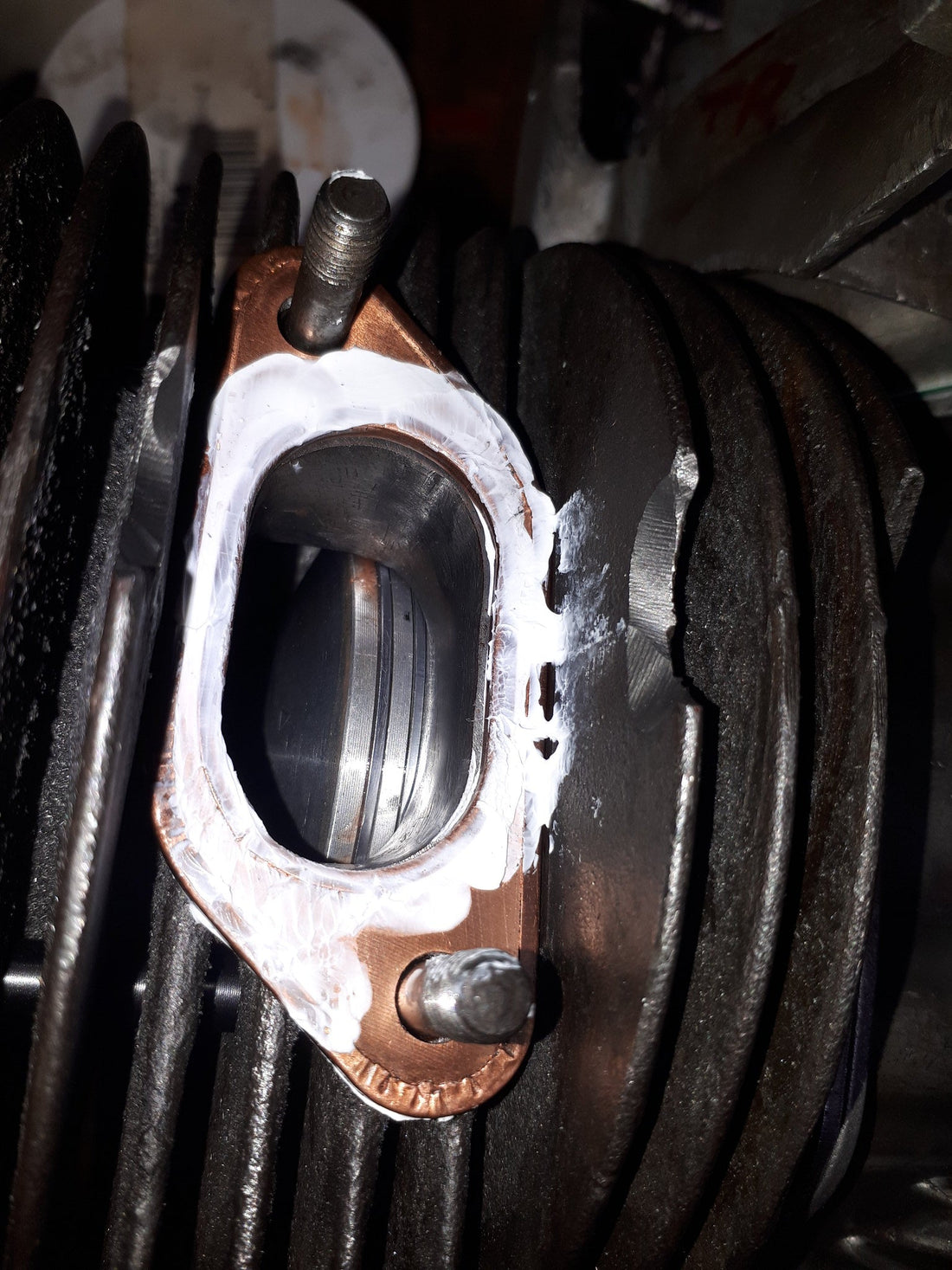

A new gasket will not compensate for poor preparation. Before fitting anything, clean the cylinder outlet and exhaust mating surfaces properly. Remove old gasket material, carbon build-up and any burrs that stop the faces sitting square. If the flange is warped or damaged, replacing the gasket alone may not cure the leak.

Dry assembly helps you check alignment before final tightening. Offer the exhaust up without forcing it, and make sure the system sits naturally on its studs. If you have to pull the pipe into place against tension, the joint is more likely to leak and the gasket will have a harder life.

Tighten fasteners evenly and avoid overdoing it. Too loose and the joint will blow. Too tight and you can distort the flange, crush the gasket unevenly or damage threads in the cylinder area. On older scooters, those threads may already have had a hard life, so steady and even tightening is better than brute force.

After the first heat cycle, it is worth checking the joint again once the engine has cooled. New gaskets can settle slightly after initial use. A quick recheck often prevents the kind of minor leak that develops after the first ride.

Common problems that are not just the gasket

It is easy to blame the gasket when exhaust sealing is poor, but the real fault is not always in the sealing material itself. Worn clamps, stretched studs, damaged threads and cracked stubs can all mimic gasket failure.

Poor exhaust fitment is another regular issue. Some aftermarket systems fit well straight out of the box, while others need careful alignment to avoid side-loading the joint. On a Lambretta with engine movement, tired mounts or a badly positioned bracket can put extra stress on the exhaust connection every time the scooter is ridden.

Cylinder and exhaust combinations also matter. Tuned barrels and performance pipes do not always copy original dimensions exactly. If the stub engagement is shallow or the flange face is not quite right, you may need more than a standard replacement gasket to sort the issue properly.

That is why specialist parts supply makes a difference. If you are buying by engine type, model and exhaust application rather than picking generic bike gaskets from a mixed catalogue, you are far more likely to get components that actually suit the job. For Lambretta owners trying to keep road scooters dependable or rebuild projects moving, that saves hassle.

When to replace the full set rather than one part

For rebuilds and engine work, fitting a complete gasket set is the cleaner approach. Everything starts fresh, compatibility is easier to manage, and you are not mixing old compressed parts with new sealing material.

For anyone maintaining a classic scooter properly, the exhaust joint is not an area to guess at. Choose the gasket that matches the engine and exhaust you actually have, fit it to clean mating faces, and treat any leak as a sign to inspect the whole joint rather than one part in isolation. That usually leads to a quieter, cleaner-running Lambretta and one less job to revisit after the next ride.
