A Practical Lambretta Engine Rebuild on a Sensible Budget
Not every Lambretta engine that comes through our workshop leaves with a high-end performance setup like a BGM RT Kit.
For this particular build, the customer wanted something different: a reliable, cost-effective engine that could handle regular town riding without constant worry. No over-the-top tuning—just a solid, dependable setup.
Initial Strip-Down: A Tough Start
From the outset, it was clear this wouldn’t be a straightforward rebuild.
- The mag housing was seized into the casing—never a good sign. The only way to remove it was by chain drilling it out.
- The piston was completely seized in the bore and refused to budge. In the end, we had to cut the crankshaft in half to free everything.
- To add to the challenge, all four cylinder studs were seized and required heat to remove safely.
It’s the kind of job that reminds you why patience (and the right tools) matters.
Cleaning & Preparation
Once everything was stripped and the damaged components removed, the casings were thoroughly cleaned and prepped. This stage is critical—there’s no point rebuilding an engine if the foundation isn’t right.
With clean casings and fresh surfaces, we could finally move on to reassembly.
Gearbox & Transmission Setup
For the gearing, Dave supplied a GP200 Gearbox.
A number of internal components needed replacing, so we installed:
- A MEC EUR 46-tooth crown wheel
- A 19-tooth front sprocket
This gave us a final drive ratio of 4.84, which is ideal for this type of build—balanced for town riding with enough flexibility for open roads.
The chain casing was then fitted and checked carefully, particularly for any kickstart shaft interference with the clutch. Thankfully, everything cleared perfectly.
Cylinder Kit & Core Components
For the top end, we chose the Scootopia 185 Kit.
These kits are excellent value for money and perform really well for everyday riders. They’re not built for outright speed—but that’s not the goal here. Reliability and usability come first.
To match, we fitted:
- A Scootopia Crankshaft
- Full set of Scootopia engine bearings
- Rolf oil seals
This combination has become our go-to for budget-conscious builds that still need to last.
Carburetion & Exhaust
The customer supplied a Dellorto 22mm Carburettor, which pairs nicely with this setup.
For the exhaust, we installed a SIP Series 2 Silent Exhaust. These are impressively quiet—perfect for town use where you don’t want unnecessary noise.
Ignition & Final Setup
We fitted a static Scootopia Stator Plate and set the timing to 18 degrees.

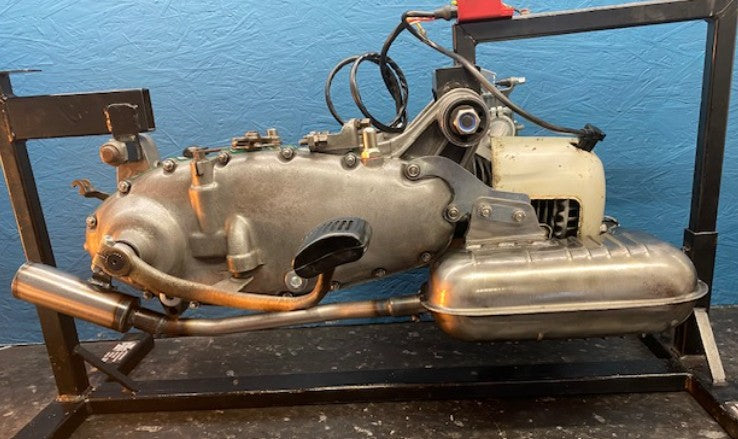

With everything assembled, the engine fired up cleanly and ran exactly as expected—smooth, responsive, and ready for the road.
Final Thoughts
If you’re a town or city rider looking for a dependable Lambretta engine rebuild, this kind of setup is hard to beat.
- Sensible cost
- Proven components
- Strong reliability
It’s not about chasing maximum performance—it’s about building an engine you can trust every time you kick it over.
