A headlamp that brightens only with revs, a horn that has gone quiet, or a spark that disappears once the engine is warm is rarely a mystery on a classic Vespa. It is usually a circuit with a poor earth, tired connection or component that has reached the end of its working life. This Vespa electrical faults guide sets out a sensible fault-finding order, so you can test what is fitted before replacing parts at random.
Classic Vespa electrics are straightforward compared with modern motorcycles, but they are not all wired alike. A six-volt points-model smallframe has different demands from a later 12-volt PX with electronic ignition, battery circuit and indicators. Check the wiring diagram for your exact model and year before moving wires or ordering electrical components. Previous repairs, non-standard switches and conversion kits can alter the original arrangement considerably.
Start With the Fault, Not the Parts
First establish whether the fault affects ignition, lighting, charging, or more than one circuit. If the scooter starts and runs cleanly but the lights fail, concentrate on the stator lighting coils, regulator, loom, switchgear, bulbs and earths. If the lights work but there is no spark, the ignition circuit is the priority.
When both spark and lights are absent, look first at the connections shared by the stator and loom. A damaged stator exit cable, loose junction box connector or chafed wire beneath the flywheel cowl can interrupt several functions at once. Do not assume the stator has failed before inspecting these accessible areas.

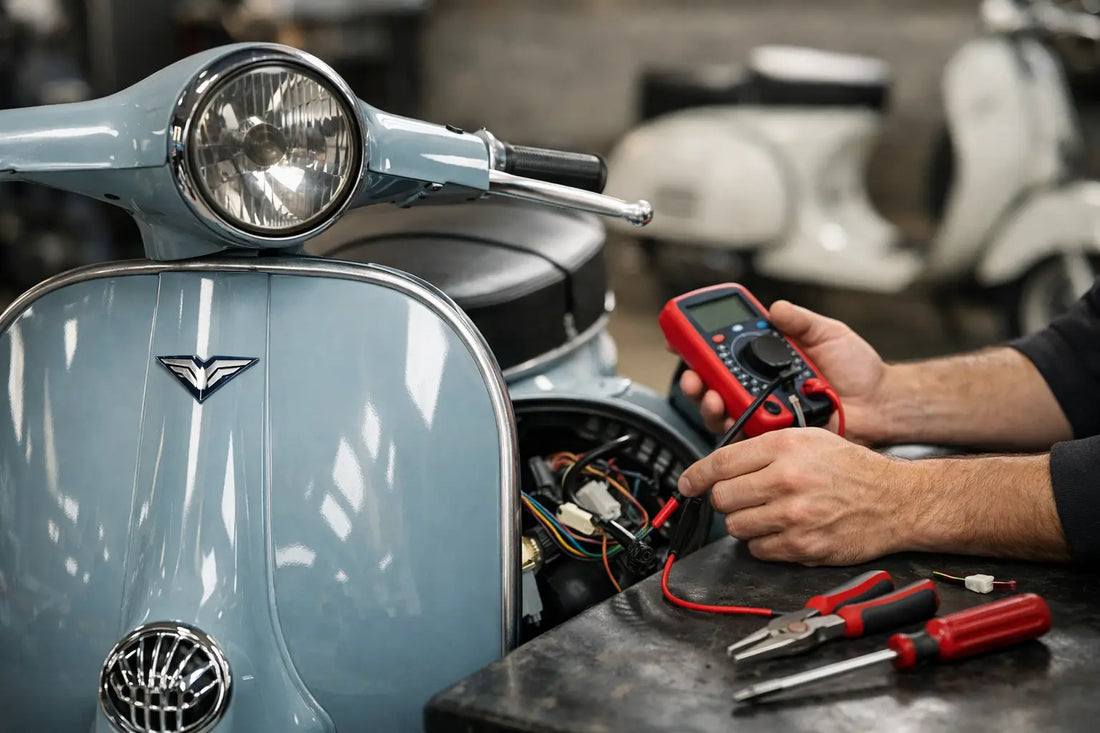

A basic multimeter, a test lamp, continuity lead, flywheel puller and a clean wiring diagram will cover most diagnosis. A multimeter is useful, but it can mislead if used without context. Continuity only proves that a wire is not completely broken. It does not prove that a connection will carry current reliably under vibration or heat.
Vespa Electrical Faults Guide: Check the Basics First
Earths and connectors
Bad earths cause an extraordinary number of classic Vespa electrical faults. Paint, corrosion, loose fasteners and oxidised terminals introduce resistance where the circuit expects clean metal contact. The engine is often part of the return path, so verify the engine-to-frame earth strap where fitted, as well as the headlamp, rear light and regulator mounting points.
Disconnect each suspect bullet connector or screw terminal, inspect for green corrosion or heat damage, clean it properly and refit it tightly. A connector that looks serviceable from outside may have a weak crimp hidden beneath its sleeve. Replace loose bullets, brittle insulation and cracked terminal blocks rather than trying to preserve every old component.
Do not rely on the scooter frame as an earth if the relevant circuit was designed with a dedicated earth wire. This matters particularly on restored machines with fresh paint or powder coating. Running a temporary test earth from the component body to a known clean engine or frame point is a quick way to prove the fault.
Bulbs, holders and switches
Use bulbs with the correct voltage and wattage. On an unregulated or poorly regulated AC system, fitting an incorrect bulb can alter the electrical load enough to produce dim lamps at low speed or repeated bulb failure at higher revs. A missing bulb may affect other lamps on the same circuit, so test with the full specified set installed.
Check bulb holders for weak springs, corroded contacts and distorted bayonet slots. At the handlebar, inspect the light and kill switches carefully. Old grease can harden, contacts can burn, and the small internal springs can go missing. Clean contacts lightly and confirm the switch is making and breaking the connection shown on the wiring diagram.
Battery and charging circuits
Where a Vespa uses a battery, test it before condemning the charging system. A battery can show 12 volts at rest yet collapse when the horn, brake light or starter circuit is loaded. Charge it fully, check terminal tightness and test voltage under load.
With the engine running, measure charging voltage at the battery terminals and compare it with the specification for the system fitted. A reading that stays at battery voltage may point to a failed regulator, faulty stator charging coil, poor earth or broken feed wire. Excessive voltage is equally unwelcome, as it can cook a battery and shorten bulb life.
Finding Ignition Faults on Points and Electronic Systems
A no-spark fault should be approached from the plug backwards. Start with a known-good spark plug of the correct grade, then inspect the cap and HT lead. A cap that is cracked, damp or loose can cause intermittent misfires that mimic a carburettor issue. Trim a few millimetres from the HT lead and screw the cap back on if the cable end is oxidised, provided the lead itself remains supple and sound.
On points ignition, remove the flywheel and inspect the points, condenser, LT wire and coil connections. Burnt, oily or pitted points need attention, but do not simply fit a new set without checking the reason. A failing condenser can cause rapid point burning, difficult hot starting and a weak, erratic spark. Set the points gap accurately, then set ignition timing properly. The gap alone is not a substitute for timing measurement.
The small insulated wire passing through the stator plate is a regular trouble spot. Its insulation can harden and split, allowing the wire to short against the stator plate or flywheel. Check it while flexing the wire gently. A fault that appears only when hot or when the suspension moves often comes from a fractured conductor rather than a visibly burnt coil.
On electronic ignition models, inspect the CDI, stator plug, earth path and kill-switch wire. The kill circuit stops the engine by earthing the ignition feed. A trapped or rubbed kill wire can therefore leave you with no spark at all. Disconnecting that wire temporarily at the junction is a useful test, but only do this with a clear plan for stopping the engine safely afterwards.
Resistance measurements can help compare stator coils against workshop figures, though readings vary by model and meter. Treat a reading well outside specification as evidence, not a final verdict. Heat-related failures may pass a cold resistance test and fail after a ride.
Lighting Problems: AC, DC and Regulation
Many classic Vespas run their lighting directly from stator AC output. At tickover, dim headlamps can be normal. At road speed, however, the lamps should brighten without flaring excessively or blowing bulbs. If brightness changes wildly with engine speed, investigate the regulator, bulb wattage, stator output and earth connections.
A single dead lamp is usually local: bulb, holder, earth, switch terminal or wire. Several dead lamps suggest a common supply issue. Work from the regulator or junction box towards the affected components, testing for voltage at each connection. This is quicker than dismantling every part of the loom.
Indicators on battery-equipped models add their own checks. If all indicators remain lit without flashing, suspect the flasher relay, weak battery or incorrect bulb wattage. If one side does nothing, look at the switch, side-specific wiring and the front and rear earths. LED conversions can work well, but they often require a compatible flasher relay and tidy polarity-aware wiring. Mixing LEDs with original thermal flashers commonly creates inconsistent results.
When to Repair the Loom and When to Replace It
A local repair makes sense when one wire has chafed near a connector, a terminal has corroded, or a damaged section is easy to access. Use correctly rated cable, sound crimp terminals and heat-shrink where appropriate. Match wire colours to the diagram where possible. It saves time for the next owner and makes future fault-finding far less frustrating.
Replace the loom when insulation is brittle in several areas, multiple wires have been joined with unsuitable connectors, or a restoration has exposed the frame tunnel. Replacing one weak section in an otherwise original loom is sensible. Repeatedly patching a loom with cracked insulation and unknown alterations is false economy, especially on a scooter used regularly in wet British weather.
Before ordering, identify the exact Vespa model, ignition type, voltage, battery arrangement and whether indicators are fitted. These details matter more than outward similarity. Scooter Vista stocks model-specific electrical parts and loom components for classic Vespa work, helping avoid the common problem of fitting a nearly-right part that creates another fault.
Test Before Reassembly
Once the repair is complete, route wires away from sharp edges, heat and the flywheel. Refit grommets at every entry point, secure the loom without crushing it, and check steering movement does not pull on handlebar cables. Test lights, horn, brake light, indicators and engine stop function before replacing the legshield toolbox or closing the junction box.
Electrical work on a classic Vespa rewards patience more than guesswork. Make one change, test it, and keep the wiring diagram beside the scooter. A clean connection and the correct component are often all that stand between a reluctant old circuit and a Vespa that can be relied upon for the next run out.
