Vespa PX Electric Start Not Working? Common Problems & Recommended Fixes
If your Vespa PX electric start isn't working, don't immediately assume that the starter motor itself is faulty.
There are several components involved in the PX electric-start system, and a problem with any one of them can stop the starter motor from operating correctly.
The good news is that most electric-start problems can be diagnosed logically.
In this guide, we'll look at some of the most common reasons why a Vespa PX electric start motor isn't working, what symptoms you may see and the recommended fix for each problem.
This guide is aimed at Vespa PX electric-start models, including PX 125, PX 150 and PX 200 models, although electrical arrangements can vary between years and markets.
How Does the Vespa PX Electric Start System Work?
Before fault-finding, it helps to understand the basic starting circuit.
When you press the electric-start button, the small control circuit operates the starter relay. The relay then allows the high current from the battery to reach the starter motor.
The system can include:
- Battery
- Battery fuse
- Ignition switch
- Starter button
- Starter relay
- Starter motor
- Heavy battery cables
- Engine earth
- Wiring and connectors
Some PX models also use a starter protection relay, and the exact arrangement varies between models and years. Piaggio technical documentation, for example, identifies differences between PX 125 and PX 200 starter circuits.
This is why it's important to identify your particular PX before replacing parts.
First Question – What Does Your PX Do?
Before reaching for the tools, identify exactly what happens when you press the starter button.
Nothing happens
If there is no click and the starter motor doesn't move, investigate:
- Battery
- Fuse
- Ignition switch
- Starter button
- Safety/start-permissive switch
- Wiring
- Starter relay
You hear a click but the starter doesn't turn
Look at:
- Battery condition
- Battery terminals
- Engine earth
- Starter relay
- Heavy starter cables
- Starter motor
The starter turns very slowly
Check:
- Battery
- Battery terminals
- Earth cable
- Starter cable
- Starter motor
The starter spins but the engine doesn't turn
This points towards a problem with the starter motor engagement mechanism rather than simply an electrical supply problem.
It works sometimes and not others
Intermittent faults are often caused by:
- Loose connections
- Corrosion
- Poor earth
- Starter relay
- Starter button
- Wiring
- Battery condition
Problem 1 – The Battery Is Flat or Weak
This is one of the first things to check.
The starter motor requires considerably more current than the scooter's small electrical components.
A battery can therefore appear to have power but still be unable to provide enough current to turn the starter motor properly.
You may find:
- Lights or horn work
- The ignition comes on
- The starter clicks
- The starter turns very slowly
- The starter doesn't turn at all
A battery showing approximately 12 volts with no load doesn't necessarily prove that it is healthy.
Recommended Fix
Check the battery voltage and, ideally, check what happens to the voltage when the starter button is pressed.
If the voltage collapses significantly under load, the battery may need replacing.
Also check the battery terminals carefully.
They should be:
- Clean
- Tight
- Free from corrosion
Don't overlook the negative connection and engine earth.
Problem 2 – Poor Battery Connections
A perfectly good battery won't help if the electrical connection is poor.
The starter motor draws a large amount of current, so even a small amount of resistance at a connection can cause problems.
Check:
- Positive battery terminal
- Negative battery terminal
- Starter relay connections
- Heavy starter cable
- Engine earth
- Starter motor connection
Look for:
- Corrosion
- Loose nuts
- Damaged cables
- Frayed cable ends
- Dirty terminals
- Heat damage
Recommended Fix
Clean the terminals and connection points thoroughly.
Make sure the terminals are tight and that the cables are in good condition.
If a cable is damaged or the connections are badly corroded, replacing the affected cable may be the best solution.
Problem 3 – Poor Engine Earth
The starter motor needs a good electrical path back to the battery.
The engine earth is therefore extremely important.
A poor earth can cause:
- Slow starter motor
- Clicking starter relay
- Starter motor not operating
- Intermittent starting
- Electrical problems elsewhere
This is particularly worth checking on an older PX where connections may have become dirty or corroded.
Recommended Fix
Inspect the engine earth cable and its connection points.
Clean the contact surfaces and make sure the cable is securely attached.
If the cable is damaged, replace it.
A good earth is essential for reliable electric starting.
Problem 4 – Blown Battery Fuse
The PX electric-start system uses a battery circuit protected by a fuse.
If the fuse has blown, the starter circuit may not operate.
Don't simply replace the fuse and assume the problem is solved.
If it blows again, there is likely an underlying electrical fault.
Recommended Fix
Check the fuse and replace it with the correct rating.
Never fit a significantly larger fuse just to stop it blowing.
If the replacement fuse blows immediately, investigate the wiring for a short circuit or other fault.
Problem 5 – Faulty Starter Button
The starter button is another possible cause.
When you press the button, it should complete the control circuit that operates the starter relay.
A worn, dirty or damaged switch may fail to make proper contact.
Symptoms can include:
- Nothing happens
- Starter works intermittently
- Starter works if the button is pressed unusually hard
- Starter works after repeatedly pressing the button
Recommended Fix
Inspect the starter button and its wiring.
Check the switch for continuity when operated.
If the switch is worn or faulty, replace it.
On a restored PX, it is also worth checking the connections behind the headset.
Problem 6 – Start-Permissive / Safety Switch Problem
Some PX electric-start models use a start-permissive switch operated by the clutch lever.
This prevents the starter from operating unless the clutch lever is operated.
Piaggio technical documentation specifically identifies this circuit on PX models, with variations between different versions.
If this switch isn't operating correctly, pressing the starter button may do absolutely nothing.
Things to Check
Check:
- Clutch lever
- Switch position
- Switch operation
- Wiring
- Connectors
Recommended Fix
Make sure the clutch lever is correctly operating the switch.
Check the switch electrically and replace it if necessary.
Don't permanently bypass a safety device unless you fully understand the implications and are working in accordance with the correct wiring arrangement for the scooter.
Problem 7 – Faulty Starter Relay
The starter relay is responsible for switching the high-current supply to the starter motor.
A common symptom of a relay problem is:
You press the starter button and hear a click, but the starter motor doesn't turn.
However, a click doesn't automatically prove the relay is good.
The relay can mechanically click while failing to pass sufficient current through its contacts.
Recommended Fix
Test the relay and check the voltage reaching the starter motor when the button is pressed.
If the correct supply is reaching the relay but not being passed through to the starter motor, the relay may be faulty.
Replacing the starter relay is then the appropriate fix.
Problem 8 – Faulty Starter Protection Relay
Some PX models use an additional starter protection relay.
This is particularly relevant to certain PX 200 arrangements and later systems.
Piaggio's technical information shows the starter protection relay as part of the PX 200 circuit, while noting differences with PX 125 versions.
Recommended Fix
If your scooter is equipped with a starter protection relay, check:
- Relay connections
- Relay operation
- Wiring
- Supply voltage
If the relay is confirmed faulty, replace it with the correct type for your PX.
Problem 9 – Damaged or Corroded Wiring
Classic scooters are not young anymore.
A PX that has spent decades on the road may have had several repairs or modifications.
The wiring can suffer from:
- Corrosion
- Broken wires
- Loose connectors
- Previous repairs
- Incorrect connections
- Damaged insulation
- Poor-quality replacement terminals
The heavy cables supplying the starter motor are particularly important.
Recommended Fix
Follow the starting circuit from the battery through to the starter motor.
Check the wiring visually and electrically.
Don't just look for broken wires.
A wire can appear perfect externally while having a poor connection inside a terminal or connector.
Problem 10 – Faulty Starter Motor
If the battery, wiring, relay and earth are all good, the starter motor itself may be the problem.
Possible starter motor faults include:
- Worn brushes
- Dirty commutator
- Worn bearings/bushes
- Internal electrical fault
- Seized motor
- Excessive resistance
- Damaged internal components
A common symptom is:
The relay clicks, but the starter motor doesn't turn.
Recommended Fix
Check whether the correct voltage reaches the starter motor when the starter button is pressed.
If the starter is receiving the correct supply but doesn't operate, the motor needs further investigation.
Depending on its condition, it may be possible to refurbish it.
If the motor is badly worn or damaged, replacement may be the better option.
Problem 11 – The Starter Motor Turns Slowly
A slow starter motor doesn't necessarily mean that the motor itself is faulty.
Start with the simple things.
Check:
- Battery
- Battery terminals
- Engine earth
- Starter cable
- Starter relay
- Starter motor
A poor battery or high resistance in the cables can cause the same symptom as a worn starter motor.
Recommended Fix
Test the battery under load.
Then check the voltage available at the starter motor while the starter button is pressed.
If there is a significant voltage loss between the battery and starter motor, investigate the cables, connections and relay.
Problem 12 – The Starter Spins but Doesn't Turn the Engine
If you can hear the starter motor spinning but the engine isn't turning over, the problem is different.
The electrical system may actually be working correctly.
The problem is likely to be with the mechanical engagement between the starter motor and engine.
Recommended Fix

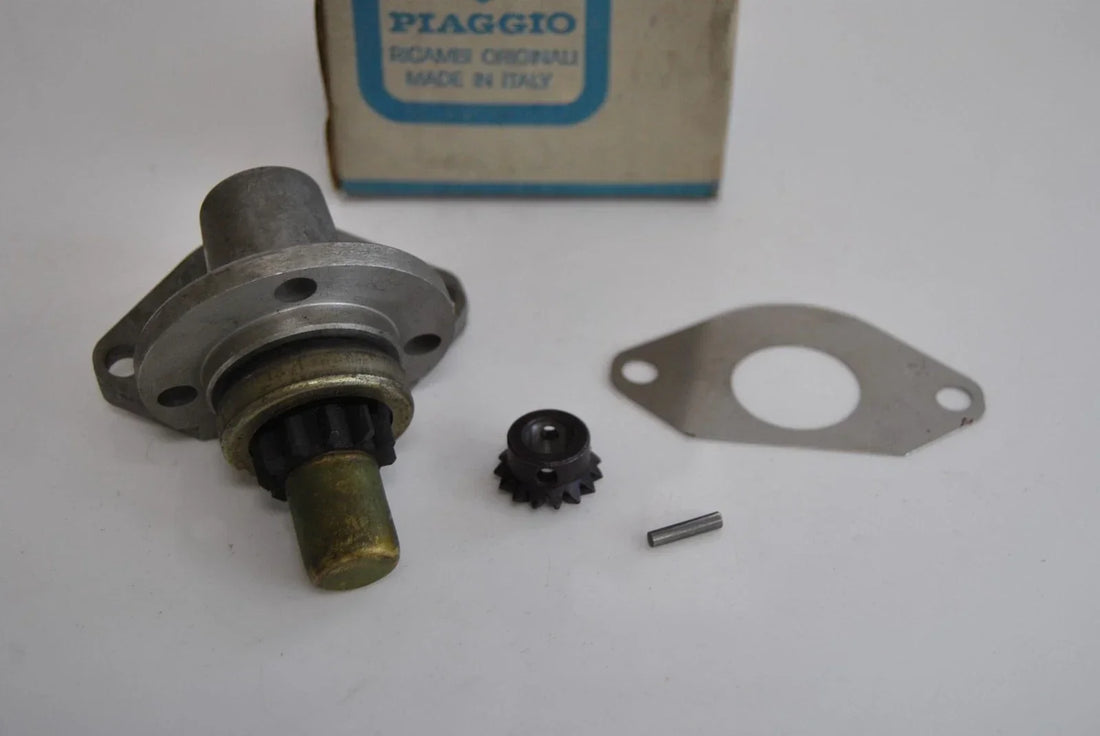

Inspect the starter motor gear and the corresponding starter engagement mechanism.
Check for:
- Worn teeth
- Damaged components
- Incorrect assembly
- Mechanical damage
Don't keep holding the starter button if the starter motor is spinning without turning the engine.
Investigate the mechanical engagement instead.
Problem 13 – The Starter Works Intermittently
Intermittent electrical faults can be some of the most frustrating to diagnose.
If the starter works perfectly one minute and then does nothing the next, don't immediately replace the starter motor.
Look for a poor connection.
Pay particular attention to:
- Battery terminals
- Earth cable
- Starter relay
- Starter button
- Clutch/start-permissive switch
- Wiring connectors
- Starter motor terminal
Recommended Fix
Move through the circuit methodically.
Check each connection and test the circuit when the fault is actually present.
Cleaning and tightening a connection may solve the problem.
If a relay or switch is worn, replacement may be required.
Problem 14 – The Starter Relay Clicks Repeatedly
Repeated clicking is often associated with insufficient voltage reaching the starter system.
Possible causes include:
- Weak battery
- Poor battery connection
- Poor earth
- High resistance in the starter circuit
The relay may engage and then drop out as the battery voltage falls.
Recommended Fix
Start with the battery.
Check its condition and measure the voltage while operating the starter.
Then check the battery and earth connections.
Don't automatically replace the relay without testing the rest of the circuit.
A Simple PX Electric Start Fault-Finding Guide
| What happens when you press START? | Areas to check first | Recommended fix |
|---|---|---|
| Absolutely nothing | Battery, fuse, starter button, safety switch | Test circuit and repair/replace faulty component |
| Single click | Relay, battery, earth, starter | Test voltage and relay |
| Repeated clicking | Battery, terminals, earth | Charge/test or replace battery; clean connections |
| Starter turns slowly | Battery, cables, earth, relay | Check voltage under load and cable resistance |
| Starter spins but engine doesn't | Starter engagement mechanism | Inspect starter gear/engagement |
| Works intermittently | Connections, relay, switches | Clean/test connections and replace faulty component |
| Starter motor receives power but doesn't turn | Starter motor | Repair or replace starter motor |
How to Fault-Find a PX Electric Start System
The best approach is to work through the system rather than replacing parts at random.
Start at the battery.
Then work towards the starter motor.
Step 1 – Check the Battery
Is it charged and capable of supplying current?
Step 2 – Check the Fuse
Is the correct fuse fitted and intact?
Step 3 – Check the Controls
Does the starter button operate correctly?
Is the clutch/start-permissive switch working where fitted?
Step 4 – Check the Relay
Does the starter relay operate?
Does it pass the required current?
Step 5 – Check the Heavy Cables
Are the battery and starter cables clean, tight and undamaged?
Step 6 – Check the Earth
Is there a good electrical connection between the engine and battery negative?
Step 7 – Check the Starter Motor
Is the correct voltage reaching the starter motor?
If it is and the motor doesn't operate, the starter motor becomes the prime suspect.
Don't Just Throw Parts at the Problem
One of the biggest mistakes when fault-finding an electric-start PX is simply replacing parts until the starter works.
You could replace:
- Battery
- Relay
- Starter button
- Starter motor
- Fuse
- Wiring
and still have the original problem.
A multimeter or test lamp can save a lot of time.
Follow the electrical circuit and find out where the power stops.
That tells you much more than simply replacing components.
Remember – PX Wiring Can Vary
This is particularly important when working with classic Vespa PX models.
There are differences between:
- PX 125
- PX 150
- PX 200
- Earlier electric-start models
- Later PX models
- Different markets
- Different years
Piaggio documentation shows, for example, that the starter protection relay arrangement differs between some PX 125 and PX 200 systems.
Always use the correct wiring diagram for your particular scooter.
If your PX has previously been rewired or modified, don't assume that the colours or connections still match the original factory arrangement.
Recommended Scooter Vista Fixes
If you're working through a PX electric-start fault, Scooter Vista stocks a range of parts that can help get the system working correctly again.
Depending on your diagnosis, you may need:
- PX starter motors
- Starter relays
- Starter motor cables
- Battery cables
- Battery terminals
- Wiring components
- Starter switches
- Electrical connectors
- Fuses
- Engine earth cables
- Other PX electrical components
We always recommend diagnosing the fault first and then replacing the component that has actually failed.
This saves time, money and frustration.
Before Replacing the Starter Motor
If your PX starter isn't working, don't automatically order a new starter motor.
Ask yourself:
Does the starter relay click?
Is the battery healthy?
Does the battery voltage drop heavily when the starter is operated?
Is there power reaching the starter motor?
Is the engine earth good?
Are the heavy battery and starter cables in good condition?
If you've answered these questions, you should have a much better idea of where the problem lies.
Frequently Asked Questions
Why won't my Vespa PX electric start work?
There are several possible causes, including a weak battery, blown fuse, faulty starter button, safety switch, starter relay, poor earth, damaged wiring or faulty starter motor.
Start with the battery and connections before replacing expensive components.
Why does my PX starter just click?
A clicking relay with no starter movement can indicate a weak battery, poor connection, faulty relay or starter motor problem.
Check the battery and connections first, then test whether voltage is reaching the starter motor.
Why does my PX starter turn slowly?
A weak battery is one possibility, but also check the battery terminals, engine earth, heavy starter cables and starter relay before condemning the starter motor.
Why does my PX starter spin but not turn the engine?
If the starter motor is spinning but the engine isn't turning, investigate the mechanical starter engagement mechanism rather than the electrical supply.
Can a good battery still cause a starter problem?
Yes.
A battery can show a reasonable resting voltage but fail to provide sufficient current under the heavy load of the starter motor.
Should I replace the starter relay if it clicks?
Not necessarily.
A clicking relay doesn't automatically mean it is passing the correct current. Test the circuit before replacing it.
Final Thoughts
A non-working electric start on a Vespa PX can seem complicated, but the system becomes much easier to understand when you break it down into individual sections.
Start with the basics:
Battery → Fuse → Switches → Relay → Cables → Earth → Starter Motor
Work through the circuit methodically and you can normally narrow the problem down without replacing parts unnecessarily.
And remember, if you're working on an older PX, the wiring may have been modified during its lifetime, so always check the actual scooter against the correct wiring diagram.
At Scooter Vista, we stock a wide range of Vespa PX, PE and T5 electrical and engine parts to help keep your classic Vespa on the road.
If you're unsure which part you need, get in touch and we'll be happy to help.
Diagnose it first. Fix it properly. Get back on the road.
