Lambretta Crankshaft & Piston Parts – LI SX TV GP
Welcome to the Scooter Vista range of Lambretta Crankshaft & Piston Parts for LI, SX, TV, DL & GP models.
The crankshaft and piston are two of the most important components inside a Lambretta engine. Together, they convert the combustion created inside the cylinder into the rotational power that drives the gearbox and rear wheel.
Whether you're carrying out a complete Lambretta engine rebuild, replacing a worn crankshaft, fitting a new piston or simply replacing piston rings and circlips, using the correct quality components is essential.
At Scooter Vista, we stock a range of Lambretta crankshafts, piston rings, piston circlips, crank bearings and associated engine components for classic Lambretta models and performance engine builds.
Our Lambretta engine parts are suitable for a wide range of applications including:
- Lambretta LI
- Lambretta SX
- Lambretta TV
- Lambretta DL
- Lambretta GP
- Series 2
- Series 3
- Standard engines
- Fast-road engines
- Performance and tuned engines
Always check the individual product description for exact compatibility, dimensions and specification before ordering.
What Does a Lambretta Crankshaft Do?
The crankshaft is responsible for converting the up-and-down movement of the piston into rotary movement.
As the piston moves down the cylinder during combustion, the connecting rod transfers this force to the crankshaft.
The crankshaft then rotates and transfers the engine's power through the clutch and gearbox.
A Lambretta crankshaft therefore has to cope with considerable loads and high rotational speeds.
A worn, damaged or incorrectly specified crankshaft can result in:
- Excessive vibration
- Bearing wear
- Poor engine performance
- Unusual engine noises
- Crankcase damage
- Poor piston alignment
- Premature engine failure
For a standard restoration, choosing a crankshaft that matches the original engine specification is important.
For a performance engine, crankshaft specification becomes even more important.
Lambretta Crankshaft Parts
A Lambretta crankshaft assembly consists of several important components.
Depending on the crankshaft design, these include:
- Crank webs
- Crank pin
- Connecting rod
- Big-end bearing
- Small-end bearing
- Small-end bush where applicable
- Crankshaft taper
- Flywheel-side taper
- Clutch-side taper
The crankshaft must be correctly matched to the cylinder, piston, engine casing and ignition/flywheel arrangement being used.
When rebuilding an engine, don't simply select a crankshaft based on engine capacity.
Check the complete specification.
Lambretta Crankshaft Sizes
Lambretta performance engines are available with a variety of crankshaft specifications.
Important measurements can include:
- Stroke
- Con-rod length
- Crank web diameter
- Crankcase clearance
- Flywheel taper
- Clutch-side specification
The correct crankshaft depends on the engine being built.
For example, Scooter Vista currently stocks an AF Rayspeed / Mazzucchelli Lambretta DL/GP 60 x 116 crankshaft, demonstrating the type of performance crankshaft specification available for tuned Lambretta engines.
When choosing a crankshaft, make sure the stroke and rod length are suitable for the cylinder and piston combination.
Lambretta 60 x 116 Crankshaft
The 60 x 116 crankshaft specification is commonly associated with performance Lambretta engine builds.
The 60 mm stroke and 116 mm connecting rod combination can be used as part of a performance engine configuration, depending on the cylinder, piston and crankcase setup.
It is particularly important with performance engines to consider the complete combination of:
- Crankshaft
- Cylinder
- Piston
- Cylinder head
- Exhaust
- Carburettor
- Gearing
- Ignition
A crankshaft should not be selected in isolation.
Standard Lambretta Crankshafts
For a standard Lambretta restoration, the crankshaft should generally match the original engine specification.
Before ordering a replacement, check:
- Engine model
- Engine capacity
- Stroke
- Con-rod specification
- Flywheel taper
- Clutch-side taper
- Bearing arrangement
A good quality replacement crankshaft can provide a solid foundation for a reliable engine rebuild.
Lambretta Performance Crankshafts
Performance engines place additional demands on the crankshaft.
Higher engine speeds, increased compression and greater cylinder capacity can all increase the loads placed on the crankshaft assembly.
For a tuned Lambretta, a quality performance crankshaft can be an important part of building a reliable engine.
Performance crankshaft selection should take into account:
- Desired engine capacity
- Intended RPM range
- Cylinder kit
- Piston
- Port timing
- Exhaust
- Carburettor
- Gearing
- Ignition
- Intended use
A fast-road touring engine may require a different crankshaft specification from a high-revving race engine.
What Does a Lambretta Piston Do?
The piston moves up and down inside the cylinder.
During the engine cycle, it:
- Compresses the mixture.
- Receives the force of combustion.
- Transfers that force through the connecting rod.
- Controls the opening and closing of the cylinder ports.
The piston operates at high temperature and speed, making correct clearance and lubrication essential.
A piston that is incorrectly fitted or has insufficient clearance can result in serious engine damage.
Lambretta Pistons
When replacing a Lambretta piston, it is important to match it to the cylinder.
Check:
- Bore diameter
- Piston diameter
- Piston pin diameter
- Piston ring specification
- Ring position
- Piston crown design
- Compression height
- Cylinder manufacturer
- Cylinder kit
A piston that appears to be the correct diameter is not necessarily suitable for a particular cylinder.
Always use the piston specified for the cylinder wherever possible.
Lambretta Piston Rings
Piston rings seal the piston against the cylinder wall.
They are responsible for helping maintain compression while also allowing heat to transfer from the piston into the cylinder.
Worn or damaged piston rings can cause:
- Reduced compression
- Poor starting
- Loss of performance
- Increased blow-by
- Increased oil/fuel consumption
- Poor running
Scooter Vista stocks piston ring sets for Lambretta performance applications, including MB Scooters piston rings for BGM RT195 and RT225 cylinders and MB Scooters 225 70 mm piston rings.
Always check the exact bore size and cylinder application before ordering piston rings.
Lambretta Piston Ring Gap
Piston ring end gap is important when fitting new rings.
The ring should be checked in the cylinder rather than simply assuming the supplied gap is correct.
The correct clearance depends on the cylinder and piston manufacturer's specification.
A ring with insufficient end gap can expand as the engine reaches operating temperature and potentially bind in the cylinder.
A ring with excessive end gap can reduce sealing.
Always follow the specification supplied with the particular cylinder and piston.
Lambretta Piston Circlips
Piston circlips secure the piston pin inside the piston.
Although they are small components, they are extremely important.
A correctly fitted circlip prevents the piston pin from moving sideways and contacting the cylinder.
A loose, incorrectly fitted or damaged circlip can cause catastrophic engine damage.
Scooter Vista stocks MB Scooters Lambretta 16 mm RT195/RT225 piston circlip sets for applicable performance piston applications.
Whenever a piston is rebuilt, always check that the correct circlips are being used for the piston.
Fitting Lambretta Piston Circlips
When fitting a piston circlip:
- Use the correct size.
- Make sure it is fully seated in its groove.
- Check that it has not been distorted during installation.
- Ensure the circlip gap is correctly positioned according to the piston manufacturer's instructions.
- Never reuse a damaged or distorted circlip.
It is worth taking extra time over this part of an engine rebuild.
A piston circlip that isn't fully seated can come out during operation and cause major damage to the piston, cylinder and crankcase.
Lambretta Piston Pin
The piston pin connects the piston to the small end of the connecting rod.
It must be the correct diameter and length for the piston.
Before assembly, inspect the pin for:
- Scoring
- Discolouration
- Wear
- Damage
- Excessive play
The piston pin should be correctly lubricated during assembly and should fit the piston and small-end bearing correctly.
Lambretta Small-End Bearing
The small-end bearing sits between the piston pin and connecting rod.
It allows the piston and connecting rod to articulate as the crankshaft rotates.
A worn small-end bearing can result in:
- Excessive piston movement
- Rattling
- Knocking
- Increased vibration
- Damage to the piston pin
During a full engine rebuild, inspect the small-end bearing carefully and replace it if there is any doubt about its condition.
Lambretta Big-End Bearing
The big-end bearing is located within the crankshaft assembly at the connection between the connecting rod and crank pin.
It operates under considerable load.
A worn big-end bearing can produce noticeable play or knocking from the bottom end of the engine.
If the crankshaft is being replaced or professionally rebuilt, the condition of the big-end assembly should always be considered.

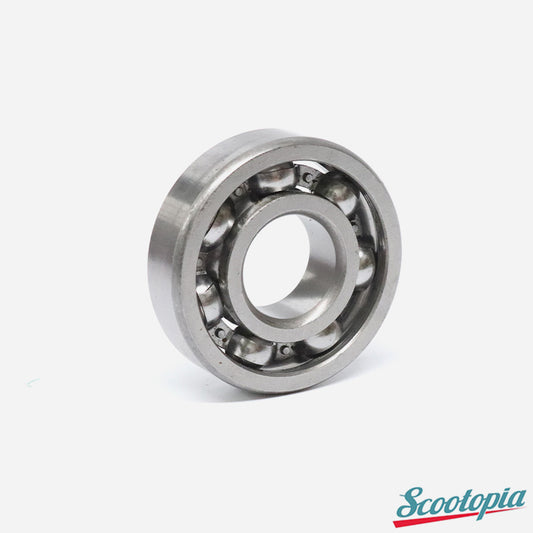

Lambretta Crank Bearings
The crankshaft relies on bearings to rotate correctly within the engine casing.
Good quality crank bearings are essential for:
- Smooth operation
- Correct crankshaft alignment
- Long engine life
- Reduced vibration
- Reliable high-RPM operation
Scooter Vista stocks crank bearing sets including the SKF Lambretta LI/SX/TV crank bearing set with ROLF oil seals, as well as SKF DL/GP engine bearing sets.
When rebuilding an engine, replacing the crank bearings is normally sensible rather than installing a new crankshaft into old, worn bearings.
Lambretta Crankshaft Oil Seals
The crankshaft oil seals are another important part of the bottom-end rebuild.
They prevent unwanted air leakage and retain oil where required.
Scooter Vista stocks Lambretta engine oil seal sets from suppliers including Scootopia, ROLF and MB Scooters, including E5/E10-resistant oil seal options.
When replacing a crankshaft, inspect or replace the associated oil seals as part of the rebuild.
Lambretta Crankshaft and Piston Engine Rebuild
If you're rebuilding a Lambretta engine, the crankshaft and piston should be considered as part of the complete engine assembly.
A typical bottom-end inspection includes:
Crankshaft
- Crank webs
- Con-rod
- Big-end
- Crank pin
- Tapers
- Keyways
- Runout
Piston
- Crown
- Skirt
- Piston pin
- Circlips
- Ring grooves
- Piston rings
Bearings
- Main crank bearings
- Small-end bearing
- Associated gearbox bearings
Seals
- Crankshaft oil seals
- Engine O-rings
- Other relevant sealing components
Replacing only one worn component may not be enough if the engine has significant mileage.
Checking a Lambretta Crankshaft Before Assembly
Before installing a crankshaft into an engine casing, inspect it carefully.
Check:
- Crank webs are undamaged.
- Con-rod moves correctly.
- Big-end has no excessive play.
- Tapers are clean.
- Keyways are undamaged.
- Threads are clean.
- Crankshaft dimensions are correct.
- The crankshaft is suitable for the engine specification.
On a performance engine, crankshaft runout should also be checked using suitable measuring equipment.
Correct crankshaft alignment is particularly important as engine speed increases.
Lambretta Crankshaft Runout
Crankshaft runout refers to how much the crankshaft deviates from its intended rotational axis.
Excessive runout can contribute to:
- Vibration
- Bearing wear
- Oil seal problems
- Poor engine operation
- Reduced crankshaft life
A crankshaft should be checked using suitable equipment during a professional engine rebuild.
If excessive runout is discovered, it should be corrected before the engine is assembled.
Lambretta Piston-to-Cylinder Clearance
Correct piston-to-cylinder clearance is critical.
The piston expands as the engine reaches operating temperature.
There must therefore be sufficient clearance to allow the piston to move freely without excessive movement.
Too little clearance can cause the piston to seize.
Too much clearance can result in:
- Piston slap
- Noise
- Reduced compression
- Increased wear
Always follow the piston and cylinder manufacturer's specified clearance.
Lambretta Piston Seizure
A seized piston can be caused by several problems, including:
- Insufficient piston clearance
- Incorrect running-in
- Overheating
- Incorrect carburettor jetting
- Air leaks
- Insufficient lubrication
- Incorrect ignition timing
- Excessive engine load
If a Lambretta has suffered a piston seizure, don't simply fit a new piston and continue riding.
The cylinder, crankshaft, small-end bearing and bottom end should all be inspected.
Lambretta Piston Installation
When installing a piston:
- Confirm the piston is correct for the cylinder.
- Check piston-to-cylinder clearance.
- Check the piston rings.
- Check ring end gaps.
- Fit the correct small-end bearing.
- Lubricate the piston pin and bearing.
- Fit the piston to the connecting rod.
- Install new piston circlips.
- Confirm both circlips are fully seated.
- Check ring positioning before installing the cylinder.
- Lubricate the piston and cylinder.
- Carefully install the cylinder.
Take your time during assembly.
Forcing the cylinder over the piston rings can damage the rings or piston.
Lambretta Piston Ring Position
Piston rings need to be correctly positioned before the cylinder is fitted.
Many performance pistons use locating pins in the piston ring grooves.
These pins prevent the ring ends from rotating into the cylinder ports.
Make sure each ring is correctly positioned against its locating pin before installing the cylinder.
This is particularly important on two-stroke engines where the piston rings pass over the cylinder ports.
Lambretta Crankshaft and Piston Matching
When building a Lambretta engine, it is important to consider the crankshaft and piston together with the cylinder.
A performance combination could involve:
Crankshaft → Piston → Cylinder → Cylinder Head → Carburettor → Exhaust → Ignition → Gearing
Changing one component can affect the requirements of the others.
For example, changing the crankshaft stroke can alter the engine's port timing and compression characteristics.
This is why performance engine builds should be planned as a complete combination rather than simply fitting the largest available components.
Standard Lambretta Engine Rebuild
For a standard Lambretta engine, reliability should normally be the priority.
A sensible rebuild can include:
- Quality crankshaft
- New crank bearings
- New oil seals
- New piston rings
- Correct piston
- New piston circlips
- New small-end bearing
- New gaskets
- Correct cylinder clearance
A properly assembled standard engine can provide many miles of reliable riding when correctly maintained.
Lambretta Performance Engine Builds
For performance Lambretta engines, crankshaft and piston selection becomes even more important.
Scooter Vista stocks components suitable for performance engine builds, including Scootopia 185 barrel and piston kits, BGM RT195 and RT225 kits, performance piston rings and performance crankshafts.
Performance engines should be built around a matched combination of components.
Consider:
- Engine capacity
- Crankshaft stroke
- Con-rod length
- Piston
- Cylinder
- Port timing
- Compression ratio
- Exhaust
- Carburettor
- Ignition
- Gearing
- Intended riding style
A well-matched engine is generally more useful than simply chasing the highest possible capacity.
Lambretta Crankshaft Problems
Common symptoms of crankshaft or bottom-end problems can include:
Excessive vibration
Possible causes include crankshaft runout, damaged bearings or crankshaft imbalance.
Bottom-end knocking
Possible causes include big-end or small-end wear.
Oil seal problems
A worn or damaged crankshaft seal can cause air leaks or oil-related problems.
Poor engine running
A mechanical bottom-end problem can sometimes present itself as a carburettor or ignition problem.
Bearing noise
Worn crank bearings can produce rumbling or other abnormal noises.
If an engine develops unusual bottom-end noise, it is better to investigate before continuing to ride.
Lambretta Piston Problems
Common piston-related problems include:
- Worn piston rings
- Broken piston rings
- Piston seizure
- Piston slap
- Damaged piston crown
- Worn piston skirt
- Damaged ring grooves
- Loose piston circlips
- Excessive piston-pin clearance
If the cylinder is removed during an engine rebuild, take the opportunity to inspect the piston carefully.
Choosing the Correct Lambretta Crankshaft
Before ordering a Lambretta crankshaft, check:
Engine model
Engine capacity
Stroke
Con-rod length
Flywheel specification
Clutch specification
Cylinder kit
Piston
Intended use
For performance engines, also consider the desired power characteristics and RPM range.
If you're unsure, it is better to establish the complete engine specification before ordering.
Choosing the Correct Lambretta Piston
Before ordering a piston or piston rings, check:
Cylinder manufacturer
Cylinder capacity
Bore size
Piston diameter
Piston pin diameter
Ring thickness
Ring locating pins
Piston crown design
Do not assume that all pistons of the same bore diameter are interchangeable.
The correct piston must match the cylinder and its design.
Genuine & Specialist Lambretta Engine Parts
Scooter Vista stocks a mixture of quality Italian, German, UK and specialist Lambretta engine components.
Our range includes products from manufacturers and suppliers such as Scootopia, AF Rayspeed, Mazzucchelli, MB Scooters, SKF, ROLF and BGM, covering both standard restoration and performance applications.
This gives Lambretta owners a choice of components depending on whether they're restoring an original engine, rebuilding a touring engine or developing a performance motor.
Lambretta Crankshaft & Piston Parts at Scooter Vista
Whether you're restoring a Series 3 LI, building an SX or TV engine, maintaining a DL or GP, or putting together a performance Lambretta motor, Scooter Vista aims to supply the components needed for a reliable engine rebuild.
Our range includes:
- Lambretta crankshafts
- Performance crankshafts
- Piston rings
- Piston circlips
- Piston components
- Small-end bearings
- Crank bearings
- Oil seals
- Engine rebuild components
- Cylinder and piston kits
From a replacement piston ring to a complete performance crankshaft, choosing the correct component for your engine specification is essential.
Scooter Vista – Lambretta Parts Specialists
Scooter Vista specialises in classic Lambretta and Vespa parts, supplying components for restoration, servicing, engine rebuilding and performance upgrades.
Browse our range of Lambretta LI, SX, TV, DL & GP crankshaft and piston parts to find the components you need for your next engine rebuild.
