Welcome to the Scooter Vista range of Vespa PX, PE & T5 Electrical Parts.
Whether you're restoring a classic Vespa, replacing a faulty electrical component, rebuilding the ignition system or upgrading your scooter to a modern electronic ignition, we stock a range of Vespa electrical parts for PX, PE and T5 models.
Our range includes electrical components for popular large-frame Vespa models including:
- Vespa PX
- Vespa PE
- Vespa T5
- PX125
- PX150
- PX200
- PE125
- PE150
- PE200
- T5 125
From stators, CDI units and voltage regulators to switches, bulbs, wiring components, ignition parts and electrical hardware, our range is designed to help with servicing, restoration, repairs and performance upgrades.
Please check the exact model, year and electrical specification before ordering, as Vespa PX, PE and T5 electrical systems can vary between models and battery/non-battery configurations.
Vespa PX Electrical Parts
The electrical system on a Vespa PX provides the power required for the ignition, lighting, horn, indicators and other electrical equipment.
Depending on the model and specification, a PX electrical system can include:
- Stator
- Flywheel
- CDI
- Ignition coil
- Pickup
- Voltage regulator
- Wiring loom
- Ignition switch
- Light switches
- Indicator switch
- Brake light switches
- Horn
- Headlight
- Rear light
- Bulbs
- Indicator bulbs
- Electrical connectors
- Earth cables
The exact arrangement depends on the model and whether the scooter uses a battery.
When replacing electrical components, always check the existing wiring and component specification rather than assuming all PX parts are interchangeable.
Vespa PE Electrical Parts
The Vespa PE shares many electrical components with PX models, but the exact specification can depend on the model and year.
Scooter Vista stocks suitable Vespa PE electrical components for restoration and servicing.
These can include ignition components, lighting components, switches, wiring parts and replacement electrical hardware.
If you're restoring a PE, it is worth checking the entire electrical system rather than replacing individual components without testing them.
Vespa T5 Electrical Parts
The Vespa T5 has a number of model-specific electrical components, making it particularly important to check compatibility before ordering.
The T5 electrical system includes components such as:
- Stator
- CDI
- Voltage regulator
- Wiring loom
- Ignition switch
- Light switches
- Indicator components
- Horn
- Headlight
- Rear light
- Brake light
- Instrument lighting
The T5 also has its own switch and wiring arrangements. For example, the T5 light switch uses several dedicated connections for lighting, horn and related circuits.

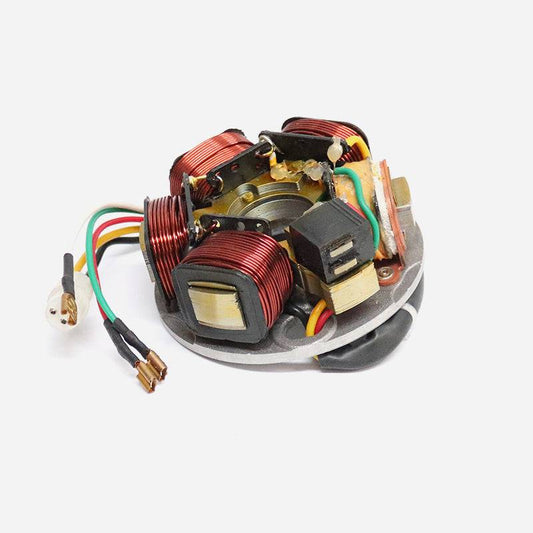

Vespa Stators & Ignition Plates
The stator, or ignition plate, is one of the most important electrical components on a classic Vespa.
It contains the coils and pickup required to generate the ignition signal and electrical power.
A PX/T5 stator can have separate connections for:
- Ignition
- Pickup
- Earth
- Lighting
- Charging
On a typical PX Lusso five-pole stator, the white, red and green wires are associated with the ignition system, while the blue and black wires form part of the lighting supply.
Different stator arrangements exist, so always check the exact wiring configuration before ordering.
Vespa PX Stator Parts
Scooter Vista stocks suitable Vespa PX stator and ignition components for restoration, servicing and replacement.
When inspecting an old stator, check:
- Coil condition
- Wiring insulation
- Pickup
- Solder joints
- Earth connections
- Wiring connectors
- Stator plate
- Grommets
- Cable routing
Old stator wiring can become brittle with age, particularly around the engine where it is exposed to heat and vibration.
Vespa T5 Stator Parts
T5 stators should be matched carefully to the scooter's electrical system.
When replacing a T5 stator, compare:
- Number of poles
- Wiring colours
- Connector arrangement
- Pickup specification
- Ignition coil arrangement
- Regulator configuration
Do not assume a PX stator is automatically suitable for a T5.
Vespa CDI Units
The CDI, or Capacitor Discharge Ignition unit, controls the ignition spark.
The stator provides the ignition signal and charging energy, while the CDI produces the high-voltage output required to fire the spark plug.
A typical PX/T5 CDI has connections associated with:
- Earth
- Pickup signal
- Ignition charging circuit
- Kill circuit
The exact wiring depends on the ignition system fitted.
A faulty CDI can result in:
- No spark
- Intermittent spark
- Difficult starting
- Engine cutting out
- Poor running
Vespa PX CDI & Ignition Coils
The CDI and ignition coil arrangement is critical to reliable starting and running.
When diagnosing an ignition problem, don't immediately assume the CDI has failed.
Check the complete ignition system, including:
- Spark plug
- HT lead
- Plug cap
- CDI
- Pickup
- Stator
- Earth connections
- Kill circuit
- Wiring
A poor earth or damaged wiring can produce symptoms that appear to be a faulty CDI.
Vespa Voltage Regulators
The voltage regulator controls the electrical output supplied to the scooter's electrical equipment.
This is particularly important because the voltage produced by the stator changes with engine speed.
A faulty regulator can cause:
- Bulbs blowing
- Lights becoming excessively bright
- Lights being too dim
- Electrical components receiving incorrect voltage
- Charging problems on battery-equipped models
PX and T5 systems can use different regulator arrangements, including AC and AC/DC systems.
Always check the number of terminals and the electrical system before ordering a replacement regulator.
Vespa AC & DC Electrical Systems
One of the most important things to establish before working on a classic Vespa's electrics is whether the scooter uses an AC, DC or combined AC/DC electrical system.
This affects components including:
- Voltage regulator
- Horn
- Indicators
- Battery
- Wiring
- Switches
- Lighting
Some VAPE systems, for example, are available with AC or DC regulator arrangements depending on the intended electrical configuration.
Do not simply connect components based on wire colour alone. Confirm the wiring diagram and component specification for your particular scooter.
Vespa Electronic Ignition
Electronic ignition is one of the most popular electrical upgrades for classic Vespa PX, PE and T5 models.
Compared with older points-based ignition systems, electronic ignition uses a stator, pickup and CDI arrangement to control the spark.
Benefits can include:
- Reliable ignition
- Consistent spark timing
- Reduced maintenance
- Easier starting
- Improved reliability
Modern electronic ignition systems are available in both standard replacement and performance configurations.
Vespa VAPE Ignition
VAPE electronic ignition systems are available for classic Vespa applications in different configurations.
VAPE systems can use a dedicated stator, ignition coil and regulator arrangement depending on whether the scooter is being operated as an AC or DC system.
Scooter Vista stocks suitable Vespa VAPE ignition components and electronic ignition systems.
When choosing an electronic ignition, check:
- AC or DC system
- Battery or non-battery configuration
- Static or variable timing
- Flywheel specification
- Stator specification
- Regulator type
Vespa Ignition Pickups
The pickup is mounted on the stator and provides the trigger signal used by the electronic ignition system.
A faulty pickup can cause:
- No spark
- Intermittent spark
- Cutting out
- Poor starting
- Ignition timing problems
When diagnosing a no-spark problem, the pickup should be considered alongside the CDI and stator.
Vespa Ignition Wiring
The wiring between the stator, CDI, regulator and main loom is critical to reliable operation.
PX and T5 wiring uses identifiable colours, but wire colours alone should not be used to determine compatibility because different electrical systems and replacement looms can exist.
Before replacing or modifying wiring:
- Identify the scooter model.
- Identify whether it has a battery.
- Identify the stator type.
- Identify the regulator type.
- Check the wiring diagram.
- Inspect earth connections.
- Check connectors and terminals.
- Test the relevant circuit.
This approach can prevent expensive electrical components being connected incorrectly.

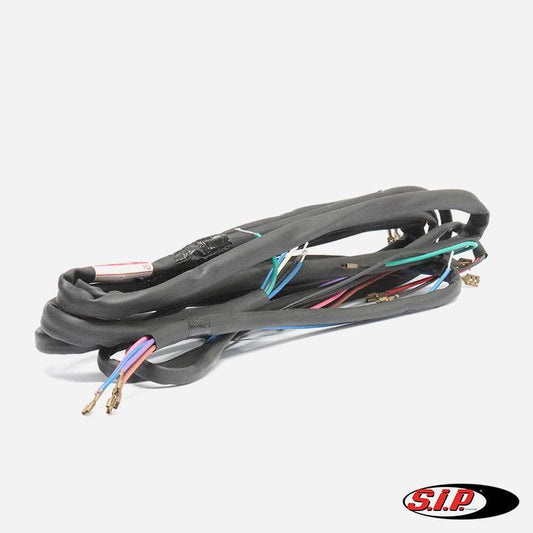

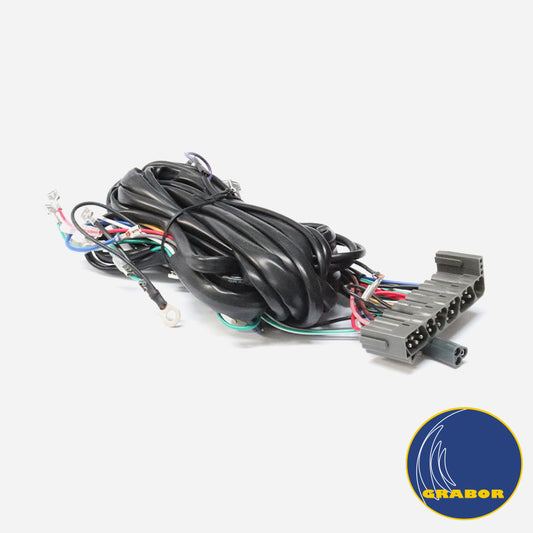

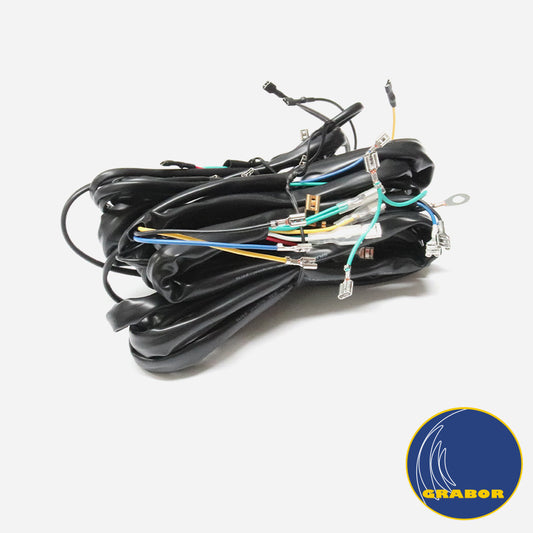

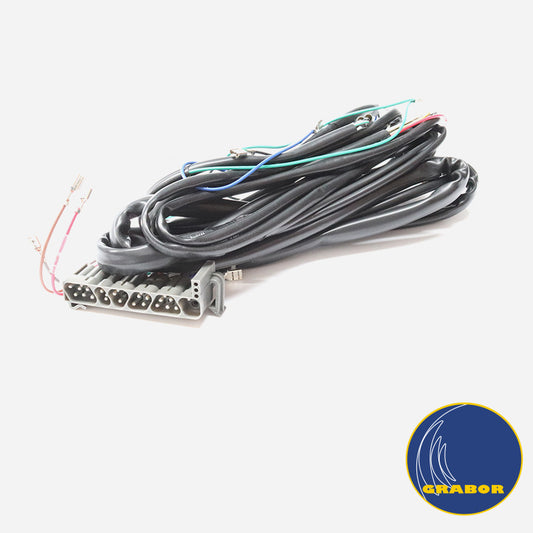

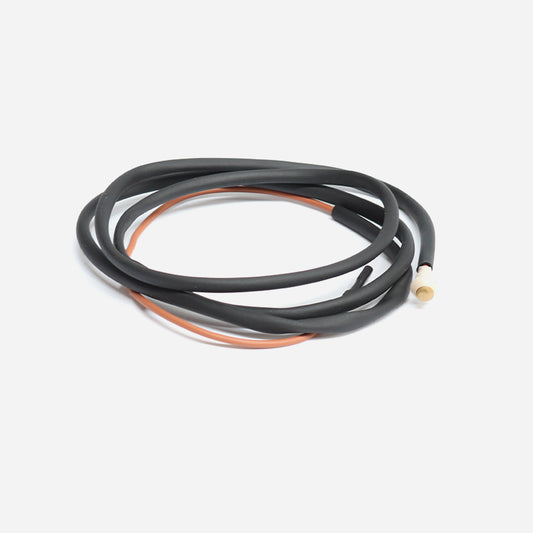

Vespa Wiring Looms
The wiring loom connects the various electrical components throughout the scooter.
A damaged loom can produce seemingly unrelated electrical faults.
Common problems include:
- Broken wires
- Brittle insulation
- Corroded connectors
- Poor earth connections
- Previous incorrect repairs
- Damaged terminals
- Chafed wiring
During a full restoration, replacing an old wiring loom can be worthwhile rather than attempting to repair decades of previous modifications.

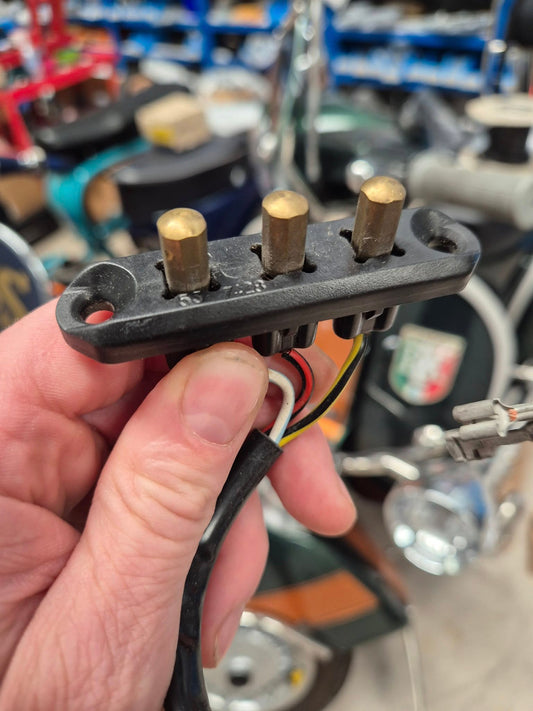

Vespa Electrical Connectors & Terminals
Electrical connectors are often overlooked when diagnosing classic scooter electrical problems.
A connector that looks fine externally can still suffer from:
- Corrosion
- Loose terminals
- Poor contact
- Broken wires
- Heat damage
When restoring a Vespa, inspect the connectors carefully and replace damaged terminals where necessary.
Vespa Ignition Switches
The ignition switch controls the scooter's electrical circuits and kill function, depending on the model.
A faulty ignition switch can cause:
- Engine not starting
- Engine not switching off
- Electrical equipment not working
- Intermittent electrical faults
If the engine runs but will not switch off, check the kill circuit and ignition switch before replacing the CDI.
Vespa Light Switches
The handlebar light switch controls the scooter's lighting circuits.
Depending on the model, the switch can control:
- Headlight
- Main beam
- Dip beam
- Pilot light
- Rear light
- Instrument lighting
The T5 light switch has a specific multi-terminal arrangement and is not simply interchangeable with every PX switch.
Vespa Indicator Switches
Indicator-equipped PX and T5 models use additional electrical components including the indicator switch and flasher relay.
A faulty indicator system can be caused by:
- Indicator switch
- Flasher relay
- Wiring
- Earth
- Bulbs
- Connectors
When diagnosing indicator problems, check the complete circuit.
Vespa Indicator Relays
The flasher relay controls the operation of the indicators.
The electrical system may use different flasher arrangements depending on whether the scooter is using AC or DC.
The relay works with the indicator switch to direct power to the left or right indicator circuits.
Always select the correct relay for the electrical system and number of connections.

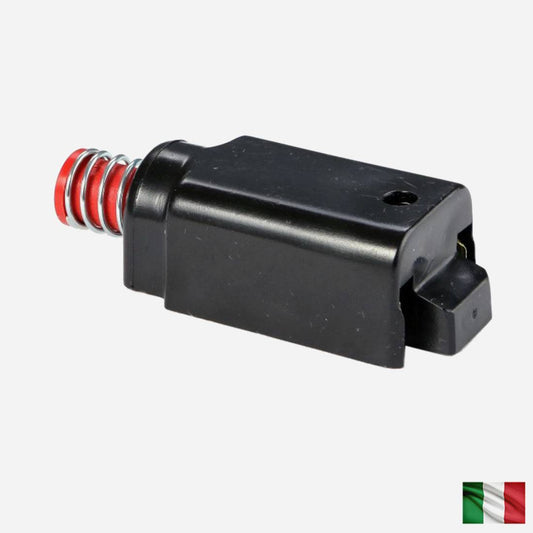

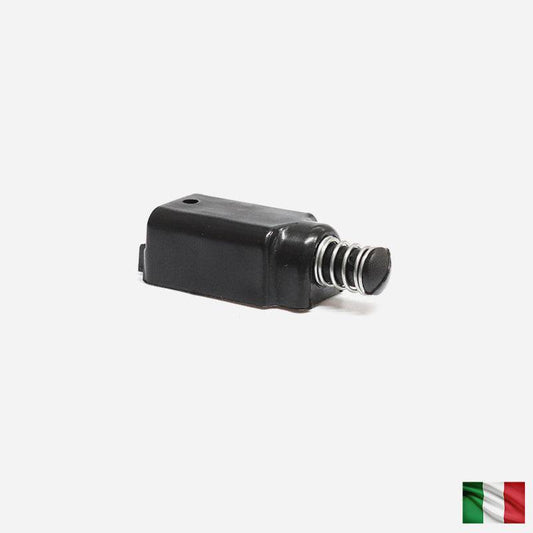

Vespa Brake Light Switches
The brake light switch activates the rear brake light when the brake is applied.
A faulty brake light switch can result in:
- No brake light
- Brake light permanently illuminated
- Intermittent operation
Check the switch, wiring, terminals and earth connections when diagnosing a brake light problem.
Vespa Horns & Horn Buttons
The horn is an important safety component and should be checked regularly.
If the horn does not operate, check:
- Horn unit
- Horn button
- Wiring
- Earth
- Power supply
- Regulator/battery system
Some Vespa electrical systems supply the horn differently depending on whether the scooter is AC or DC.
Vespa Headlight Parts
Scooter Vista stocks suitable Vespa PX, PE and T5 headlight and electrical components.
Headlight problems can be caused by:
- Blown bulb
- Poor connection
- Faulty switch
- Broken wire
- Poor earth
- Voltage regulator problem
- Stator fault
If a bulb repeatedly blows, don't simply keep replacing it. Check the voltage supply and regulator.
Vespa Rear Light Parts
The rear light provides the tail light and, depending on the model, brake light.
Check:
- Bulb
- Bulb holder
- Wiring
- Earth
- Brake light switch
- Rear light unit
Corrosion around bulb holders is particularly common on older scooters.
Vespa Bulbs
Correct bulb specification is important on a classic Vespa.
Using the wrong wattage can affect the electrical system and lighting performance.
Scooter Vista stocks replacement bulbs for suitable PX, PE and T5 applications, including:
- Headlight bulbs
- Tail light bulbs
- Brake light bulbs
- Indicator bulbs
- Instrument bulbs
- Warning light bulbs
Always check the correct bulb voltage and wattage for your scooter.
Vespa Speedometer & Instrument Lighting
The speedometer and instrument panel can contain several small bulbs and electrical connections.
Depending on the model, these can illuminate:
- Speedometer
- Main beam warning
- Indicator warning
- Oil warning
- Other instrument functions
When restoring a T5 or PX, inspect the instrument wiring and bulb holders carefully.
Vespa Earth Cables
A good earth connection is essential to a classic Vespa electrical system.
Poor earths can cause strange electrical faults, including:
- Dim lights
- Intermittent indicators
- Horn problems
- Poor ignition
- Electrical components not working
Check earth connections between the:
- Engine
- Frame
- Stator
- CDI
- Regulator
- Electrical equipment
A clean and secure earth can solve electrical problems that initially appear much more complicated.
Vespa Electrical Relays & Accessories
Depending on the scooter's specification and modifications, the electrical system may include additional relays and accessories.
These can include:
- Indicator relays
- Starter relays
- Regulators
- Rectifiers
- Relays for accessories
- USB charging components
When adding electrical accessories, make sure the existing charging and electrical system can support them.

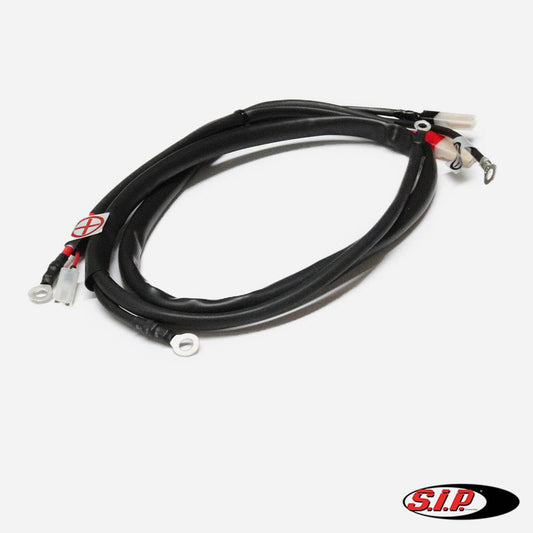

Vespa Electric Start Electrical Parts
Electric-start PX models require additional electrical components compared with kick-start-only models.
These can include:
- Battery
- Starter motor
- Starter relay
- Start button
- Wiring
- Fuse
- Regulator/charging system
If the electric start does not operate, check the complete circuit rather than assuming the starter motor itself has failed.
Vespa Battery Components
Battery-equipped PX and PE models use additional electrical components to charge and distribute power from the battery.
When servicing a battery system, inspect:
- Battery
- Battery leads
- Fuse
- Regulator
- Earth connections
- Wiring
- Starter relay where fitted
A poor battery connection or earth can cause multiple electrical problems.
Vespa Electrical Parts for Restoration
A complete Vespa restoration is an ideal time to inspect the electrical system.
Before completing the scooter, check:
- Wiring loom
- Stator
- CDI
- Regulator
- Ignition switch
- Light switches
- Indicator switch
- Horn
- Headlight
- Rear light
- Brake light
- Bulbs
- Earth cables
- Connectors
Replacing damaged electrical components during the restoration is generally much easier than trying to diagnose problems after the scooter has been fully assembled.
Common Vespa Electrical Problems
Some of the most common electrical problems on PX, PE and T5 models include:
No spark
Check the spark plug, plug cap, HT lead, CDI, pickup, stator, earth and kill circuit.
Lights not working
Check the bulbs, switches, regulator, stator output, wiring and earth connections.
Bulbs repeatedly blowing
Check the voltage regulator and electrical connections.
Indicators not working
Check the bulbs, flasher relay, switch, wiring and earth.
Horn not working
Check the horn, switch, wiring and power supply.
Engine will not switch off
Check the kill circuit, ignition switch and CDI wiring.
Electric start not working
Check the battery, fuse, starter relay, start button, wiring and starter motor.
Vespa Electrical System Diagnosis
When troubleshooting electrical faults, work methodically.
Start with the simplest checks:
- Check the bulb or spark plug.
- Check the relevant fuse if fitted.
- Check connectors.
- Check earth connections.
- Check the switch.
- Check wiring continuity.
- Check stator output where appropriate.
- Check the regulator.
- Check the CDI and pickup.
- Check the complete circuit against the correct wiring diagram.
This can save time and prevent unnecessary replacement of expensive electrical components.
Vespa PX PE T5 Electrical Parts for Engine Rebuilds
If you're rebuilding a Vespa engine, don't forget to inspect the electrical components mounted around the engine.
Check:
- Stator
- Pickup
- Stator wiring
- Flywheel
- CDI
- HT lead
- Plug cap
- Earth cable
- Wiring connector
- Engine loom
Old stator wiring is particularly worth checking because heat and vibration can cause insulation to become brittle.
Choosing the Correct Vespa Electrical Part
Before ordering, check:
Vespa model
PX, PE or T5
Engine size
Model year
Battery or non-battery
AC or DC system
Stator specification
Number of regulator terminals
CDI specification
Existing wiring colours
Connector arrangement
This is especially important with electrical components because visually similar parts can have completely different electrical characteristics.
Genuine & Specialist Vespa Electrical Parts
At Scooter Vista, we stock a mixture of quality replacement, restoration and performance electrical components for classic Vespa PX, PE and T5 models.
Our range covers everything from individual bulbs and switches to ignition components, stators, regulators, CDI units and electronic ignition systems.
Where applicable, individual product descriptions provide information about:
- Model compatibility
- Voltage
- Wattage
- Manufacturer
- Component specification
- Original part number
- AC/DC configuration
- Intended application
This makes it easier to select the correct electrical component for your Vespa.
Need Help Finding the Correct Vespa Electrical Part?
PX, PE and T5 electrical systems can vary considerably depending on the model, year and battery configuration.
Before ordering, check your:
- Vespa model
- Engine size
- Year
- Battery specification
- Stator type
- Regulator type
- CDI
- Existing wiring
- Component part number
If you're unsure which Vespa stator, CDI, regulator, switch, bulb, relay, ignition component or electrical part you need, check the individual product description or contact Scooter Vista for assistance.
Scooter Vista – Classic Vespa & Lambretta Parts Specialists
Scooter Vista specialises in classic Vespa and Lambretta parts, supplying components for restoration, servicing, engine rebuilding and performance upgrades.
From a replacement bulb or light switch to a complete electronic ignition system, our range of Vespa PX, PE & T5 Electrical Parts is designed to help keep your classic Vespa's electrical system working reliably.
Browse the products below to find the correct Vespa PX, PE & T5 stators, CDI units, voltage regulators, ignition parts, switches, bulbs, wiring components, relays, horns and electrical accessories for your scooter.
