Welcome to the Scooter Vista range of Lambretta Cooling System Parts for LI, SX, TV, DL & GP models.
Keeping the cooling system in good condition is essential for any classic Lambretta. Unlike a liquid-cooled engine, the Lambretta relies on forced air cooling to keep the cylinder and cylinder head at the correct operating temperature.
The flywheel fan generates airflow, while the flywheel cowl and cylinder head cowl direct that cooling air around the engine.
Our range of Lambretta cooling system parts includes components for:
- Lambretta LI
- Lambretta LI Special
- Lambretta SX
- Lambretta TV
- Lambretta DL
- Lambretta GP
We stock a range of flywheel cowls, cylinder head cowls, cowl bolts, washers, vibration grommets, mag housing gaskets and related cooling components.
Always check the individual product description for exact model and application compatibility.
How Does a Lambretta Cooling System Work?
The Lambretta engine is air cooled.
As the flywheel rotates, its fan generates airflow. The flywheel cowl helps contain and direct this air towards the engine, while the cylinder head cowl helps direct the airflow around the cylinder and cylinder head.
This airflow removes heat from the engine's cooling fins.
The cowls are therefore not simply cosmetic covers. They are an important part of the engine's cooling system.
A damaged, missing or incorrectly fitted cowl can affect the way cooling air is directed around the engine.
Lambretta Flywheel Cowls
The flywheel cowl, sometimes called the flywheel cover or fan cowl, surrounds the flywheel and helps direct the air generated by the flywheel fan.
Scooter Vista stocks flywheel cowls for different Lambretta applications, including:
The correct flywheel cowl needs to match the engine and flywheel arrangement.
For example, standard LI, SX and TV cowls are available for engines using standard short-finned flywheels, while separate GP/DL-style cowls are available.
Lambretta LI SX TV Flywheel Cowl
The classic LI, SX and TV-style flywheel cowl is commonly associated with Series 1, Series 2 and Series 3 Lambrettas.
Replacement cowls are available for suitable LI, SX and TV engines.
When selecting a replacement, check:
- Lambretta Series
- Engine specification
- Flywheel type
- Flywheel fin length
- Cowl design
- Drain hose arrangement
Some replacement LI/SX/TV cowls are designed around the standard short-finned flywheel arrangement.

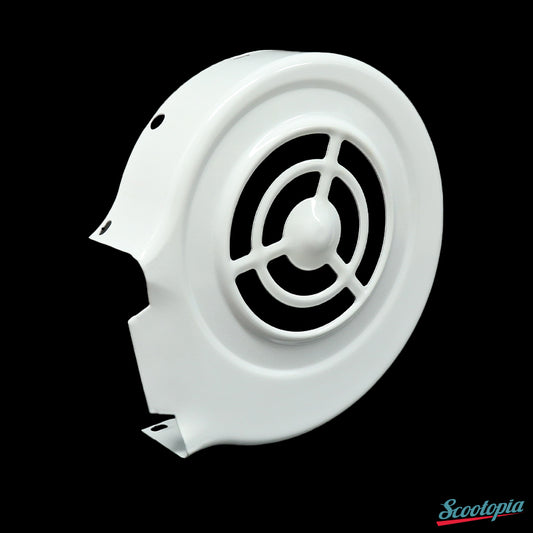

Lambretta DL GP Flywheel Cowl
DL and GP models use a different style of flywheel cowl.
Replacement Lambretta DL and GP flywheel cowls are available for 125cc, 150cc and 200cc applications.
GP/DL-style cowls can also be used on earlier Series scooters in some applications, although they were not originally designed for those models.
Always check the exact product specification before ordering.
Lambretta Cylinder Head Cowls
The cylinder head cowl is another important part of the Lambretta cooling system.
It directs cooling air over the cylinder head and cylinder.
The correct cowl depends on the engine and cylinder arrangement.
Scootopia currently lists separate LI/SX/TV and DL/GP cylinder head cowls within its cooling-system range.
Lambretta LI SX TV Cylinder Head Cowl
The traditional LI, SX and TV cylinder head cowl features an external air scoop and was used across a number of Lambretta models.
Suitable applications include various:
- LI Series 1
- LI Series 2
- LI Series 3
- LI Special
- TV175
- TV200
- SX150
- SX200
Specialist suppliers list this style of cowl across Series 1, 2 and 3 applications.
When replacing a cylinder head cowl, always check that it is suitable for your particular cylinder and head arrangement.
Lambretta DL GP Cylinder Head Cowl
The DL and GP cylinder head cowl is designed around the later Lambretta engine arrangement.
Replacement DL/GP cowls are available for suitable 125cc, 150cc and 200cc engines.
If your GP or DL has been fitted with a performance cylinder, check whether the standard cowl remains suitable before ordering.
Lambretta Performance Cylinder Cowls
Not every Lambretta engine remains completely standard.
Modern performance engines can use cylinders such as:
- TS1
- Imola
- Monza
- Mugello
- RT
- Other performance cylinders
These can require different cooling arrangements or modified cowls.
For example, specialist Lambretta suppliers list cylinder cowls specifically cut for reed-valve intake arrangements on Imola, Monza and TS1 cylinders.
Always check the cylinder manufacturer's recommendations when fitting a performance engine.
Why Lambretta Cooling Cowls Are Important
It can be tempting to regard the cowls as little more than protective covers.
They are not.
The cowls help control the airflow produced by the flywheel fan and direct it towards the areas of the engine that need cooling.
A missing or poorly fitted cowl can therefore reduce the effectiveness of the cooling system.
This is particularly important on:
- High-mileage engines
- Performance engines
- Larger-capacity cylinders
- Scooters used for touring
- Engines running at sustained high speeds
Lambretta Cooling Cowl Bolts & Washers
The cooling cowls need to be securely attached to the engine.
Scooter Vista stocks Lambretta cylinder and flywheel cowl bolts and washers suitable for LI, SX, TV, DL and GP applications.
The standard cowl bolt is used in several locations around the cowls.
There are also extended versions available for situations where the original threads in the mag housing have been damaged or have insufficient engagement.

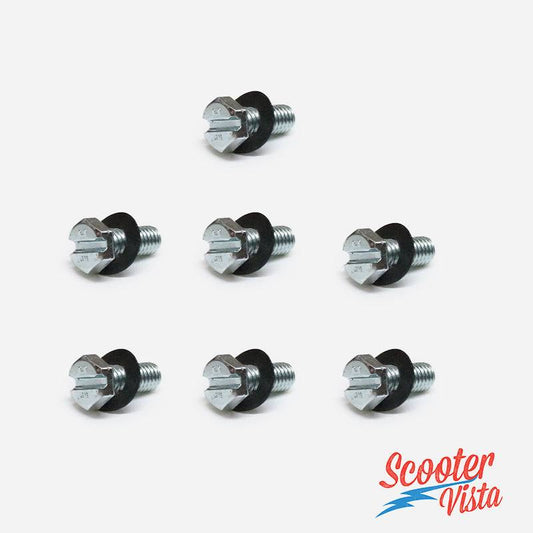

Lambretta Extended Cowl Bolts
Extended cowl bolts can be particularly useful when the threads in the mag housing have been damaged.
The longer bolt can reach further into the available thread than the original-length bolt.
This can provide a useful repair solution where there is still sufficient usable thread deeper in the mag housing.
However, always check bolt length carefully.
A bolt that is too long can cause problems if it bottoms out or interferes with components inside the engine.

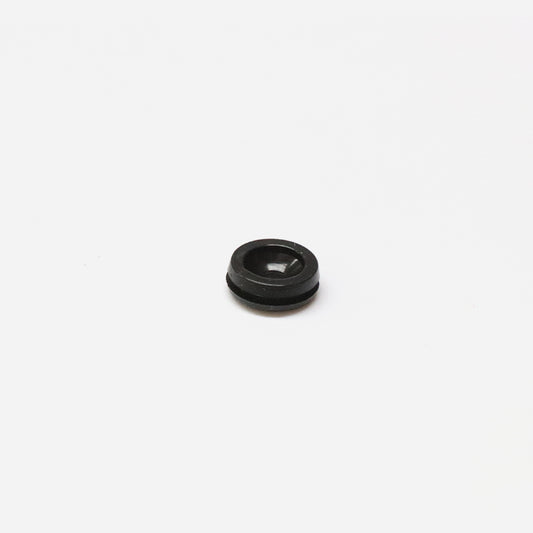

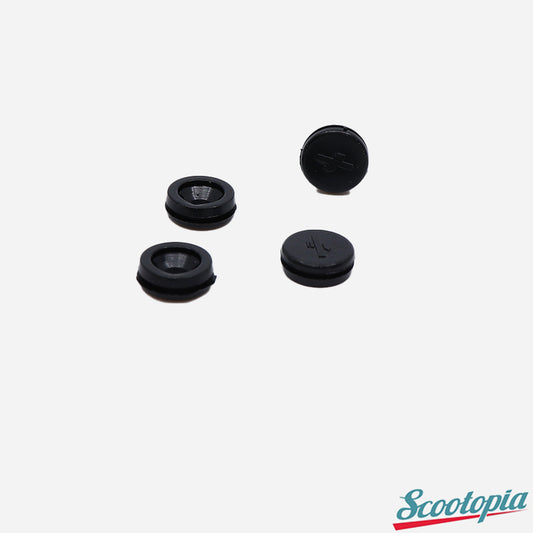

Lambretta Flywheel Cowl Vibration Grommets
The flywheel cowl is mounted to the engine and is exposed to engine vibration.
Rubber vibration grommets help isolate the cowl and reduce vibration.
Over time, the rubber can become:
- Hard
- Cracked
- Perished
- Flattened
- Missing
Scootopia supplies a set of four vibration grommets for LI, SX, TV, DL and GP applications.
If you're rebuilding an engine, replacing old cowl grommets is a simple way to improve the fit and reduce vibration.
Lambretta Mag Housing Gasket
The mag housing gasket sits between the mag housing and engine casing.
It provides an important sealing surface and should be replaced when the mag housing is removed during an engine rebuild.
Scootopia lists a specific Lambretta mag housing gasket within its cooling-system parts range.
When rebuilding an engine, make sure both mating surfaces are clean and free from old gasket material before fitting the new gasket.
Lambretta Cooling System Maintenance
The cooling system is relatively simple, but it should not be ignored during servicing.
Check:
- Flywheel cowl
- Cylinder head cowl
- Cowl bolts
- Washers
- Vibration grommets
- Mag housing gasket
- Flywheel fan
- Cylinder cooling fins
- Cylinder head cooling fins
Make sure the cooling cowls are securely fitted and that nothing is obstructing the airflow.
Lambretta Cooling Fins
The cylinder and cylinder head rely on their cooling fins to dissipate heat.
Dirt, oil, corrosion and debris can build up around the fins.
During an engine rebuild or major service, inspect the fins carefully.
Clean cooling fins can help maintain the effectiveness of the air-cooling system.
Be particularly careful with older cylinders and heads, as damaged or broken fins can affect cooling.
Lambretta Flywheel Fan
The flywheel fan generates the airflow used by the cooling system.
When inspecting the flywheel, check the fan area for:
- Damaged fins
- Cracks
- Loose components
- Excessive corrosion
- Foreign objects
- Signs of contact with the cowl
If the flywheel fan is damaged, it should not simply be ignored.
The fan is a fundamental part of the Lambretta's forced-air cooling system.
Lambretta Flywheel & Cowl Clearance
There should be sufficient clearance between the flywheel and the surrounding cowl.
If the cowl is bent or incorrectly positioned, it can come into contact with the rotating flywheel.
This can produce:
- Scraping noises
- Vibration
- Damage to the cowl
- Damage to the flywheel
- In severe cases, further engine damage
Always rotate the flywheel by hand after fitting the cowl to check for interference before starting the engine.
Lambretta Cooling Problems
If a Lambretta is running hotter than expected, don't immediately assume the problem is the carburettor or ignition.
The cooling system should also be checked.
Possible causes can include:
- Missing cylinder head cowl
- Missing flywheel cowl
- Damaged cowl
- Incorrect cowl
- Poor cowl fit
- Blocked cooling fins
- Damaged flywheel fan
- Incorrect flywheel/cowl combination
- Loose or missing cowl bolts
- Performance cylinder requiring a different cooling arrangement
A properly assembled cooling system is an important part of keeping the engine reliable.
Can You Run a Lambretta Without the Cowls?
It is not recommended to treat the cowls as optional components.
The flywheel fan and cowls work together to direct cooling air around the engine.
Running an engine without the correct cooling shrouds can alter the intended airflow and reduce cooling effectiveness.
If you're working on an engine, refit the correct cowls before running the scooter.
Lambretta Cooling System Restoration
If you're restoring a Lambretta, the cooling system is an area worth checking carefully.
A typical restoration checklist includes:
Flywheel side
- Flywheel
- Flywheel fan
- Flywheel cowl
- Cowl bolts
- Washers
- Vibration grommets
Cylinder side
- Cylinder head
- Cylinder
- Cooling fins
- Cylinder head cowl
- Cowl bolts
- Washers
Mag housing
- Mag housing
- Mag housing gasket
- Fixings
- Sealing surfaces
Replacing missing or damaged cooling components can make a significant difference to the finished engine.
Lambretta Cooling System Upgrades
Many Lambretta owners upgrade their engines while retaining the basic forced-air cooling system.
If you are fitting:
- A larger cylinder
- Performance exhaust
- Electronic ignition
- Performance carburettor
- TS1
- Imola
- Monza
- RT
- Mugello
- Other performance components
make sure the cooling arrangement remains appropriate.
A performance engine generally produces more heat, so maintaining good airflow becomes even more important.
Choosing the Correct Lambretta Cooling Part
Before ordering a cooling-system component, check:
Lambretta model
LI, SX, TV, DL or GP
Series
Engine capacity
Standard or performance cylinder
Flywheel type
Flywheel fin length
Cowl style
Original or modified engine
This is especially important when choosing flywheel and cylinder cowls because different Lambretta models use different designs.
Lambretta Cooling Parts for Engine Rebuilds
If you're rebuilding a Lambretta engine, it is worth checking all of the cooling components while everything is accessible.
Consider replacing:
- Flywheel cowl
- Cylinder head cowl
- Cowl bolts
- Cowl washers
- Vibration grommets
- Mag housing gasket
Small components such as bolts, washers and rubber grommets are inexpensive compared with the time involved in removing and refitting the engine.
Genuine & Specialist Lambretta Cooling Parts
At Scooter Vista, we stock a mixture of quality replacement and specialist Lambretta cooling components for LI, SX, TV, DL and GP models.
Our range includes components from manufacturers such as Scootopia, alongside other suitable replacement parts.
Whether you're restoring a completely original scooter or rebuilding a performance engine, our range is designed to help you find the cooling components required for your Lambretta.
Need Help Finding the Correct Lambretta Cooling Part?
Lambretta cooling components can vary between Series, models and engine specifications.
Before ordering, check your:
- Lambretta model
- Series
- Engine capacity
- Flywheel
- Cylinder
- Existing cowl
- Standard or performance specification
If you're unsure which flywheel cowl, cylinder head cowl, cowl bolt, vibration grommet or mag housing gasket you need, check the individual product description carefully or contact Scooter Vista for assistance.
Scooter Vista – Classic Lambretta & Vespa Parts Specialists
Scooter Vista specialises in classic Lambretta and Vespa parts, supplying components for restoration, servicing, engine rebuilding and performance upgrades.
From a replacement cowl bolt or vibration grommet to a complete Lambretta flywheel or cylinder head cowl, our range of Lambretta Cooling System Parts for LI, SX, TV, DL & GP is designed to help keep your classic Lambretta's engine properly cooled.
Browse the products below to find the correct Lambretta cooling cowls, mag housing gaskets, cowl bolts, washers and vibration grommets for your scooter.
