Welcome to the Scooter Vista range of Vespa PX, PE & T5 Fuel & Air Parts.
The fuel and air system is at the heart of any Vespa engine. Correct fuel flow, a clean air supply and a properly functioning carburettor are all essential for reliable starting, smooth running and good engine performance.
We stock a wide range of Vespa PX, PE and T5 fuel and air components, covering standard replacement parts, servicing components and parts suitable for engine rebuilds and performance upgrades.
Our range includes parts for:
- Vespa PX
- Vespa PE
- Vespa PX E
- Vespa EFL
- Vespa Lusso
- Vespa Arcobaleno
- Vespa T5
- Vespa Elestart
- Other compatible Vespa large-frame models
Our fuel and air parts include:
- Carburettors
- Carburettor rebuild kits
- Carburettor gaskets
- Carburettor tops
- Carburettor components
- Air filters
- Air filter boxes
- Air filter gaskets
- Fuel pipes
- Fuel pipe clips
- Fuel pipe grommets
- Carburettor rubbers
- Airbox components
- Carburettor screws and fixings
- Jets and carburettor tuning components
- Fuel and air system service parts
Whether you're rebuilding an original Vespa engine, servicing an existing carburettor or tuning a performance engine, choosing the correct fuel and air components is essential.
Always check the individual product description for exact model and application compatibility before ordering.
Vespa PX PE T5 Fuel & Air System
The Vespa fuel and air system has several components that need to work together correctly.
Fuel travels from the tank through the fuel tap and fuel pipe to the carburettor.
The carburettor then meters the fuel and mixes it with air before the mixture enters the engine.
The air filter and airbox help control and clean the air entering the carburettor.
A problem with any part of this system can affect engine performance.
Common symptoms include:
- Difficult starting
- Poor idle
- Hesitation
- Poor acceleration
- Excessive fuel consumption
- Engine cutting out
- Running too rich
- Running too lean
- Fuel leaks
- Air leaks
- Poor throttle response
For this reason, it is important to consider the complete fuel and air system rather than automatically replacing the carburettor.
Vespa PX PE T5 Carburettors
The carburettor is responsible for mixing fuel and air in the correct proportions for the engine.
Standard Vespa PX, PE and T5 engines use different carburettor specifications depending on the model, engine capacity and production year.
The correct carburettor can depend on:
- Engine capacity
- Model
- Year
- Autolube or premix
- Standard or performance engine
- Airbox specification
- Jetting
- Exhaust
- Cylinder
A carburettor from another Vespa may physically fit while still having different internal specifications.
Always check the carburettor type and jetting before assuming two units are interchangeable.
Vespa PX Carburettor Parts
A Vespa carburettor contains many small components.
Depending on the particular carburettor, these can include:
- Carburettor body
- Float

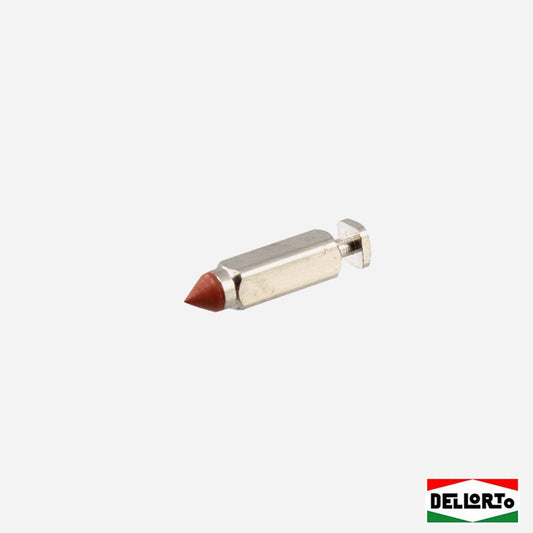

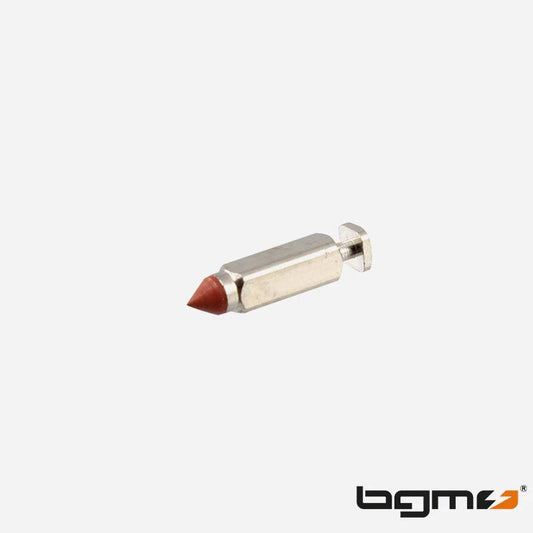

- Float needle
- Main jet
- Idle jet
- Atomiser
- Air corrector
- Slide
- Needle
- Choke mechanism
- Throttle mechanism
- Carburettor top
- Gaskets
- O-rings
- Screws
- Springs
- Washers
During an engine rebuild, it can be worthwhile completely stripping and inspecting the carburettor rather than simply cleaning the outside.

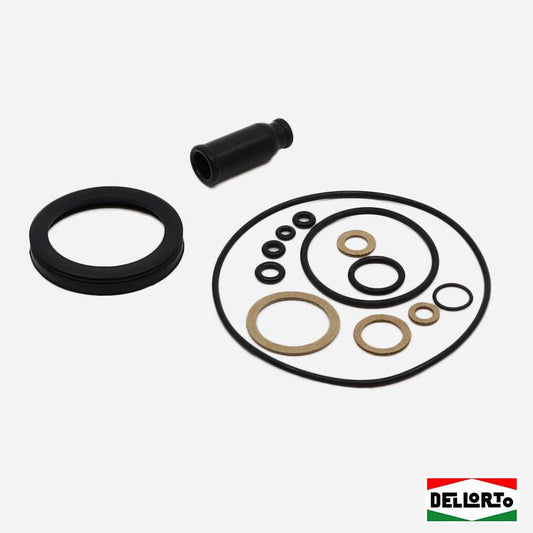

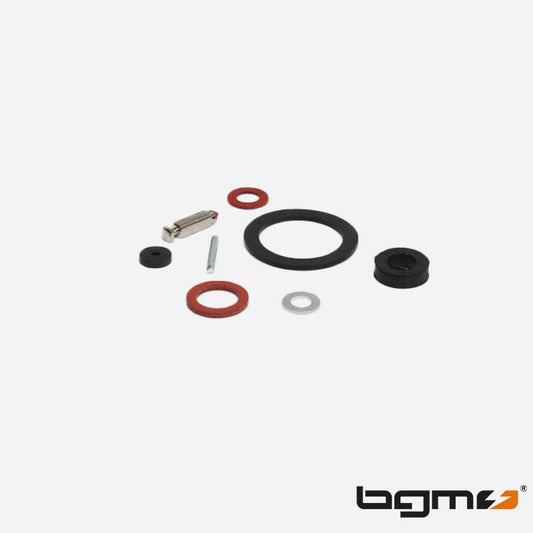

Vespa Carburettor Rebuild Kits
If your Vespa carburettor has been in service for many years, the seals and gaskets can become hard or damaged.
A carburettor rebuild kit can provide many of the small components required to refurbish the unit.
Depending on the kit, this can include:
- Gaskets
- O-rings
- Float needle
- Washers
- Sealing components
- Small carburettor hardware
A rebuild kit can be particularly useful when carrying out an engine restoration.
Always make sure the kit matches the exact carburettor fitted to your Vespa.
Vespa Carburettor Gaskets
Carburettor gaskets provide important sealing surfaces between the carburettor, airbox and engine components.
A damaged or incorrectly fitted gasket can result in:
- Air leaks
- Fuel leaks
- Poor running
- Difficult starting
- Incorrect mixture
- Unstable idle
Never reuse a badly damaged or compressed gasket simply because it appears to be intact.
During a carburettor rebuild, replacing the relevant gaskets is inexpensive insurance against future problems.
Vespa Carburettor Air Leaks
An air leak on the intake side can affect the air/fuel mixture.
Potential areas to check include:
- Carburettor gasket
- Carburettor-to-airbox seal
- Carburettor rubber
- Carburettor mounting
- Airbox gasket
- Intake manifold
- Engine-side seals
A scooter that is difficult to tune or has an unstable idle may have an air leak rather than simply having incorrect carburettor jetting.
Always investigate the mechanical condition of the intake system before making major jetting changes.

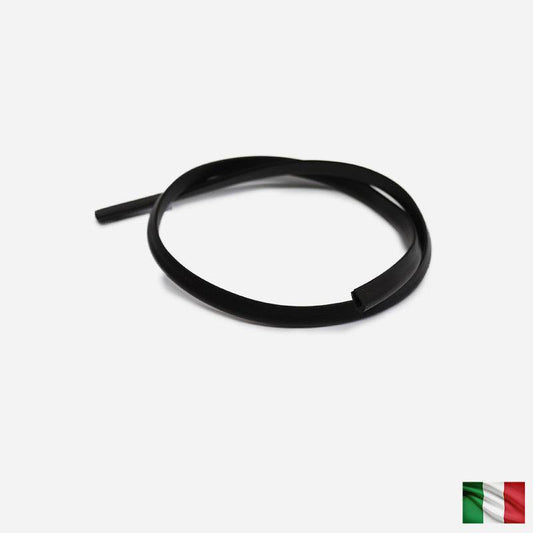

Vespa PX PE T5 Carburettor Rubbers
Rubber components around the carburettor and airbox can deteriorate with age.
Rubber can become:
- Hard
- Brittle
- Cracked
- Distorted
- Loose
Replacing old carburettor and intake rubbers can help restore a proper seal.
This is especially important on scooters that have been standing for long periods.

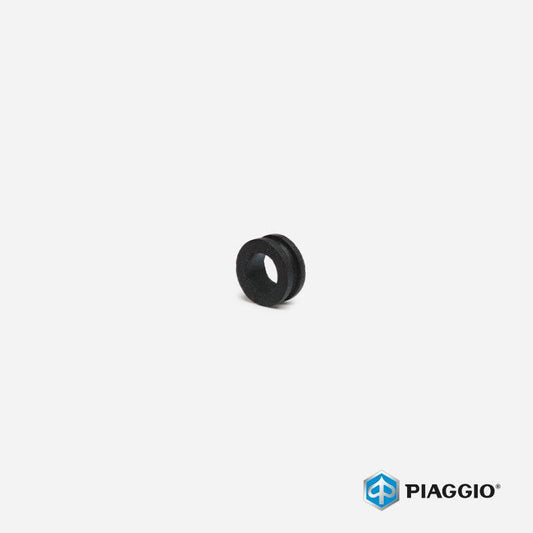

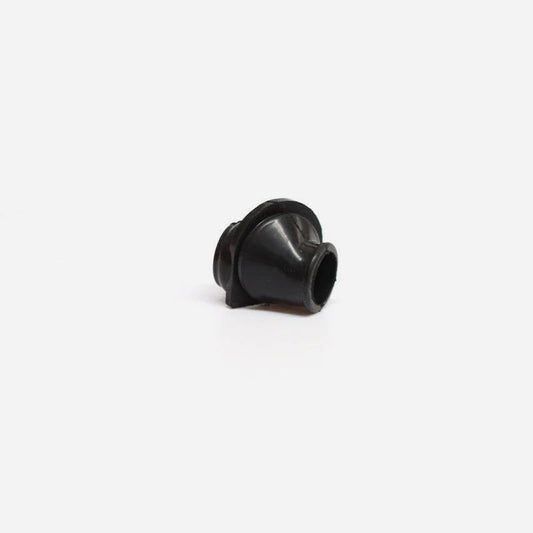

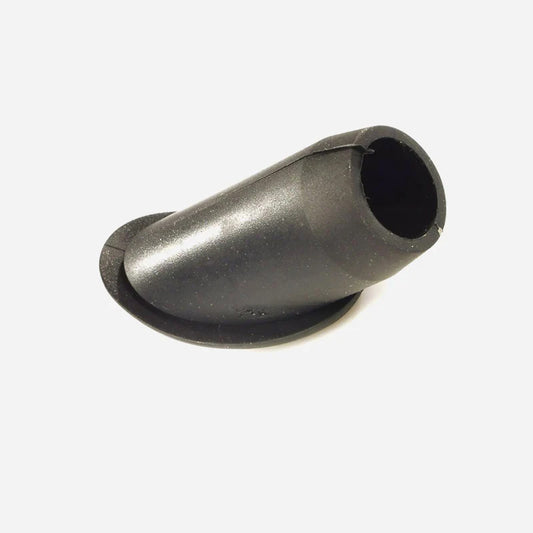

Vespa Carb Casing Fuel Pipe Grommet
One small but important component is the fuel pipe grommet where the pipe passes through the carburettor casing/airbox.
Scooter Vista stocks the genuine Piaggio Vespa carb casing/fuel pipe rubber grommet. It is specified across a wide range of Vespa models including P125X, P150X, P200E/PX, PX E, PX Lusso/EFL/Arcobaleno and T5.
This grommet protects the fuel pipe where it passes through the carburettor casing.
If you're replacing the fuel pipe, it is worth checking this grommet at the same time.
A hardened or damaged grommet can allow the fuel pipe to rub against the casing.

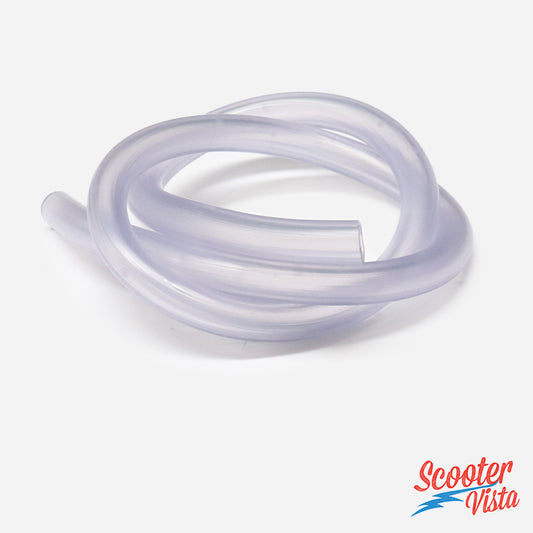

Vespa PX PE T5 Fuel Pipes
The fuel pipe connects the fuel tap to the carburettor.
Although it is a relatively simple component, the fuel pipe is critical to reliable operation.
An old fuel pipe can become:
- Hard
- Cracked
- Perished
- Restricted
- Too long
- Too short
- Contaminated internally
A damaged fuel pipe can result in fuel leaks or restricted fuel flow.
When replacing a fuel pipe, make sure it follows the correct route without sharp bends or kinks.
Vespa Fuel Pipe Length
Correct fuel pipe routing is particularly important on Vespa PX, PE and T5 models.
A pipe that is too long can develop loops or kinks.
A pipe that is too short can become tight when the tank or carburettor is moved.
The ideal installation should allow the fuel to flow freely while keeping the pipe securely routed.
Avoid unnecessary bends and make sure the pipe is not trapped between the tank and frame.
Vespa Fuel Pipe Clips
Fuel pipe clips help secure the pipe and prevent it from moving or coming away from its connection.
Whenever a fuel pipe is replaced, inspect the associated clips and connections.
Do not rely on a loose-fitting fuel pipe to remain secure simply because it appears tight.
Fuel leaks around a hot engine should always be treated seriously.

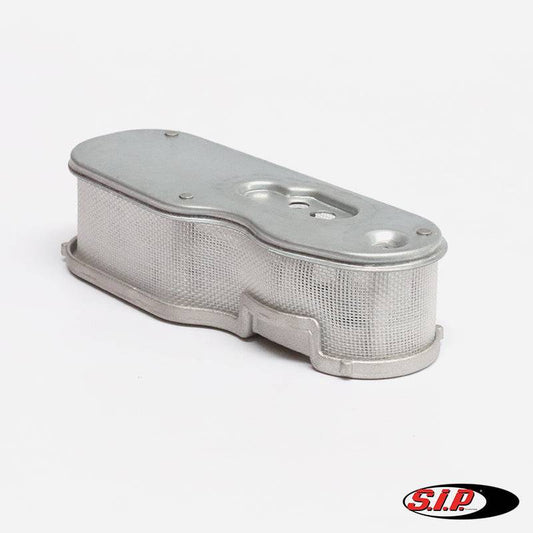

Vespa PX PE T5 Air Filters
The air filter helps prevent dirt and debris from entering the engine.
A clean and correctly fitted air filter can help provide a consistent air supply to the carburettor.
Depending on the carburettor and airbox arrangement, Vespa PX and T5 models can use different filter designs.
When replacing an air filter, check:
- Carburettor type
- Airbox
- Filter dimensions
- Filter mounting
- Standard or performance specification
Vespa Air Filter Maintenance
An air filter should be inspected as part of regular servicing.
A dirty or restricted filter can affect airflow and therefore alter the way the engine runs.
Check for:
- Dirt
- Oil contamination
- Damage
- Blockages
- Incorrect fitment
- Deteriorated filter material
If the filter is damaged or heavily contaminated, replacement is usually preferable to continuing to use it.
Vespa PX PE T5 Airbox Parts
The Vespa airbox forms part of the intake system.
It helps provide the carburettor with a controlled air supply while incorporating the air filter.
Scooter Vista stocks various Vespa PX, PE and T5 airbox and carburettor components, including gaskets, rubbers, filters and small replacement parts.
The airbox should be checked whenever the carburettor is removed.
Make sure:
- The airbox is secure
- The filter is correctly fitted
- Gaskets are in good condition
- Rubber components are not perished
- The fuel pipe passes correctly through its grommet
Vespa Carburettor Airbox Gaskets
The gasket between the carburettor and airbox is an important sealing component.
If it is damaged or missing, air can enter the intake system where it should not.
During carburettor servicing, always inspect the relevant gaskets and replace damaged components.
This is particularly important when rebuilding an engine or changing carburettor components.
Vespa PX PE T5 Carburettor Tops
The carburettor top contains and supports components associated with the throttle cable and slide.
Scooter Vista stocks replacement carburettor tops and associated components for suitable Vespa PX, PE and T5 applications.
A damaged carburettor top can cause problems with:
- Cable movement
- Throttle operation
- Slide movement
- Cable seating
When rebuilding a carburettor, inspect the top carefully for cracks, damage or worn threads.
Vespa Carburettor Jets
Jetting is particularly important when tuning a Vespa engine.
The correct jetting can depend on:
- Cylinder
- Carburettor
- Exhaust
- Air filter
- Airbox
- Engine capacity
- Ignition
- Altitude
- Fuel
- Riding conditions
A standard PX engine and a tuned performance engine should not automatically be expected to use the same jetting.
If you modify the engine, always check the carburettor setup rather than assuming the original jetting remains correct.
Vespa Carburettor Tuning
A properly tuned carburettor helps provide:
- Reliable starting
- Stable idle
- Good throttle response
- Smooth acceleration
- Correct mixture
- Efficient fuel consumption
Carburettor tuning should be approached systematically.
Before changing jets, make sure:
- The carburettor is clean.
- The fuel supply is unrestricted.
- The fuel pipe is in good condition.
- The air filter is clean.
- The airbox is correctly sealed.
- There are no intake air leaks.
- The ignition is correctly set.
- The engine is mechanically sound.
Changing jets cannot compensate for a mechanical fault elsewhere in the engine.
Vespa Running Rich
A Vespa running too rich may display symptoms such as:
- Poor throttle response
- Excessive smoke
- Poor fuel economy
- Fouled spark plug
- Hesitation
- Difficult starting when warm
Possible causes can include incorrect jetting, restricted air supply, a faulty choke mechanism or other carburettor problems.
Always diagnose the cause rather than simply fitting a smaller jet.
Vespa Running Lean
A lean mixture can cause poor running and potentially excessive engine temperature.
Possible causes include:
- Incorrect jetting
- Restricted fuel supply
- Air leak
- Incorrect carburettor setup
- Intake problem
A performance engine running too lean can be particularly vulnerable to overheating or engine damage.
If you're unsure about carburettor tuning, it is better to seek advice before continuing to ride the scooter.
Vespa Carburettor Cleaning
A dirty carburettor can cause a variety of running problems.
During cleaning, pay particular attention to:
- Main jet
- Idle jet
- Float needle
- Fuel passages
- Choke circuit
- Throttle slide
- Air passages
Do not assume that spraying the outside of the carburettor with cleaner is enough.
The internal passages need to be clean and free from contamination.
Vespa Fuel & Air Parts for Engine Rebuilds
If you're rebuilding a PX, PE or T5 engine, the fuel and air system should be inspected alongside the engine itself.
A sensible rebuild checklist includes:
Fuel system
- Fuel tap
- Fuel pipe
- Fuel pipe clips
- Fuel pipe grommet
- Carburettor inlet
Carburettor
- Carburettor body
- Float
- Float needle
- Jets
- Slide
- Choke
- Throttle mechanism
- Top
- Gaskets
- O-rings
Air system
- Airbox
- Air filter
- Airbox gasket
- Carburettor rubber
- Intake components
Replacing old seals, rubbers and gaskets while everything is accessible can help prevent problems later.
Vespa PX PE T5 Fuel & Air Problems
If your Vespa is difficult to start or running poorly, check the fuel and air system before buying expensive parts.
Engine won't start
Check:
- Fuel reaching the carburettor
- Fuel tap
- Fuel pipe
- Carburettor
- Choke
- Jets
- Air filter
- Spark plug
Engine cuts out
Check:
- Fuel flow
- Fuel pipe
- Tank vent
- Carburettor
- Float needle
- Idle circuit
Poor throttle response
Check:
- Carburettor
- Jetting
- Throttle slide
- Throttle cable
- Air filter
- Air leaks
Fuel leaking
Check:
- Carburettor
- Float needle
- Fuel pipe
- Fuel pipe connections
- Carburettor gaskets
- Fuel pipe grommet
Vespa Fuel & Air Parts for Standard Engines
For a standard PX, PE or T5 engine, the priority should normally be maintaining the original fuel and air arrangement in good condition.
This means:
- Correct carburettor
- Correct jets
- Clean air filter
- Good fuel pipe
- Good gaskets
- Good rubbers
- Correct airbox
- No intake leaks
Replacing worn components can often restore good running without making unnecessary modifications.
Vespa Fuel & Air Parts for Performance Engines
Performance engines require more attention to the fuel and air system.
Changing the:
- Cylinder
- Exhaust
- Carburettor
- Air filter
- Airbox
- Ignition
- Crankshaft
can change the engine's fuel requirements.
A larger carburettor or performance cylinder may require different jetting from a standard PX engine.
When upgrading an engine, consider the fuel and air system as part of the complete engine package.
Choosing the Correct Vespa Fuel & Air Part
Before ordering, check:
Vespa model
PX, PE or T5
Year
Engine capacity
Carburettor type
Autolube or premix
Standard or performance engine
Airbox type
Existing component
This is particularly important with carburettors, air filters, fuel pipes and carburettor components.
Two parts can look very similar while having different dimensions or applications.
Genuine Piaggio & Specialist Vespa Fuel Parts
At Scooter Vista, we stock a mixture of genuine Piaggio, Italian-made and quality aftermarket Vespa fuel and air components.
Our range includes parts from manufacturers and suppliers such as Piaggio, RMS, MEC EUR, SIP and other specialist scooter parts manufacturers.

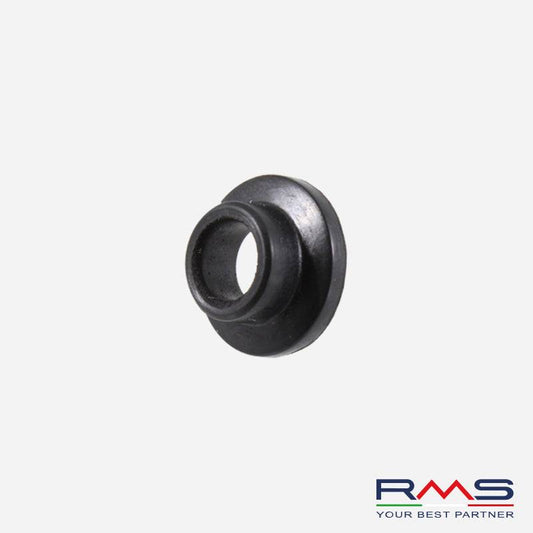

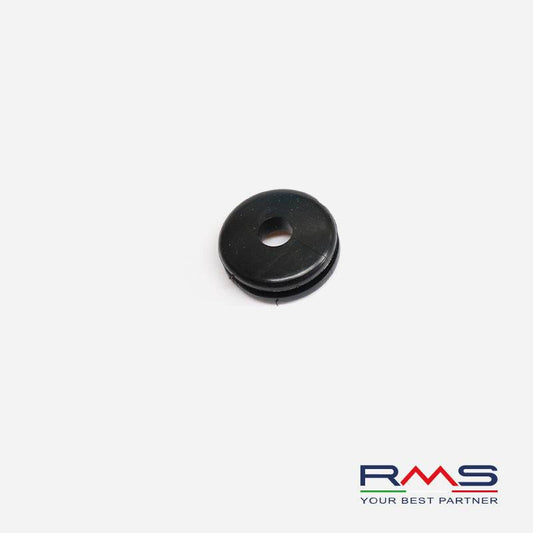

For example, genuine Piaggio fuel-pipe grommets are available alongside replacement fuel, carburettor and air-system components.
This gives restorers and riders a choice depending on whether they are looking for genuine replacement parts, quality aftermarket components or performance-oriented upgrades.
Need Help Finding the Correct Vespa Fuel & Air Part?
If you're unsure which part you need, identify your:
- Vespa model
- Year
- Engine capacity
- PX/PE/T5 specification
- Carburettor type
- Autolube or premix system
- Standard or modified engine
If you're replacing a carburettor, air filter, fuel pipe, carburettor gasket, airbox component or rubber, compare your existing part with the product description before ordering.
If your engine has been modified, tell us what cylinder, carburettor and exhaust you are using when asking for advice.
Scooter Vista – Classic Vespa & Lambretta Parts Specialists
Scooter Vista specialises in classic Vespa and Lambretta parts, supplying components for restoration, servicing, engine rebuilding and performance upgrades.
From a small fuel pipe grommet, carburettor gasket or air filter to a complete carburettor or performance fuel-system component, our range of Vespa PX PE & T5 Fuel & Air Parts is designed to help keep your classic Vespa running reliably.
Browse the range to find the Vespa PX, PE & T5 carburettor, air filter, fuel pipe, airbox, gasket, rubber and fuel-system parts you need.
Sold out
