Welcome to the Scooter Vista range of Lambretta Flywheel and Stator Parts for LI, SX, TV and GP models.

Whether you're restoring an original Lambretta, replacing a faulty stator, servicing an existing ignition system or upgrading to modern electronic ignition, we stock a range of Lambretta stators, flywheels, ignition components, contact breakers, condensers, coils, regulators and related electrical parts.

Our range covers popular Lambretta models including:

• Lambretta LI
• Lambretta LI Special
• Lambretta TV
• Lambretta SX
• Lambretta GP
• Series 1, Series 2 and Series 3 models where applicable

We stock products from specialist manufacturers and suppliers including Scootopia, BGM, MEC EUR, Vape, Varitronic and other established Lambretta parts manufacturers.

Always check the exact model, crankshaft taper and ignition specification before ordering, as Lambretta electrical components are not universally interchangeable.

Lambretta Stator Plates

The stator plate is a key component of the Lambretta ignition and electrical system.

Depending on the ignition system fitted, the stator can contain the coils and components required to generate electrical power and produce the ignition signal.

Scooter Vista stocks Lambretta stator plates and replacement stator components for a range of LI, SX, TV and GP applications.

A faulty or damaged stator can cause symptoms including:

• No spark
• Weak spark
• Difficult starting
• Intermittent ignition
• Engine cutting out
• Misfiring
• Lighting problems
• Charging problems

When diagnosing an electrical fault, it is important to check the complete ignition system rather than automatically assuming the stator is faulty.

Lambretta Electronic Stator Plates

Modern electronic ignition systems have become a popular upgrade for classic Lambrettas.

Electronic ignition eliminates many of the maintenance requirements associated with traditional contact-breaker systems and can provide a more consistent ignition system when correctly installed and set up.

Depending on the system, an electronic ignition setup can include:

• Stator plate
• Flywheel
• CDI
• Regulator
• Wiring
• HT lead
• Ignition coil components

Different electronic ignition systems can also offer different electrical outputs and ignition characteristics.

Always check the specification of the complete ignition system before mixing replacement components from different systems.

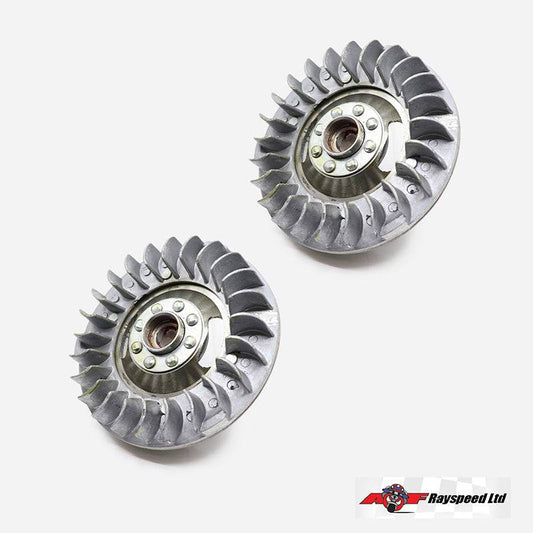

Lambretta Flywheels

The flywheel works together with the stator to generate electrical power and operate the ignition system.

On electronic ignition systems, the flywheel contains magnets that work with the stator and pickup to produce the required ignition signal.

A Lambretta flywheel must be correctly matched to the crankshaft taper and ignition system.

This is particularly important when comparing LI/SX/TV and GP applications.

The LCGB notes that LI, Series 1/2/3, LI Special, TV and SX models use the LI/SX type taper, while GP models use a thicker taper and require the appropriate GP-type ignition components.

Lambretta LI, SX & TV Flywheels

LI, SX and TV models commonly use the LI/SX/TV type crankshaft taper, making it important to select the correct flywheel for the crankshaft and ignition system being used.

Replacement flywheels are available for different electronic ignition systems, including systems such as Varitronic and Vape.

For example, replacement Li/TV/SX flywheels are specifically listed for compatible Varitronic systems, while Vape also offers a dedicated Li/TV/SX flywheel.

Always check whether the replacement flywheel is intended for your specific ignition system.

Lambretta GP Flywheels

The Lambretta GP uses a different crankshaft taper from the LI/SX/TV type.

This means GP flywheels should not simply be assumed to fit LI, SX or TV engines, and vice versa.

If converting a GP to electronic ignition, make sure the complete ignition system is suitable for the GP crankshaft taper.

Replacement GP flywheels are available for systems including Varitronic and Vape.

Lambretta Contact Breakers & Condensers

Many classic Lambrettas were originally fitted with traditional contact-breaker ignition systems.

For these scooters, the contact breakers and condenser are important components of the ignition system.

Worn or incorrectly adjusted points can result in:

• Poor starting
• Weak spark
• Misfiring
• Poor running
• Incorrect ignition timing
• Complete loss of ignition

A faulty condenser can also contribute to ignition problems.

If you're restoring an original Lambretta and retaining the points ignition system, inspect the condition of the contact breakers, condenser, wiring and associated components.

Replacement contact breakers and condensers are available for a variety of Lambretta stator configurations.

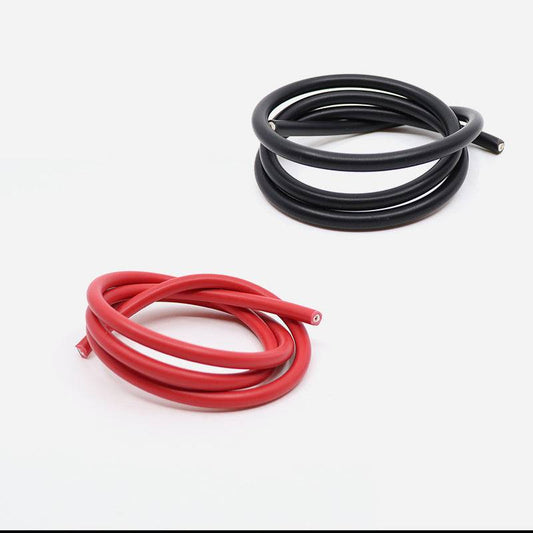

Lambretta Ignition Coils & HT Components

The ignition system must be able to produce a strong and reliable spark at the spark plug.

Depending on the ignition system, this can involve components such as:

• Ignition coil
• CDI
• HT lead
• HT cap
• Spark plug
• Stator
• Flywheel

If your Lambretta has no spark, these components should all be considered during diagnosis.

Do not automatically replace the stator without checking the rest of the ignition circuit.

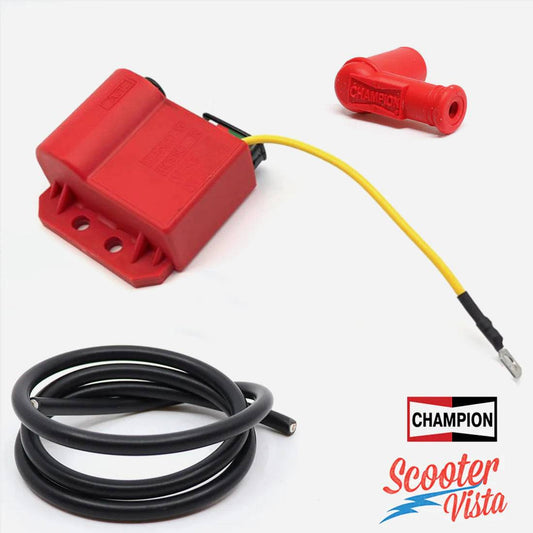

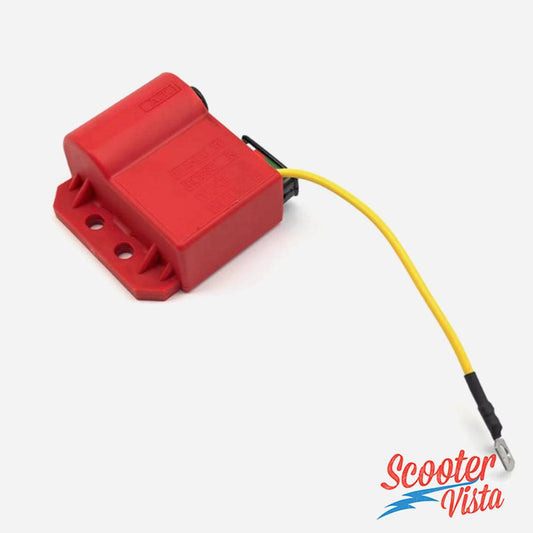

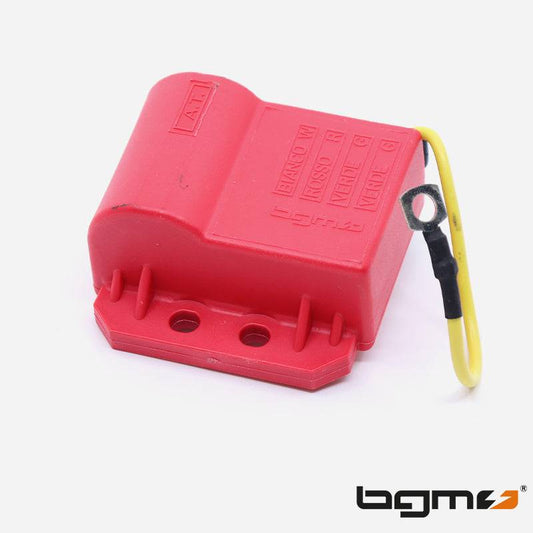

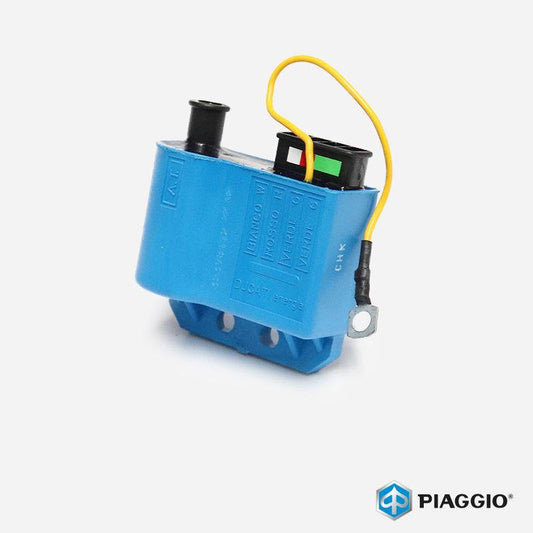

Lambretta CDI Units

Electronic ignition systems use a CDI unit or equivalent electronic ignition control unit to manage the ignition process.

Scooter Vista stocks replacement and performance ignition components for suitable Lambretta applications.

When replacing a CDI, make sure it is compatible with the specific stator and flywheel system fitted to your scooter.

Different electronic ignition systems can use different CDI and regulator arrangements, so components should not be mixed unless the manufacturer confirms compatibility.

Lambretta Regulator & Regulator/Rectifier Units

The regulator controls the electrical output produced by the ignition system.

Depending on the electrical configuration, a Lambretta may use:

• AC regulator
• DC regulator/rectifier
• Combined regulator/rectifier

The correct unit depends on the ignition system and whether the scooter uses an AC or DC electrical setup.

For example, modern electronic ignition systems can be available with either AC or DC power output depending on the system selected.

Always check the electrical specification before replacing a regulator.

Lambretta Variable Timing Electronic Ignition

Variable-timing electronic ignition is a popular choice for performance and tuned Lambretta engines.

Unlike a fixed-timing system, the ignition timing can change as engine speed increases.

This can provide useful characteristics for performance engines and can be particularly beneficial when the ignition system has been selected as part of a complete tuned engine setup.

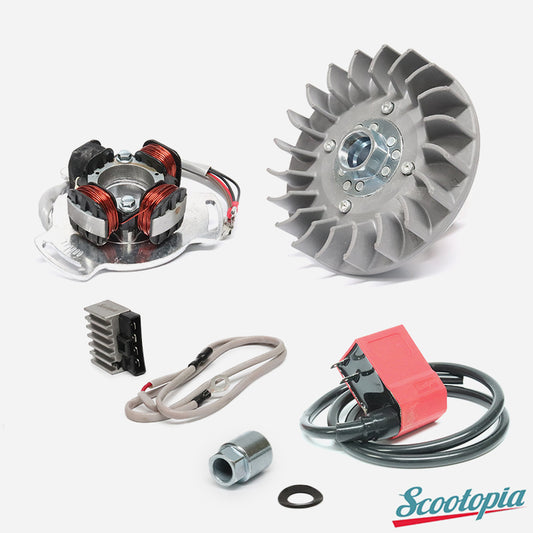

Scootopia's LI/SX/TV electronic ignition system, for example, uses variable ignition timing and is designed for performance and tuned engines.

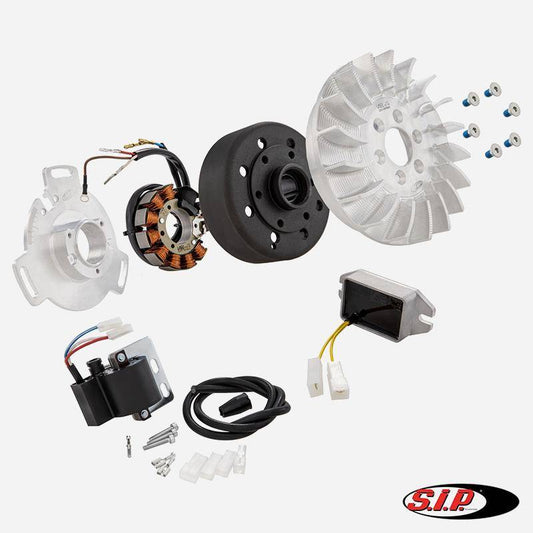

Lambretta Vape Electronic Ignition

Vape electronic ignition systems are another modern option for Lambretta owners.

Vape systems are available for different Lambretta crankshaft types and electrical configurations.

Depending on the system, features can include:

• Electronic ignition
• Fixed ignition timing
• AC or DC output
• Lightweight flywheel
• Integrated fan
• CDI
• Regulator or rectifier

The Vape Road system available for LI/SX/TV applications, for example, uses a fixed ignition point and is available in an AC configuration for non-battery scooters.

Always check the exact system specification before ordering.

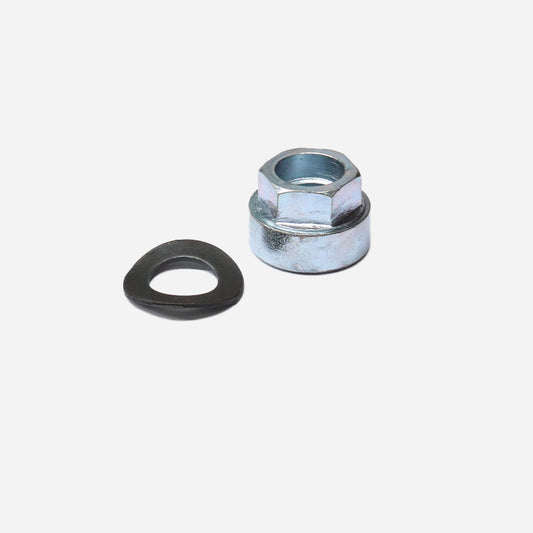

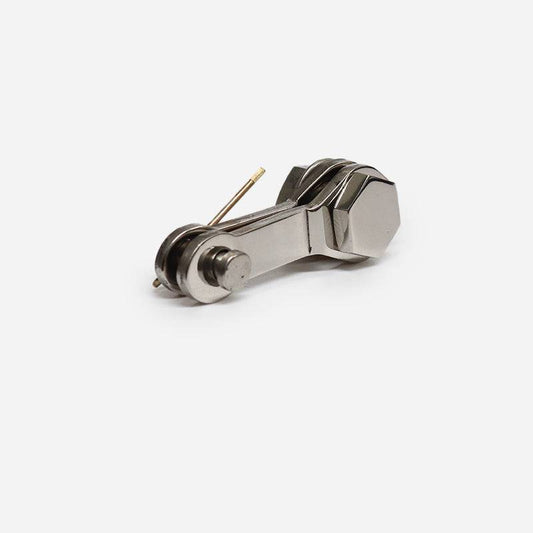

Lambretta Flywheel Nuts & Washers

The flywheel is secured to the crankshaft using the appropriate retaining hardware.

Scooter Vista stocks Lambretta flywheel nuts, washers and related fitting components for suitable applications.

The correct nut and washer are important because different flywheel and ignition systems can require different hardware.

For example, specialist suppliers list specific deeper flywheel nuts for certain Li/TV/SX Varitronic applications.

Always check the manufacturer's recommended fitting hardware for your particular ignition system.

Lambretta Flywheel Keys

The flywheel key helps locate the flywheel correctly on the crankshaft.

Before fitting a flywheel, inspect:

• Woodruff key
• Crankshaft keyway
• Flywheel keyway
• Crankshaft taper
• Flywheel taper

If the key or keyway is damaged, the flywheel may not locate correctly and ignition timing can be affected.

The key should not be used to compensate for a damaged or incorrectly fitting crankshaft taper.

Always ensure the flywheel is correctly seated on the taper.

Lambretta Flywheel Fans

Original and electronic ignition systems can use different flywheel fan arrangements.

Modern electronic ignition systems can use lightweight flywheels with integrated or separate fan systems.

For example, Varitronic systems use replacement nylon fans, while Vape systems use their own flywheel/fan arrangements.

When replacing a fan, make sure it is designed specifically for the flywheel system being used.

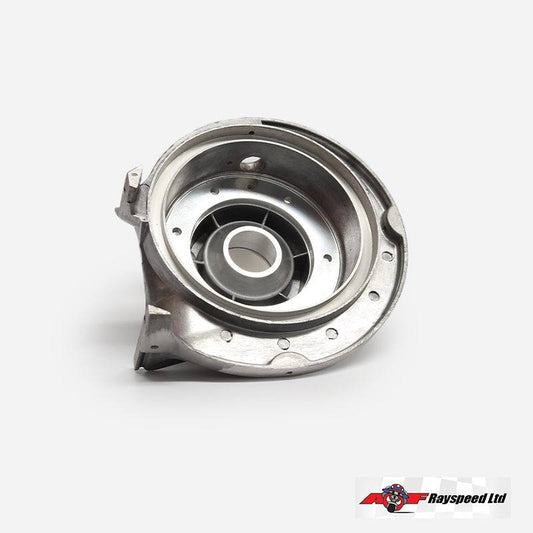

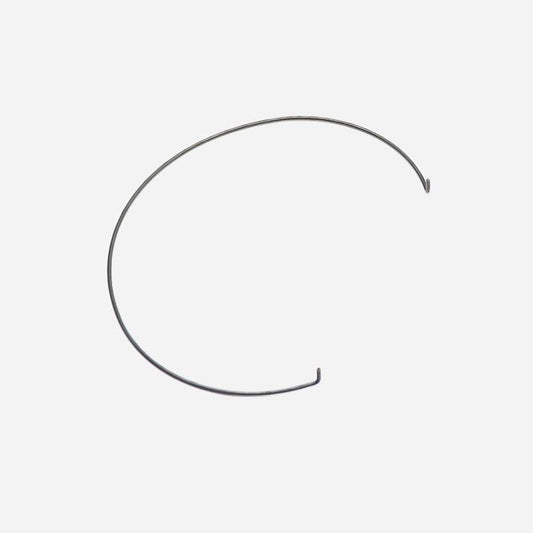

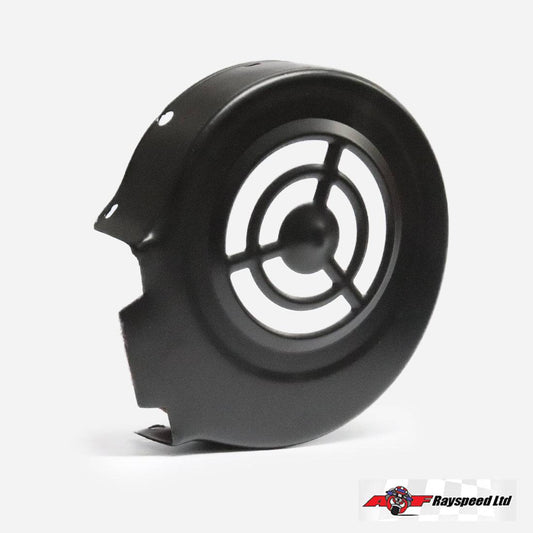

Lambretta Flywheel Dust Covers

The flywheel dust cover helps protect the ignition system and flywheel area from dirt and debris.

During an engine rebuild or restoration, inspect the dust cover for:

• Damage
• Corrosion
• Incorrect fit
• Missing components

Replacement dust covers are available for different Lambretta flywheel and stator configurations, including Ducati 4-pole and 6-pole systems.

Lambretta Stator Wiring & Grommets

The wiring leaving the stator passes through the engine casing and needs to be correctly protected.

A damaged grommet or incorrectly routed wire can allow the wiring to become:

• Chafed
• Pinched
• Cut
• Exposed to heat
• Damaged by moving components

Whenever the flywheel and stator are removed, inspect the wiring and grommets carefully.

Replacing a small damaged grommet can prevent much bigger electrical problems later.

Lambretta Electrical Problems

If your Lambretta has an electrical or ignition fault, don't immediately replace the flywheel or stator.

Start by checking the complete system.

No spark

Check:

• Spark plug
• HT cap
• HT lead
• Ignition coil or CDI
• Stator
• Wiring
• Earth connections
• Flywheel
• Contact breakers where fitted
• Condenser where fitted

Engine cutting out

An intermittent electrical fault can be caused by:

• Broken stator wiring
• Loose connections
• Faulty pickup
• CDI problems
• Regulator issues
• Poor earth
• Contact-breaker problems

Poor running

Check:

• Ignition timing
• Stator condition
• Flywheel
• Pickup
• HT system
• Spark plug
• Carburettor and fuel system

A systematic diagnosis is usually much better than replacing electrical components one at a time.

Lambretta Ignition Timing

Correct ignition timing is essential for reliable Lambretta engine operation.

Incorrect timing can cause:

• Difficult starting
• Poor performance
• Misfiring
• Excessive engine temperature
• Engine damage in extreme cases

The correct timing specification depends on the engine and ignition system.

Some modern electronic ignition systems use fixed/static timing, while others provide variable ignition timing.

Always follow the ignition manufacturer's timing instructions and verify the final timing with suitable equipment.

Choosing the Correct Lambretta Flywheel & Stator

Before ordering a flywheel or stator, check:

Lambretta model
Series
Engine capacity
Crankshaft type
Crankshaft taper
Ignition system
Points or electronic ignition
AC or DC electrical system
Battery or non-battery setup
Flywheel manufacturer/system

This is especially important when dealing with GP versus LI/SX/TV applications.

If you're unsure, compare the existing components with the product description and manufacturer's specifications before ordering.

Original Points Ignition or Electronic Ignition?

For a restoration, there are two main approaches.

Keep the original ignition

If originality is the priority, retaining the original points ignition system may be the preferred option.

This allows the scooter to retain its traditional electrical and ignition arrangement.

Upgrade to electronic ignition

Electronic ignition can provide a modern alternative and reduce some of the maintenance associated with contact breakers and condensers.

It can also be an attractive option for performance engines or scooters being used regularly.

The best choice depends on the scooter, engine specification and owner's requirements.

Lambretta Electrical Parts for Engine Rebuilds

If you're rebuilding a Lambretta engine, the ignition system should be inspected before the engine goes back into the frame.

Check:

• Stator
• Flywheel
• Crankshaft taper
• Woodruff key
• Flywheel nut
• Washer
• Wiring
• Grommets
• Ignition coil
• CDI
• Regulator
• HT lead
• HT cap
• Contact breakers where fitted
• Condenser where fitted

Replacing worn electrical components while the engine is apart can save considerable time later.

Genuine & Specialist Lambretta Electrical Parts

At Scooter Vista, we stock a mixture of quality replacement, restoration and performance electrical components for classic Lambrettas.

Our range includes products from specialist manufacturers and suppliers such as Scootopia, BGM, MEC EUR, Vape and Varitronic.

Where applicable, individual product descriptions provide information about:

• Model compatibility
• Crankshaft type
• Ignition type
• Flywheel specification
• Electrical output
• AC or DC operation
• Battery/non-battery application
• Manufacturer
• Original part number

This information is particularly important when choosing Lambretta electrical components.

Need Help Finding the Correct Lambretta Flywheel or Stator?

Lambretta ignition systems can vary considerably between models and engine specifications.

Before ordering, check your:

• Lambretta model
• Series
• Engine capacity
• Crankshaft
• Crankshaft taper
• Existing stator
• Existing flywheel
• Ignition type
• Electrical system

If you're unsure which flywheel, stator or electronic ignition system you need, check the individual product description or contact Scooter Vista for assistance.
