Scootopia Lambretta DL GP 12v Electronic Kit (variable timing / D.C. output)

Scootopia Lambretta DL GP 12v Electronic Kit (variable timing / D.C. output)

Regular price £155.00 GBP
Regular price Sale price £155.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Excess postage costs reimbursed to the customer

Scootopia Lambretta 12v Electronic Kit (for GP Crank)

Scootopia Lambretta LI SX TV DL GP  12v Electronic Kit.

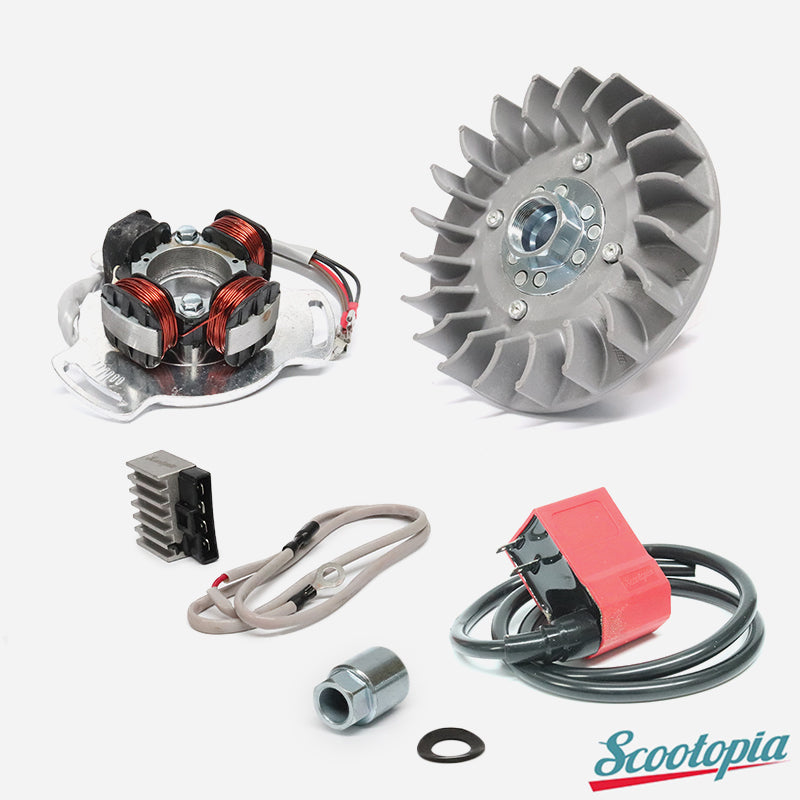

This kit consists of a Flywheel with plastic fins, Stator Plate, Flywheel Nut & Washer, CDI, Regulator, Fitting Tool & loom with connectors.

Some characteristics of the kit:

  • 2.12kg 2 Part flywheel (standard length plastic fins).
  • Optional DC output.
  • Removable HT lead from CDI.
  • 9 Stud centre boss.
  • Correct electrical connectors fitted.
  • 8 Degrees Advance or Retard (engine/barrel kit depending).
  • Set up at 25 Degrees before top dead centre.



Like both the SIP Vape kit, Casatronic & Varitronic our variable electronic kits give your engine an 8 Degree advance or retard timing set up. This allows the ignition timing to adjust at high or low revs resulting in a better performing engine. We have set a weight of approx. 2.1kg for the flywheel. For use with standard Scooters only. You also have the option of using a DC output, allowing you to charge up your phone, e cigarette or run a Sat Nav. We have also added an extra centre boss stud on the flywheel giving it 9 studs for extra strength.


SCOOTOPIA VARIABLE ELECTRONIC INSTALLATION INSTRUCTIONS



Tools Needed:

  • 8mm socket (Fan Cover Bolts).
  • 10mm socket (Stator Bolts).
  • 17mm socket (Flywheel Nut).
  • 19mm socket (most flywheel pullers).
  • Torque Wrench (for flywheel nut, 50-55 ft lbs.)
  • TDC Tool (if you want to double check timing).
  • Timing Disc (if you want to double check timing).
  • Timing Light/Strobe Gun (if you want to double check timing).



Contents of your Variable Electronic Ignition Kit box:

  • Stator attached to backing plate with wiring.
  • Rotor with Fan attached.
  • CDI with HT Lead (HT Lead can be unscrewed and changed if ever needed).
  • Regulator / Rectifier.
  • Red Battery feed wire (with Ring and Spade connector).
  • Flywheel nut with washer.
  • Spanner (extended).
  • HT Cap.
