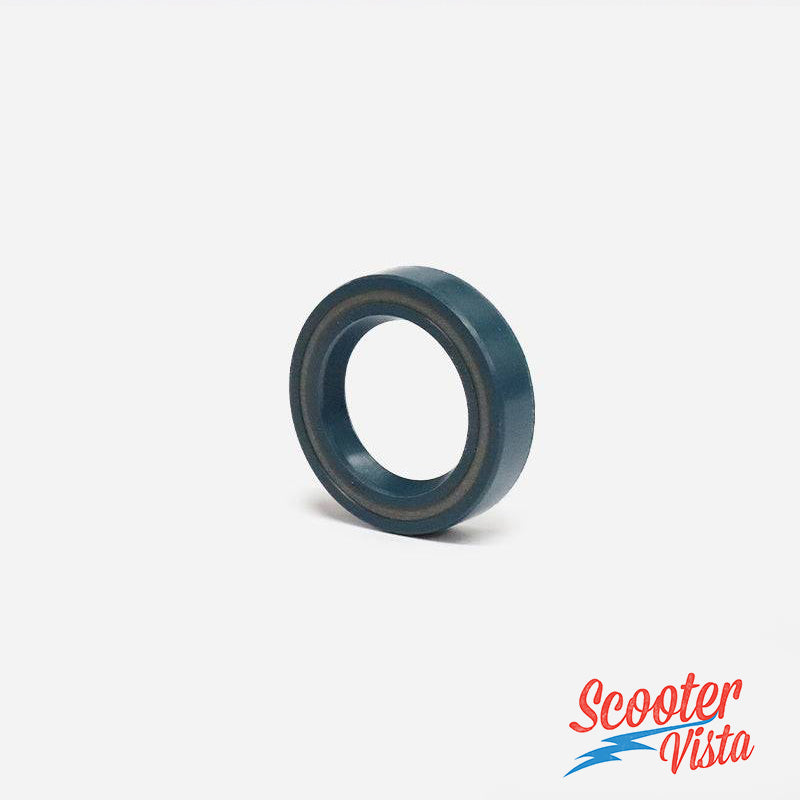

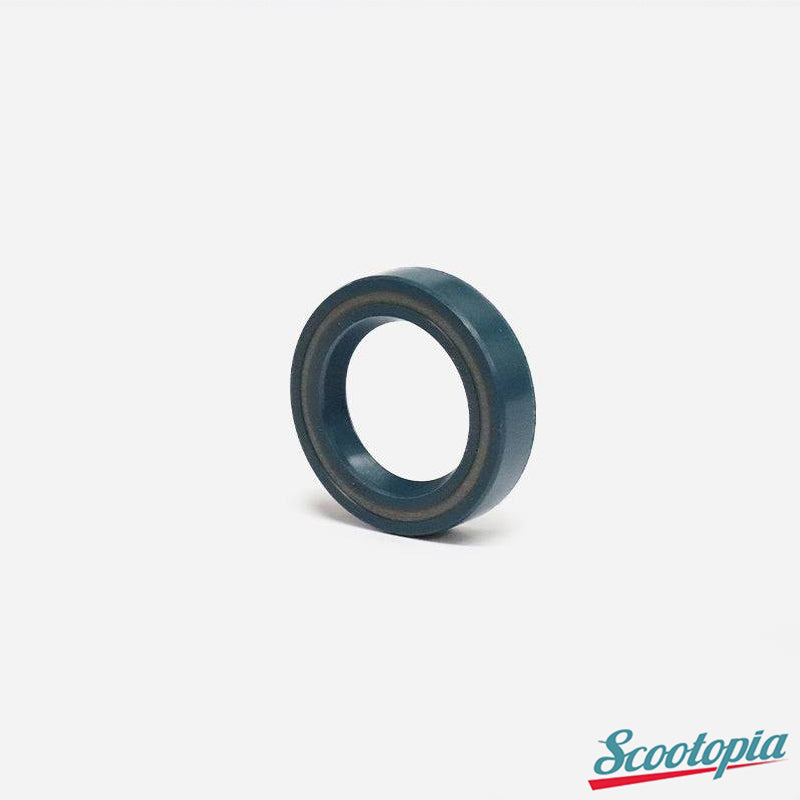

Scootopia 27x42x10/7 Vespa PX PE T5 Rear Hub Oil Seal (Late)

£2.25 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Excess postage costs reimbursed to the customer

Product variants

Quantity

Scootopia 27x42x10/7 Vespa PX PE T5 Rear Hub Oil Seal (Late internal)

Scootopia 27x42x10/7mm rear hub oil seal for late Vespa PX, PE and T5 models. A quality replacement seal designed for the rear hub assembly, helping prevent gearbox oil from escaping and contaminating the rear brake.

The rear hub oil seal is an important part of the Vespa engine and gearbox assembly. If the seal becomes hard, worn or damaged with age, gearbox oil can leak past the seal and make its way into the rear brake area.

This late-style 27x42x10/7mm oil seal is ideal when servicing or rebuilding the rear hub on applicable Vespa PX, PE and T5 models.

🔧 Key Features

Scootopia quality replacement part
27x42x10/7mm rear hub oil seal
Late type rear hub seal
Designed for applicable Vespa PX, PE and T5 models
Helps prevent gearbox oil leakage
Helps protect the rear brake from oil contamination
Ideal for engine servicing, maintenance and restoration
A useful replacement when rebuilding or servicing the rear hub

🛵 What Vespa Models Does It Fit?

This Scootopia 27x42x10/7mm Rear Hub Oil Seal (Late) is suitable for:

Vespa PX
Vespa PE
Vespa T5

This is the late-type rear hub oil seal, so it is important to check the seal currently fitted to your scooter and confirm the correct size and type before ordering.

📏 Oil Seal Size

27mm x 42mm x 10/7mm

Inner diameter: 27mm
Outer diameter: 42mm
Overall profile: 10/7mm

The stepped 10/7mm profile is an important identification feature when selecting the correct rear hub oil seal.

🛠️ Why Replace the Rear Hub Oil Seal?

A worn rear hub oil seal can allow gearbox oil to escape from the engine and hub assembly. If oil reaches the rear brake, it can contaminate the brake components and potentially reduce braking performance.

When rebuilding a Vespa engine or rear hub, replacing an old oil seal is sensible preventative maintenance. It is particularly worthwhile on a scooter that has been standing for a long period, as older seals can become hard and lose their ability to seal correctly.

If you have noticed oil around the rear hub or brake area, the condition of the rear hub oil seal should be checked as part of the investigation.

🔧 Ideal for Vespa Servicing & Restoration

Whether you're carrying out routine maintenance, rebuilding a PX engine or undertaking a full restoration, using the correct rear hub oil seal is essential.

The Scootopia 27x42x10/7mm late rear hub oil seal provides a straightforward replacement for the applicable late-style Vespa rear hub arrangement.

🔍 Scooter Vista – Classic Vespa Parts

Scooter Vista stocks a wide range of Vespa PX, PE and T5 engine, gearbox, clutch, brake and rear hub parts, including oil seals and other components for servicing, repairs and classic Vespa restoration.

This is the Deep Style Hub Oil Seal mainly used on the Later P Range models.

Models this will fit:

VESPA COSA 1	'88-'91
VESPA T5 Classic	'92-'95
VESPA 150 GL Touring (DK)	'57-'58
VESPA Hoffmann M24 Königin	'54-'55
VESPA 150	'54-'57
VESPA 125	'51-'53
VESPA PX125 CAT	'07-
VESPA 125	'48-'50
VESPA PX125 E '98 / Millenium	'98-'05
VESPA 150 (T1/150) (D)	'55
VESPA 150 (T2/150) (D)	'56
VESPA COSA 2	'90-'96
VESPA COSA 2	'91-
VESPA PX150 2011	'11-
VESPA COSA 2	'91-
VESPA 125	'52-'54
VESPA Hoffmann C	'54
VESPA COSA 1	'87-'90
VESPA Hoffmann A/B	'50-'53
VESPA PX200 E '98 / Millenium	'98-'05
VESPA COSA 1	'88-'91
VESPA 150 (T3/150) (D)	'57-'59
VESPA 125	'54-'57
VESPA 150	'57-'58
VESPA T5 / Elestart	'85-'90
VESPA PX125 2011/ 30 Jahre	'11-
VESPA PX150 E '98 / Millenium	'98-'05
VESPA ACMA 125	'51-'58
VESPA ACMA 150 GL	'56-'58
