Scootopia 30x47x6 Vespa Sprint Super PX PE T5 Rear Hub Oil Seal (30mm)

£2.00 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Excess postage costs reimbursed to the customer

Product variants

Quantity

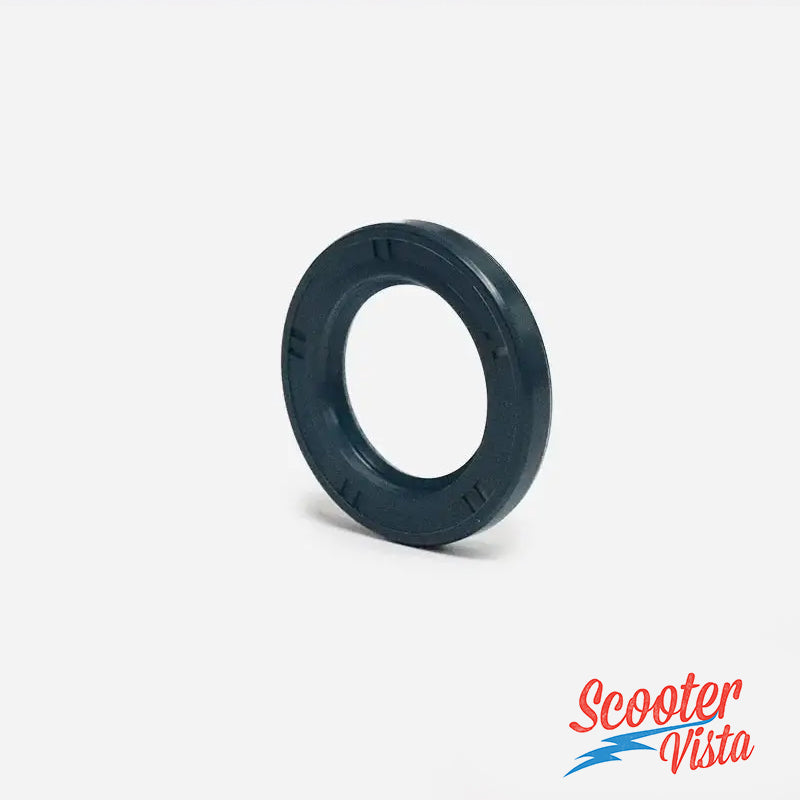

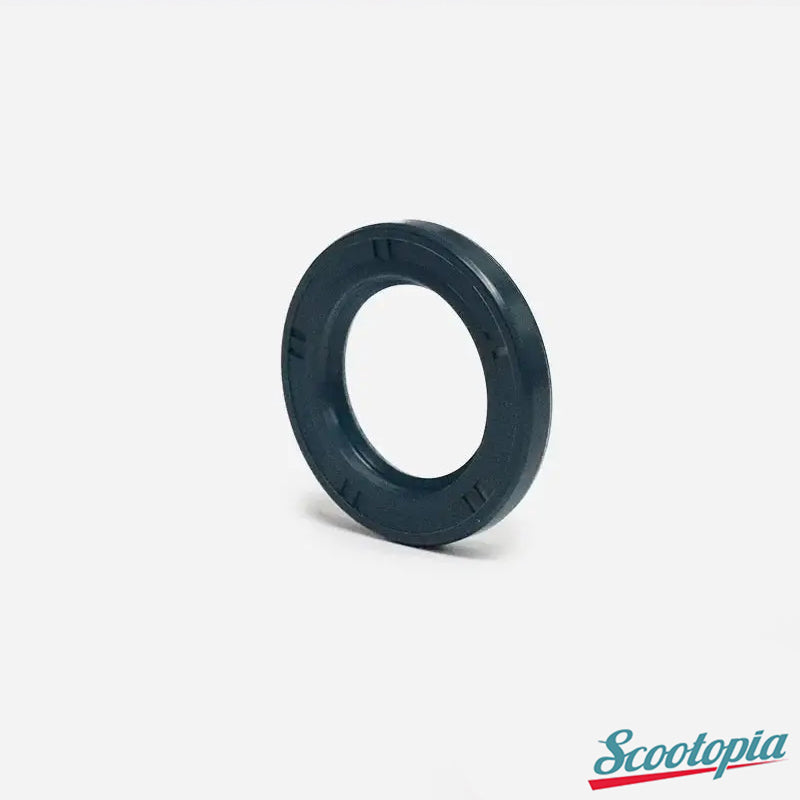

Scootopia 30x47x6mm rear hub oil seal for Vespa Sprint, Super, PX, PE and T5 models with a 30mm rear hub setup. A quality replacement oil seal designed to help prevent gearbox oil from escaping from the rear hub and contaminating the rear brake.

The rear hub oil seal is an important part of the Vespa engine and gearbox assembly. As seals age, the rubber can harden or the sealing lip can become worn, allowing gearbox oil to leak into the rear hub and brake area.

This 30x47x6mm rear hub oil seal is a useful replacement when servicing, repairing or rebuilding the rear hub on the applicable Vespa models.

🔧 Key Features

Scootopia quality replacement part
30x47x6mm rear hub oil seal
30mm inner diameter
Suitable for applicable Vespa Sprint, Super, PX, PE and T5 models
Helps prevent gearbox oil leakage
Helps protect the rear brake from oil contamination
Ideal for engine servicing and rear hub rebuilds
Suitable for classic Vespa restoration projects

🛵 What Vespa Models Does It Fit?

This Scootopia 30x47x6mm Rear Hub Oil Seal is suitable for applicable:

Vespa Sprint
Vespa Super
Vespa PX
Vespa PE
Vespa T5

Please check the existing seal and rear hub specification before ordering, as different Vespa models and production versions can use different rear hub oil seal sizes.

The 30mm inner diameter is an important identification point for this seal.

📏 Oil Seal Size

30mm x 47mm x 6mm

Inner diameter: 30mm
Outer diameter: 47mm
Width: 6mm

Always check the dimensions of the existing seal when replacing a Vespa rear hub oil seal, particularly when working on a scooter that has been modified or fitted with replacement engine or hub components.

🛠️ Why Replace the Rear Hub Oil Seal?

A worn or damaged rear hub oil seal can allow gearbox oil to escape from the engine and rear hub assembly.

If oil reaches the rear brake, it can contaminate the brake components and potentially affect braking performance. Oil around the rear hub or brake area is therefore something that should not be ignored.

Replacing the oil seal is good practice when rebuilding an engine or rear hub, particularly if the existing seal is old or has been disturbed during dismantling.

A fresh seal can help provide the correct barrier between the gearbox oil and the rear brake assembly.

🔧 Ideal for Servicing & Restoration

Whether you're carrying out routine maintenance, rebuilding a classic Vespa engine or undertaking a full restoration, fitting the correct rear hub oil seal is an important part of the job.

This Scootopia 30x47x6mm rear hub oil seal provides a quality replacement for the applicable 30mm rear hub arrangement.

🔍 Scooter Vista – Classic Vespa Parts

Scooter Vista stocks a wide range of Vespa Sprint, Super, PX, PE and T5 engine, gearbox, clutch, brake and rear hub parts, including oil seals and other components for classic Vespa servicing, repairs and restoration.

Before purchasing, it is always good to double check the size of the Vespa Rear Hub Oil Seal you have taken out

Models this will fit:

VESPA 150 Super	'65-'79
VESPA 150 Super	'65-'79
VESPA COSA 1	'87-'90
VESPA COSA 1	'88-'91
VESPA COSA 1	'88-'91
VESPA ET2	'96-'02
VESPA ET2 Cat (euro 2)	'00-'02
VESPA ET2 i.e.	'98-'00
VESPA ET4	'98-'02
VESPA ET4 alt	'96-'99
VESPA ET4 alt	'96-'99
VESPA LX / LX Touring	'05-'13
VESPA LX 2V	'05-'09
VESPA LX 4V / LX Touring 4V	'09-'13
VESPA LX Touring	'10-'13
VESPA LXV	'06-'09
VESPA P150 S	'78-'90
VESPA P150X / PX150 E	'78-'85
VESPA P200E / PX200 E	'77-'83
VESPA Primavera	'13-'16
VESPA Primavera / Touring 4V	'13-'17
VESPA Primavera 3V / Touring Euro4	'17-'18
VESPA PX 80 E Lusso/ Elestart	'83-'93
VESPA PX 80 E Lusso/ Elestart	'83-'93
VESPA PX100 E	'83-'84
VESPA PX125 E	'81-'83
VESPA PX125 E Lusso/EFL/Arcobaleno / Elestart	'83-'97
VESPA PX150 E Lusso/EFL/Arcobaleno / Elestart	'83-'97
VESPA PX200 E Lusso/ EFL/ Arcobaleno / Elestart	'83-'97
VESPA PX200 E Lusso/ EFL/ Arcobaleno / Elestart	'83-'97
VESPA S / S College / S Sport	'07'12
VESPA S / S Sport 4V	'08-'13
VESPA S 2V	'10-'12
VESPA Sprint / Sport	'14-'16
VESPA Sprint 3V Euro4	'17-'20
VESPA Sprint 4V	'14-'17
VESPA T5 / Elestart	'85-'90
VESPA T5 Classic	'92-'95
