BGM Lambretta LI SX TV DL GP Rear Hub Bearing & Oil Seal

BGM Lambretta LI SX TV DL GP Rear Hub Bearing & Oil Seal

£30.00 GBP

£30.00 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Excess postage costs reimbursed to the customer

Product variants

Quantity

BGM Lambretta LI SX TV DL GP Rear Hub Bearing & Oil Seal

BGM Lambretta LI SX TV DL GP Rear Hub Bearing & Oil Seal to fit all Lambretta Series 1,2,3 LI SX TV DL GP models.

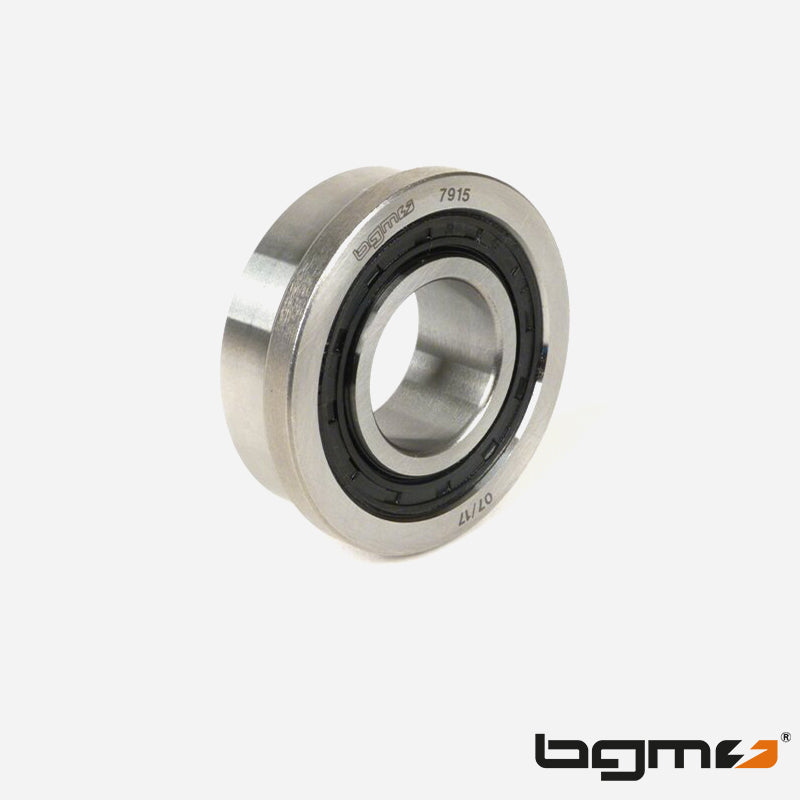

Special rear wheel bearing from BGM PRO for Lambretta engines from series 1 to 3.
The special bearing manufactured exclusively for the Lambretta has an integrated oil seal.
There is no need to fit the shaft seal ring with the BGM bearing, the high-quality sealing ring (NBR) is already fitted.

The bearing clearance is adapted to the mounting characteristics of Lambretta engines. When fully assembled, it is still sufficiently large without the bearing running too tightly. The high-quality sealing in combination with the precise tolerancing of the bearing clearance creates a solid basis for a very long service life.

MOUNTING
To mount the bearing, heat the motor housing (hot air gun) and cool the bearing (icebox or ice spray). As soon as the bearing is mounted and has been heated by the hot motor housing, the main shaft can be inserted.

The permissible torque must be observed when subsequently fitting the end shield.
Due to their design, the slender M6 stud bolts tilt outwards if the tightening torque is too high, which can damage the motor housing.
A guide value of 4.7 - 5.2 Nm is specified for the four stud bolts.
