BGM Tuning Vespa

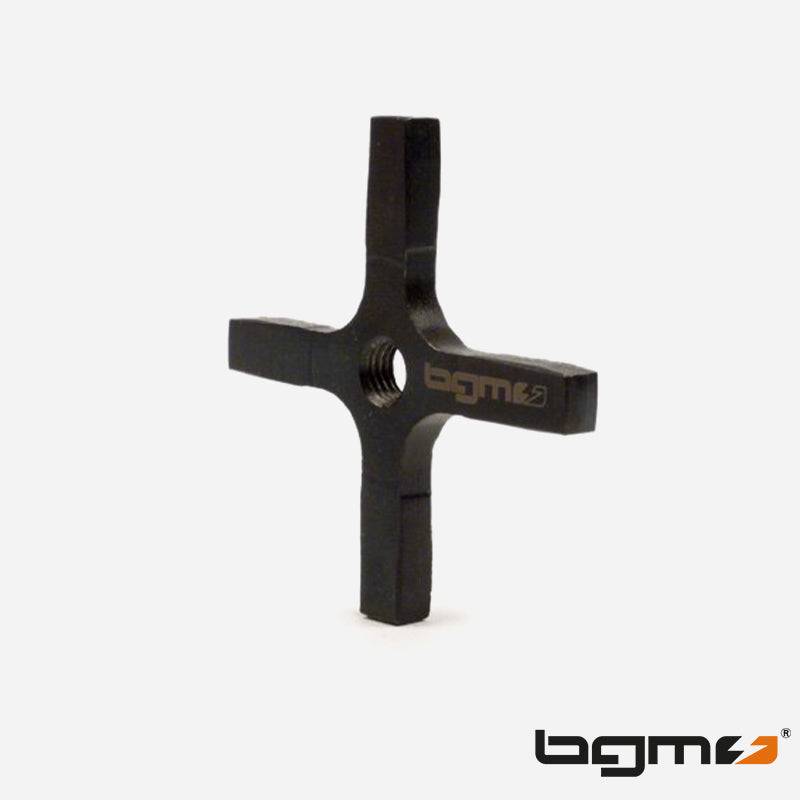

BGM PRO V2 Sport Vespa P Range M.Y. EFL T5 & Cosa Hardened Cruciform

BGM PRO V2 Sport Vespa P Range M.Y. EFL T5 & Cosa Hardened Cruciform

Regular price $22.00 USD
Regular price Sale price $22.00 USD
Sale Sold out
Shipping calculated at checkout.

NEW - BGM PRO SPORT gearshift cross with three-zone hardening

The BGM PRO SPORT shift cross has now a three-zone hardening.
Elastic inside - maximum resistance outside

  • Inside up to 45HRC

  • Middle 50-55HRC

  • Outside 58-60HRC

BGM PRO uses a very good basic material - a 15CrMo5 (SCM415) chrome molybdenum steel. This case hardening steel is already tough by itself, but due to its alloying elements (chromium, manganese, nickel, molybdenum) it is also very wear resistant.

The additional, complex three-zone hardening provides increased wear resistance on the one hand, while maximizing protection and durability of the gear components on the other. It is therefore ideally suited to the high demands of today's high-performance and high-torque engines. The technical principle behind it goes from an elastic inner core to a firmer middle section to the stable and resistant outer flanks that engage with the gear wheel.

Compared to a simple hardening (same hardness over the entire component) of a conventional gearshift cross, the BGM PRO SPORT offers significant advantages.
It resists coarser shifters due to the elastic core, and at the same time the flanks are very resistant to wear.

With HRC 58-60, the BGM PRO SPORT is at the hardness level of gear sprockets. This is the upper limit we recommend for a gear cross. Our analyses showed that the available shift crosses of other suppliers have partly clearly higher degrees of hardness (over HRC70!). In a conventional and old-fashioned design such as the wedge gearbox in the Vespa engines, this leads to the fact that the shifting cross is still in good shape after decades, but the gearwheels wear out excessively quickly. BGM PRO therefore follows the original design idea of Piaggio and lets the shifting cross instead of the gearwheels be the component that absorbs the forced wear of such a gearbox design.

For optimized durability of all transmission components, the following things should be paid attention to on the large frame engines:

  • Shift detent without noticeable wear (roller bracket of the detent must have no play in the bearing).

  • Correctly distance the gearbox during the engine overhaul (maximum play should not exceed 0.4mm, we recommend staying well below this (ideal: 0.1mm))

  • meshing surfaces of the gearshift cross in the gearwheels should be flat

  • Combination type gearwheels / shifting cross / shifting key must fit to each other (do not mix PX old (cranked shifting cross) and PX Lusso (flat shifting cross))

  • The thread in the gearshift cross is a left-hand thread. To loosen the bolt, therefore, unscrew it clockwise.

Will fit models:

LML Star 125 2T/ DLX / Via Toscana / Deluxe
LML Star 125 4T / Deluxe 125 4S / Speedy / Stella
LML Star 150 2T / DLX / Via Toscana / Star / Stella / Belladonna RV
LML Star 150 4T / Deluxe 150 4S / Speedy / Stella
LML Star 200 4T/ Deluxe 4S 2012
VESPA COSA 1 '88-'91
VESPA COSA 1 '87-'90
VESPA COSA 1 '88-'91
VESPA COSA 2 '90-'96
VESPA PX 80 E Lusso/ Elestart '83-'84
VESPA PX 80 E Lusso/ Elestart '83-'84
VESPA PX125 2011/ 30 Jahre '11-
VESPA PX125 CAT '07-
VESPA PX125 E '98 / Millenium '98-'05
VESPA PX125 E Lusso/EFL/Arcobaleno / Elestart '83-'97
VESPA PX150 2011 '11-
VESPA PX150 E '98 / Millenium '98-'05
VESPA PX150 E Lusso/EFL/Arcobaleno / Elestart '83-'97
VESPA PX200 E '98 / Millenium '98-'05
VESPA PX200 E Lusso/ EFL/ Arcobaleno / Elestart '83-'97
VESPA T5 / Elestart '85-'90
VESPA T5 Classic '92-'95
