BGM Tuning Vespa

BGM Vespa Sprint Rally PX T5 Large Frame Crankshaft / Clutch Shim

£5.89 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Excess postage costs reimbursed to the customer

Product variants

Quantity

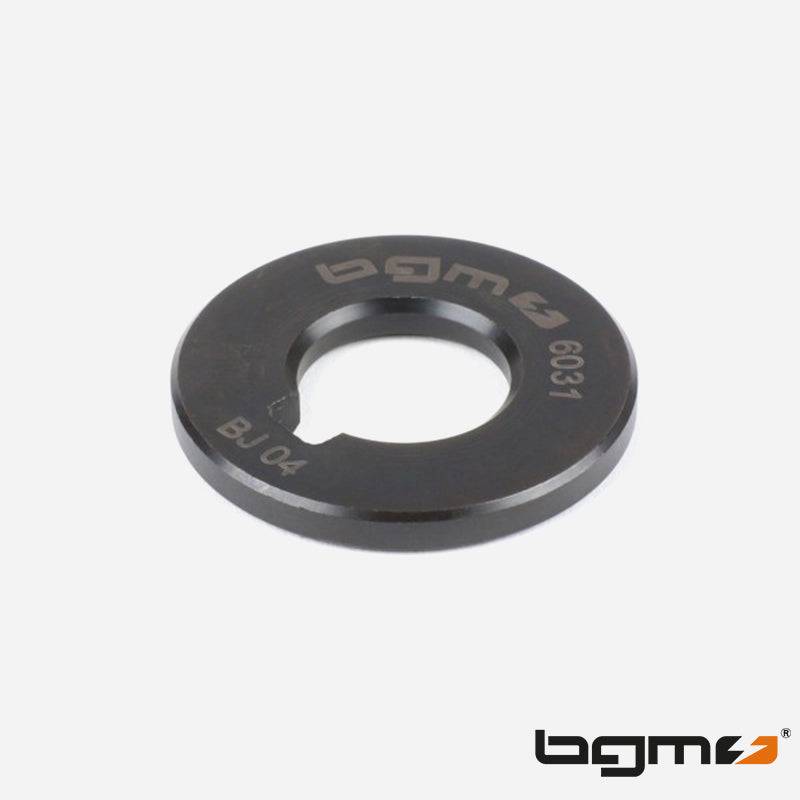

BGM Vespa PX PE T5 & Large Frame Crankshaft / Clutch Shim 34.5x15.5x3.3mm. (Non Auto Lube Models).

Vespa PX PE T5 Crankshaft / Clutch Shim / Washer on crankshaft under clutch of bgm Pro

This Vespa PX PE T5 Crankshaft / Clutch Shim washer sits between crankshaft and clutch has three very important functions:

To create a controlled preload between the crankshaft and the ball bearing
To provide a sliding bearing surface for the clutch pinion during clutch operation
To create the correct distance between the clutch and the bearing so that the gearing is aligned with the primary wheel and the correct distance to the clutch cover is maintained

PROBLEMS OF THE ORIGINAL DISC
Depending on the residue of the crankshaft stub in the ball bearing, the Vespa PX PE T5 Crankshaft / Clutch Shim Washer in large-frame engines is exposed to very high bending moments. Under unfavourable circumstances (disc was mounted the wrong way round, crankshaft has a lot of residue, too high a tightening torque on the clutch), even the otherwise good original Piaggio discs are overstrained and tear/break.

SOLUTION BY BGM PRO DISC
The bgm Pro Vespa PX PE T5 Crankshaft / Clutch Shim Washers correspond in their dimensions to those of the original Piaggio components, but are made of extremely tough but sufficiently elastic material. They also have radii on both sides, which prevents incorrect assembly. In addition, the bgm Pro washer has radii in the groove for the crescent wedge. With the original Piaggio part, the sharp edges initially cause the crack to form. This effect no longer exists with the bgm thrust washer.

Models this Vespa PX PE T5 Crankshaft / Clutch Shim will fit:

Vespa (Motovespa) Vespa 200 DS (engine 9DS)

Vespa (Motovespa) PX 150 Iris (engine 75M)

Vespa (Motovespa) PX 200 Iris (engine 73M)

Vespa (Motovespa) PX 200 Iris (engine 76M)

Vespa (Motovespa) PX 200 Iris (engine 77M)

Vespa (Motovespa) PX 125 T5 Sport (engine 98M)

Vespa (Motovespa) TX 200

Vespa (Piaggio) PX 125 T5 (VNX5T)

Vespa (Piaggio) Vespa 180 Rally (VSD1T)

Vespa (Piaggio) Vespa 200 Rally (VSE1T, Femsa)

Vespa (Piaggio) P 125 X (VNX1T, -1983)

Vespa (Piaggio) PX 125 E (VNX2T, 1981-1983)

Vespa (Piaggio) P 200 E (VSX1T, -1980)

Vespa (Piaggio) PX 200 E (VSX1T, 1981-1983)

Vespa (Piaggio) P 80 X (V8X1T, -1983)

Vespa (Piaggio) PX 80 E FL (V8X1T, 1983-)
