MB Scooters Lambretta LI SX TV DL & GP M6-M8 Repair Tail Pipe / Sidecase Stud

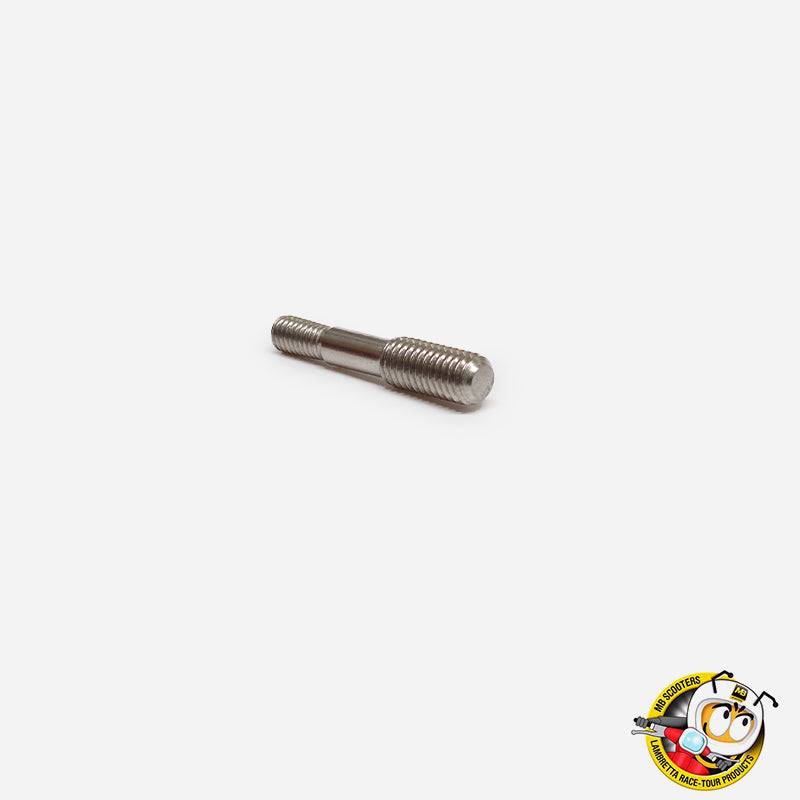

MB Scooters Stainless Steel Lambretta Sidecase Stud for all Lambretta Series 1 2 3 LI SX TV DL & GP models.

A  really simple idea from Mark Broadhurst

This Stainless Steel steppped stud can repair the lower exhaust tailpipe thread that usually pulls outs.

Most people dont have a Heicoil or Timesert kit as they are expensive, this is a cheaper repair.

All you need is a drill, 6.5 or 7mm drill bit and a 8 x 1.25mm tap which most have or can borrow.

Drill out the hole, tap down to slightly shorter than the measurement of the 8mm end and screw in the stud by locking two 6mm nuts together, tap it a bit at a time so when its home tight the flat edge is flush with the gasket face.

On final fitting use loctite, a cheap quality method of repairing old threads.

We used 8mm in the casing as this can also repair some threads already repaired which have also gone wrong in the past.

This product will fit Lambretta models:

• Lambretta Series 1 LI125, LI150, TV175.
• Lambretta Series 2 LI125, LI150, TV175.
• Lambretta Series 3 LI125, LI150, LI150 Special, 125 Special, SX150, SX200, TV175, TV200.
• Lambretta DL/GP125, DL/GP150, DL/GP200. (excluding late models)
