MB Scooters Lambretta LI SX TV DL & GP Rear Hub Bearing Plate (various)

MB Scooters Lambretta LI SX TV DL & GP Rear Hub Bearing Plate (various)

Regular price £8.50 GBP
Regular price Sale price £8.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Excess postage costs reimbursed to the customer

size

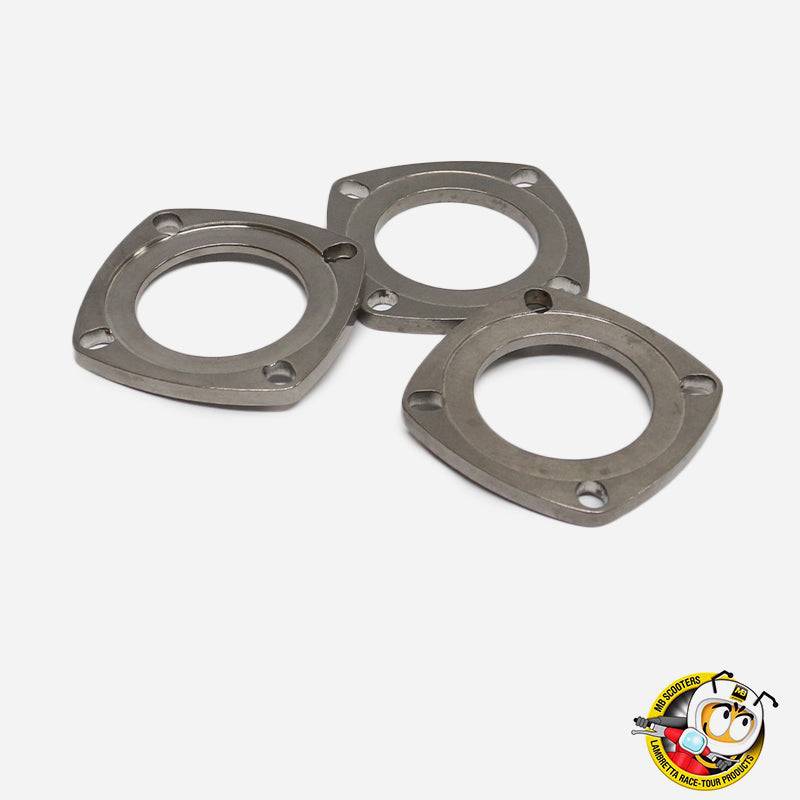

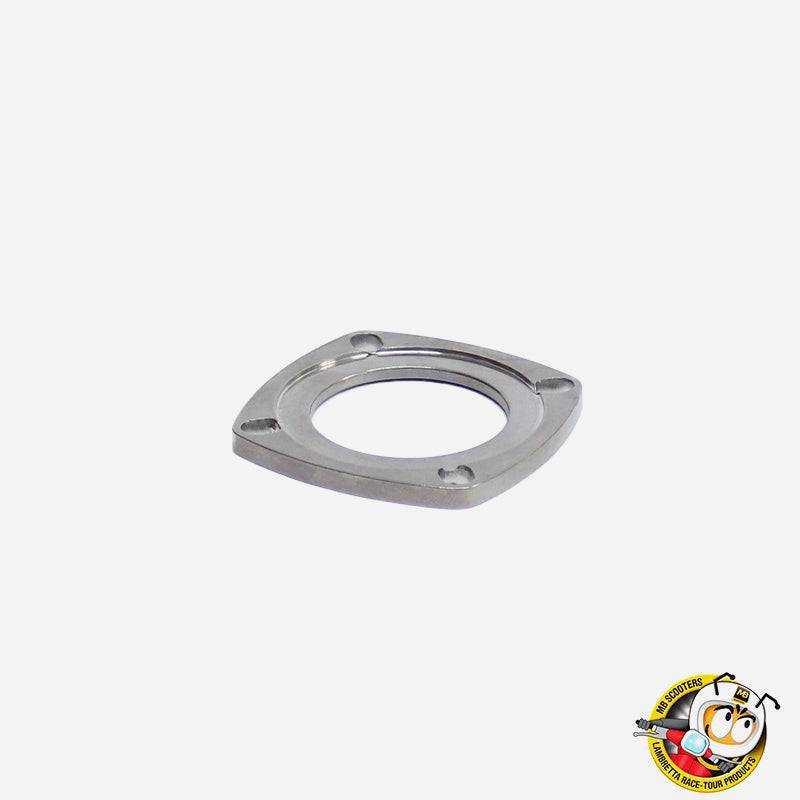

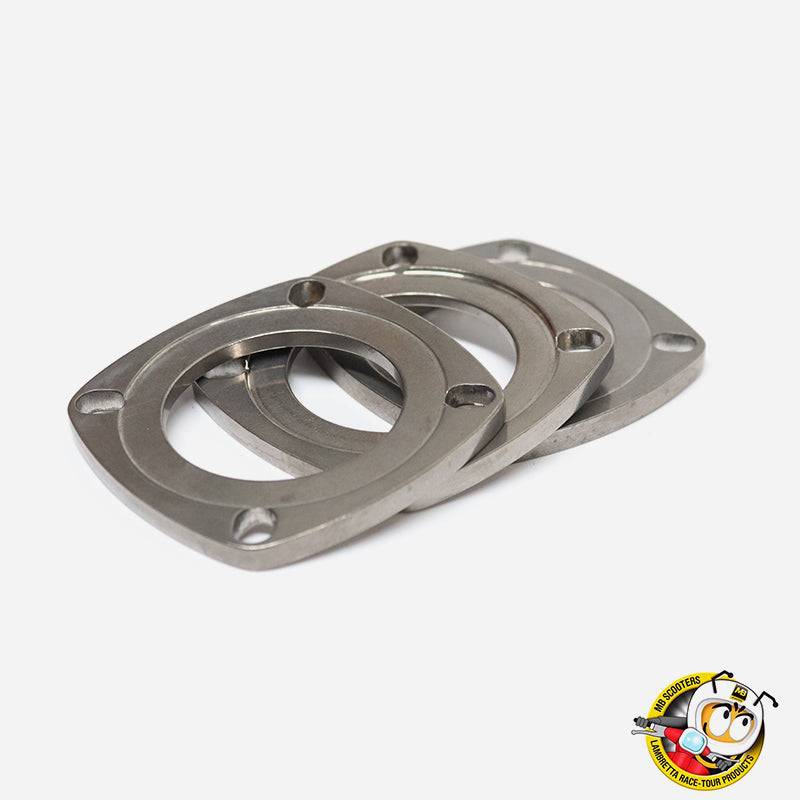

MB Scooters Stainless Steel Rear Hub Bearing Plate Set for all Lambretta Series 1 2 3 LI SX TV DL & GP models.

1st comes with a flat face one side and a recess of 0.3mm on the other.

2nd comes with a recess of 0.5mm one side and 1mm on the other side.

3rd comes with a recess of 0.9mm one one side and 1.2mm on th eother side.

These new plates are designed to get rid of the older shim and plate - you only fit this plate!

This design locates over the bearing making sure when it's tightened down the bearing stays in place.

This design has the 4 holes elongated to fit over old engines with bent out studs.

When you are building an engine, you do not know how high the machining is or how high the bearing is machined and how it will be. Using the standard shim and plate with a bearing that sticks up the plates bend and the studs pull to one side. These plates stop this happening.

This is a set ready to build an engine so you have no worry about the beariing position.

Top tip - use 6mm nyloc nuts and dont over tighten the plate, so the studs bend.
Top tip - ideally once tightened there should be a gap of 0.1 - 0.2mm from the shim to the casing.

This product will fit Lambretta models:

  • Lambretta Series 1 LI125, LI150.
  • Lambretta Series 2 LI125, LI150, TV175.
  • Lambretta Series 3 LI125, LI150, LI150 Special, 125 Special, SX150, SX200, TV175, TV200.
  • Lambretta DL/GP125, DL/GP150, DL/GP200.

Qty Needed 1.

Original Part Number 19030021.

Diagram Number 20.
