Scootopia Lambretta LIs SX TV DL & GP Large Engine Mount Cone Set (1 Pair)

£8.00 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Excess postage costs reimbursed to the customer

Product variants

Quantity

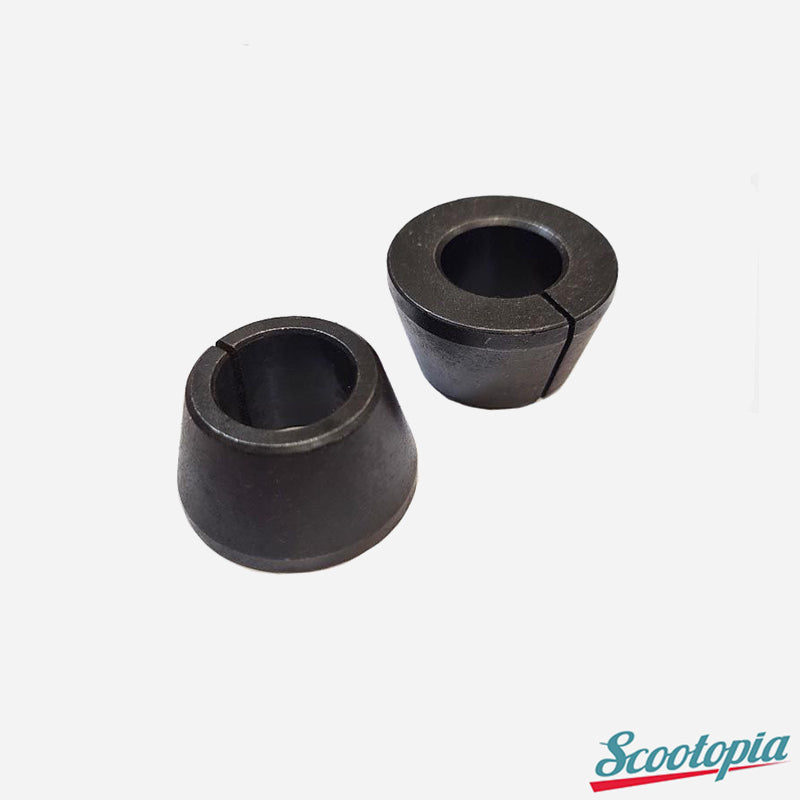

Scootopia Lambretta LI S1/S2/S3 SX TV DL GP Large Engine Mount Cone Set – Pair

Scootopia Large Engine Mount Cone Set, supplied as 1 pair, designed for Lambretta LI, SX, TV, DL & GP models.

These quality replacement Lambretta engine mount cones are designed to work with the large engine mount rubbers used on classic Lambretta models.

The engine mount cones are an important part of the rear engine mounting system, helping correctly locate and support the engine mount rubber within the frame and engine mounting assembly.

Manufactured by Scootopia, this pair of large engine mount cones is ideal when replacing worn, damaged or incorrect engine mount components during a Lambretta engine rebuild, restoration or engine mount replacement.

Using the correct engine mount cones is important for achieving the correct fit and operation of the engine mounts. The cones should work correctly with the corresponding large engine mount rubbers and frame mounting arrangement.

🔧 Key Features

Quality Scootopia reproduction
Large Lambretta engine mount cones
Supplied as 1 pair
Designed for large engine mount applications
Suitable for Lambretta LI, SX, TV, DL & GP models
Helps correctly locate the engine mount rubbers
Important part of the Lambretta engine mounting system
Ideal for engine rebuilds and restorations
Excellent replacement for worn or damaged original cones
Designed to be used with the correct large engine mount rubbers

🛠️ Fitment

Designed for compatible:

Lambretta LI
Lambretta SX
Lambretta TV
Lambretta DL
Lambretta GP

Suitable for large engine mount applications.

Please check your existing engine mount arrangement before ordering, particularly if your Lambretta has been modified or fitted with non-standard engine mounts.

🚀 Why Replace Your Lambretta Engine Mount Cones?

The engine mount cones are an important part of the Lambretta's rear engine mounting system, but they are often overlooked when replacing old engine mount rubbers.

Over many years of use, original components can become worn, corroded or damaged. Incorrect or badly fitted engine mount components can also affect the way the engine sits within the frame.

When rebuilding a Lambretta, it's therefore important to check the condition of the complete engine mounting system rather than simply replacing the rubber.

These Scootopia large engine mount cones provide a quality replacement when rebuilding the mounting system.

🔩 Engine Mount Cones & Rubbers Work Together

The engine mount cone and rubber are designed to work together as part of the complete engine mounting system.

The rubber provides the cushioning between the engine and frame, while the cone helps locate and retain the rubber correctly.

When replacing engine mounts, it's worth checking:

Engine mount rubbers
Engine mount cones
Engine mount spindle
Frame mounting points
Engine alignment
Condition of the engine mounting holes

A correctly assembled engine mount system helps ensure the engine is properly supported while allowing the rubber mounts to perform their job.

⚠️ Important Installation Advice

When fitting new Lambretta engine mounts, make sure the correct style of cone and rubber are being used together.

The engine mount spindle nuts should also not simply be tightened as hard as possible.

Over-tightening the spindle nuts can compress or damage the rubber engine mounts and prevent them from working correctly.

The cones should be correctly seated and the engine mount assembly installed according to the correct Lambretta setup.

If you're replacing the complete system, consider fitting new large engine mount rubbers at the same time rather than mixing old and new components.

📦 Perfect For

Lambretta engine rebuilds
Lambretta restorations
Replacing worn engine mount components
Replacing damaged engine mount cones
Fitting new large engine mount rubbers
Engine installation
Chassis rebuilds
Original-style restorations
Performance engine builds
Everyday road scooters

nes.

This product will fit Lambretta models:

Lambretta Series 3 LI150 Special, 125 Special, SX150, SX200, TV175, TV200.
Lambretta DL/GP125, DL/GP150, DL/GP200.

(Can be fitted to all models if converting to the Larger Engine Mounts)

Qty Needed 1pr.

Original Part Number 19710028.
