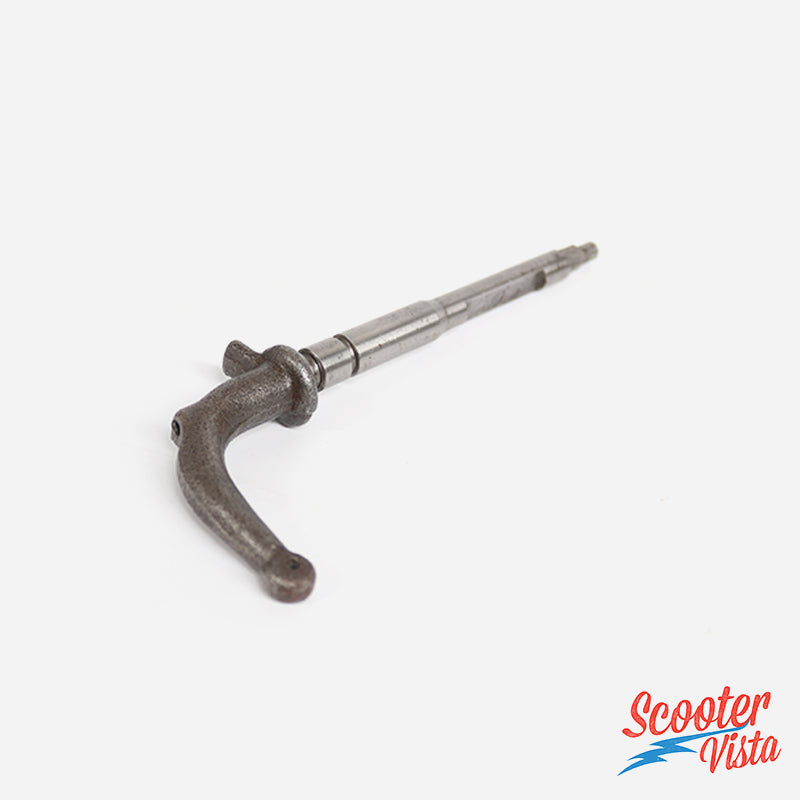

Vespa Spring Rally Super PX PE T5 Clutch Operating Arm (double seal)

Vespa Spring Rally Super PX PE T5 Clutch Operating Arm (double seal)

Regular price £14.00 GBP
Regular price Sale price £14.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Excess postage costs reimbursed to the customer

Vespa Spring Rally Super PX PE T5 Clutch Operating Arm (double seal)

double seal type clutch operating arm, suitable for a wide range of classic Vespa models including Rally, Super, PX, PE and T5.

The clutch operating arm is fitted to the clutch cover and converts movement from the clutch cable into movement of the clutch release mechanism. It is therefore an important part of the clutch assembly and needs to operate smoothly and seal correctly.

This double seal design provides improved sealing around the operating arm, helping to prevent gearbox oil escaping from the clutch cover. It is an excellent replacement when rebuilding a clutch cover or carrying out a full engine rebuild.

Clutch cover arm O-rings are available for a wide range of Vespa models including PX, T5, Super and Rally, making this an important area to inspect when servicing the clutch cover.


Fits Models

Suitable for a range of classic Vespa models, including:

  • Vespa Rally 180
  • Vespa Rally 200
  • Vespa Super
  • Vespa PX125
  • Vespa PX150
  • Vespa PX200
  • Vespa PE
  • Vespa T5

Double seal type clutch operating arm.

Please check your existing clutch cover and operating arm arrangement before ordering, particularly on earlier models or engines that have been modified.


Features

  • Double seal type design
  • Quality replacement clutch operating arm
  • Suitable for Rally, Super, PX, PE and T5 models
  • Helps provide a better seal at the clutch cover
  • Smooth clutch operating movement
  • Ideal for clutch cover rebuilds
  • Excellent replacement for worn or damaged arms

Why Is the Clutch Operating Arm Important?

The clutch operating arm may be a relatively small component, but it plays an important role in the Vespa clutch system.

When you pull the clutch lever, the clutch cable moves the operating arm. The arm then operates the clutch release mechanism, allowing the clutch to disengage.

A worn or damaged arm can result in:

  • Excessive clutch lever movement
  • Poor clutch disengagement
  • Difficult gear changes
  • Oil leaks around the clutch cover
  • Excessive play in the clutch mechanism

Replacing the operating arm while rebuilding the clutch cover is a sensible way of ensuring the clutch mechanism is working correctly.


The Advantage of the Double Seal Design

This version uses a double seal arrangement, providing additional sealing around the clutch operating arm.

The operating arm passes through the clutch cover, so maintaining a good seal in this area is important for preventing gearbox oil from escaping.

If you're already rebuilding the clutch cover, replacing the operating arm and seals at the same time can save having to dismantle the assembly again later.


Perfect For

  • Vespa engine rebuilds
  • Clutch rebuilds
  • Clutch cover servicing
  • Vespa restorations
  • Replacing worn clutch components
  • Preventative maintenance
  • Touring and everyday scooters
